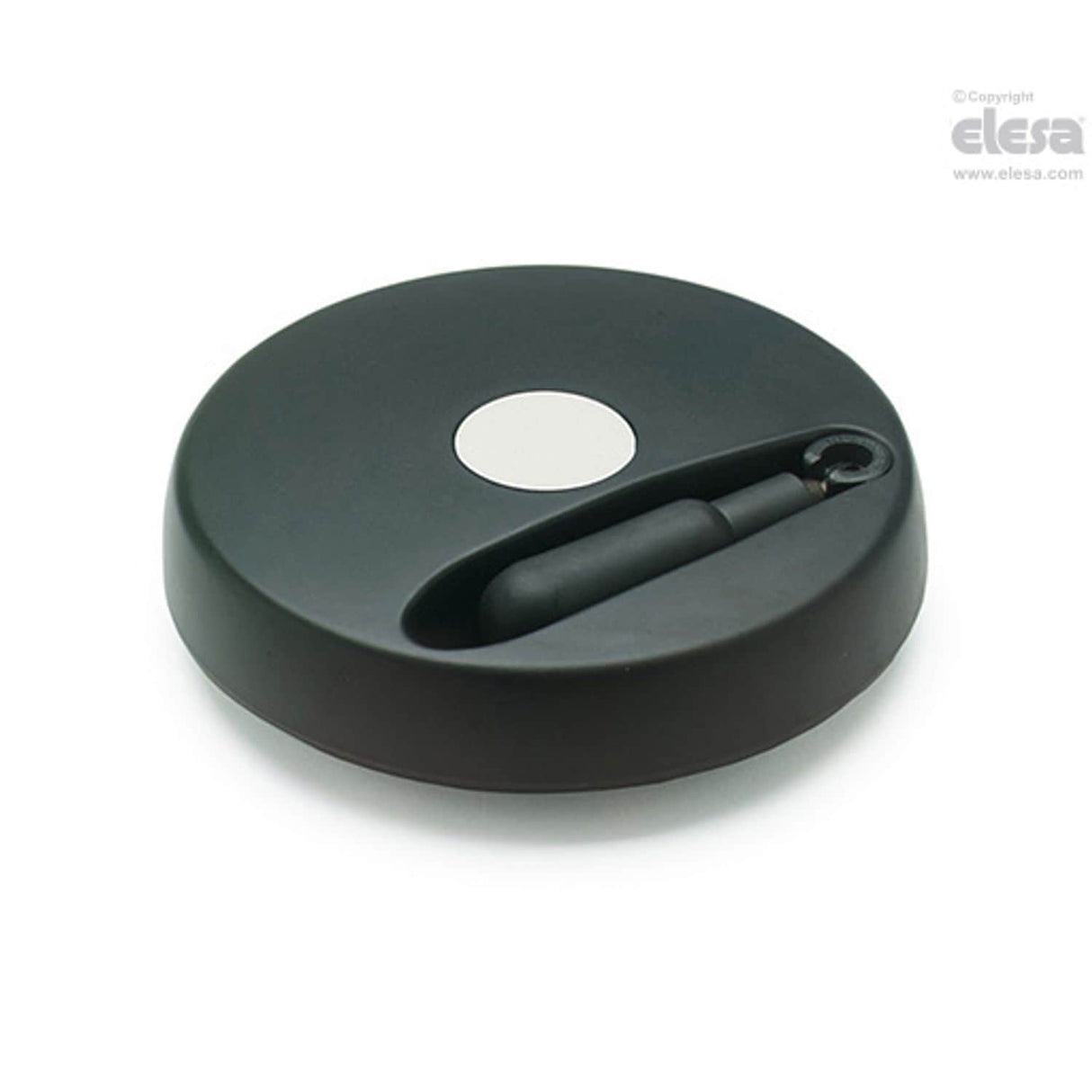

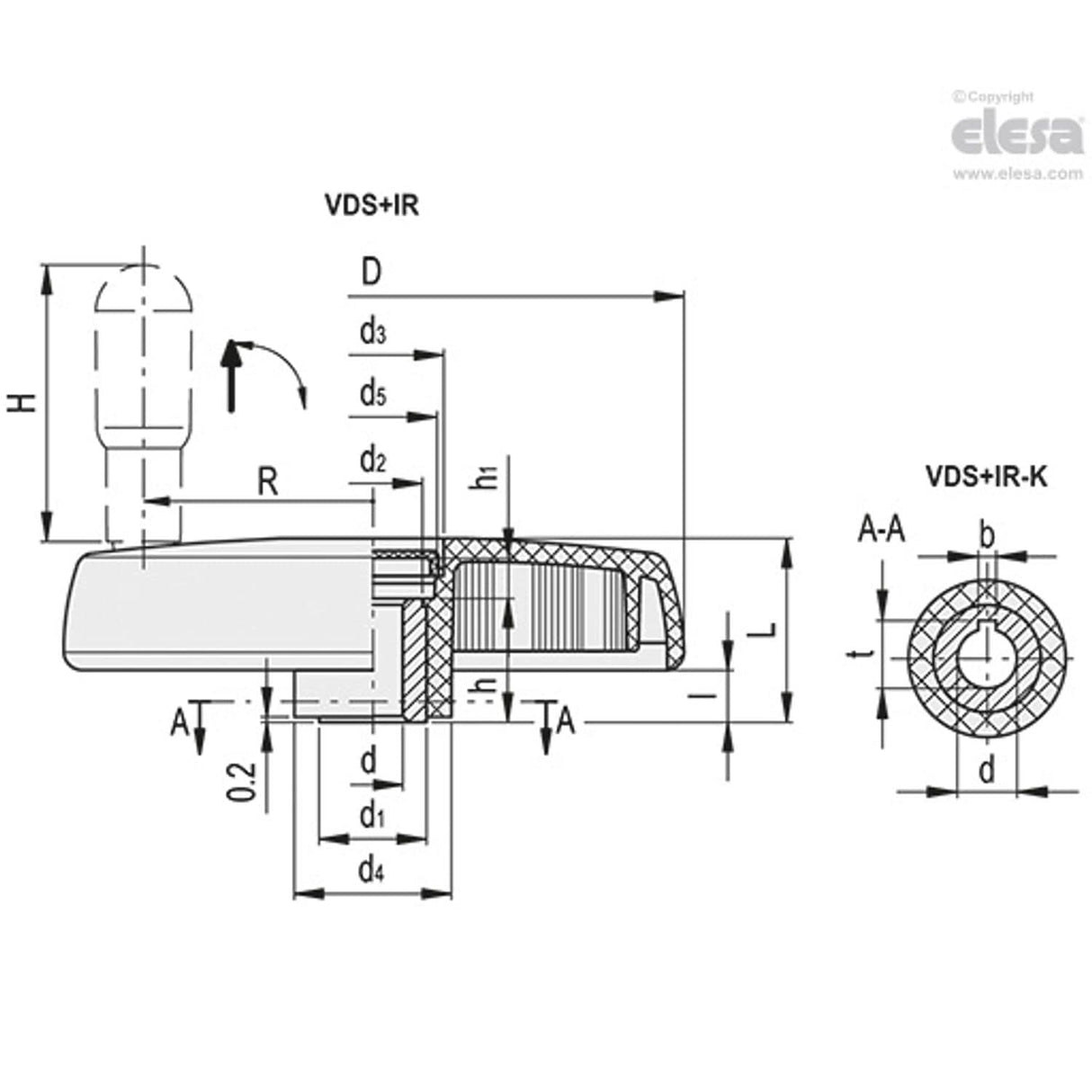

VDS. Solid handwheels, Technopolymer, Fold-away handle For product drawing and dimensions refer to pdf Item data sheet.
| d1 | 18 |
| H | 45 |
| d5 | 13.5 |
| MFR Part No. | VDS.80+IR-A10 |
| L | 38 |
| d4 | 25 |
| d3 | 16.5 |
| L# | 6J |
| R | 28 |
| d2 | 16 |
| D | 83 |
| C# | 34Nm |
| h1 | 3.5 |
| d(H7) | 10 |
| Diameter | 83mm |
| l | 18.5 |
| Weight | 112g |
| h | 17 |
