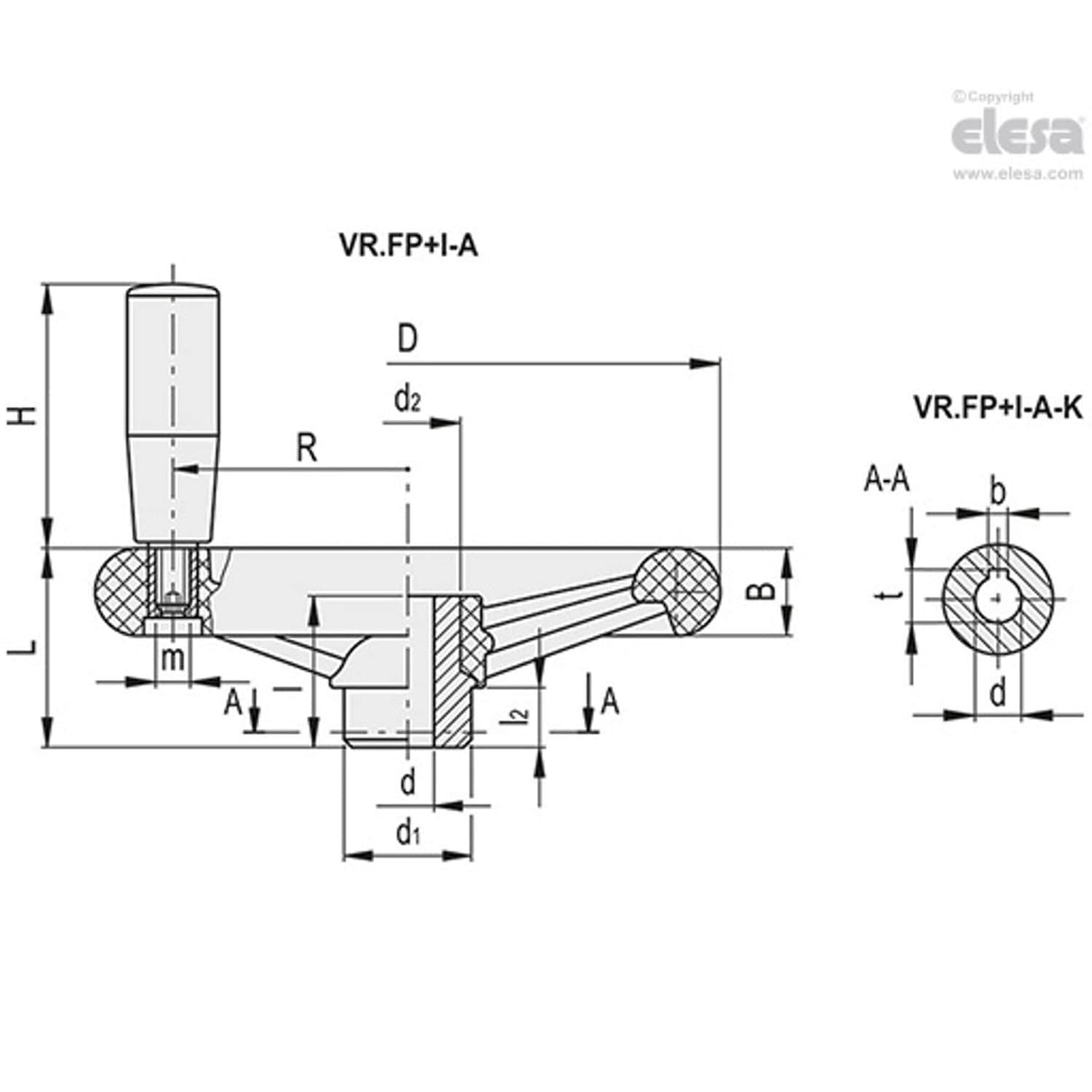

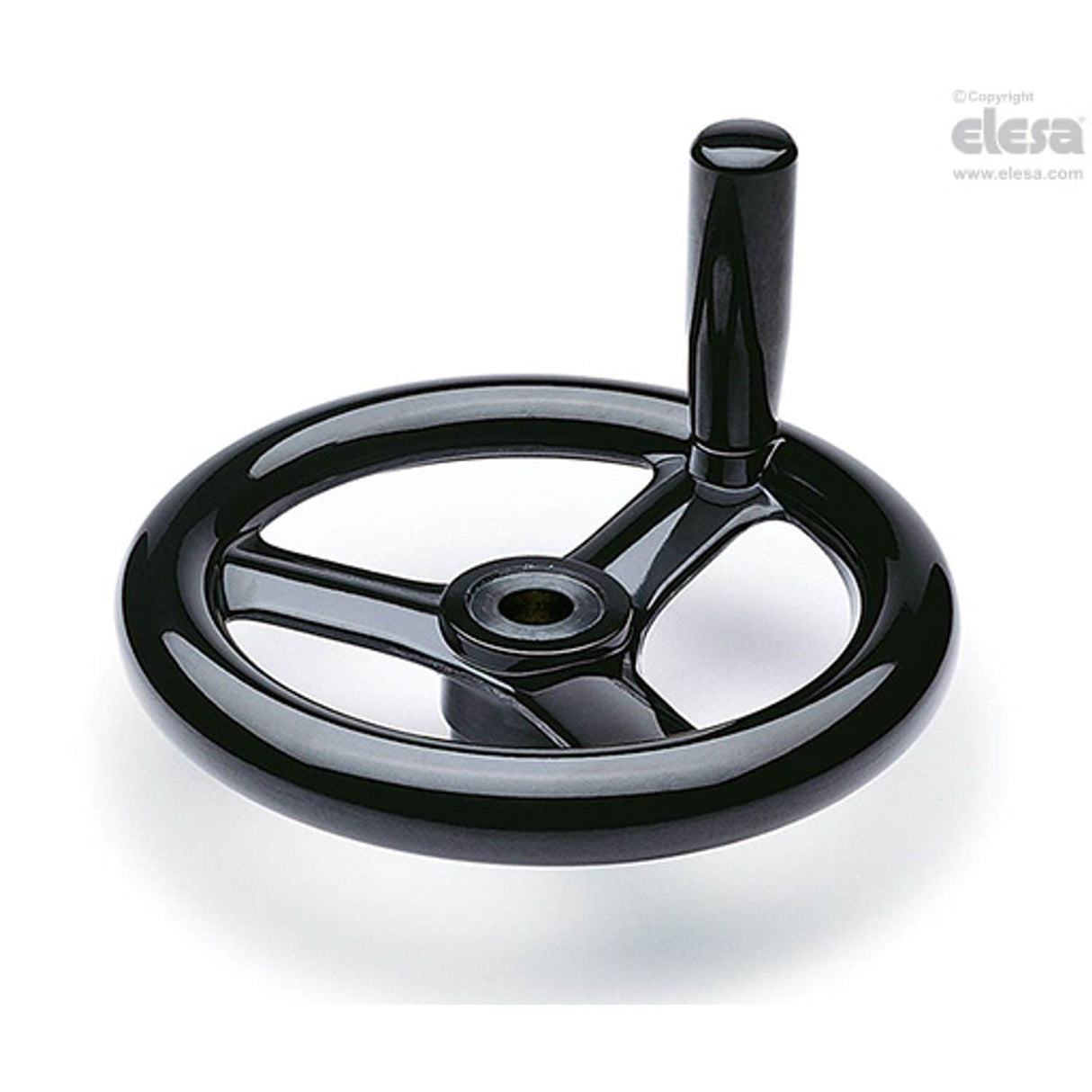

VR.FP Spoked handwheels, Duroplast, steel hub, Revolving handle, drilled hub For product drawing and dimensions refer to pdf Item data sheet.
| D | 98 |
| R | 37 |
| Weight | 222g |
| C# | 67Nm |
| l2 | 12 |
| H | 40 |
| d2 | 20 |
| m | M6 |
| l | 36 |
| L | 40 |
| b | 4 |
| t | 13.8 |
| d1 | 24 |
| MFR Part No. | VR.100 FP+I-A12-K |
| Diameter | 98mm |
| B | 14 |
| d(H9) | 12 |
| L# | 5J |
