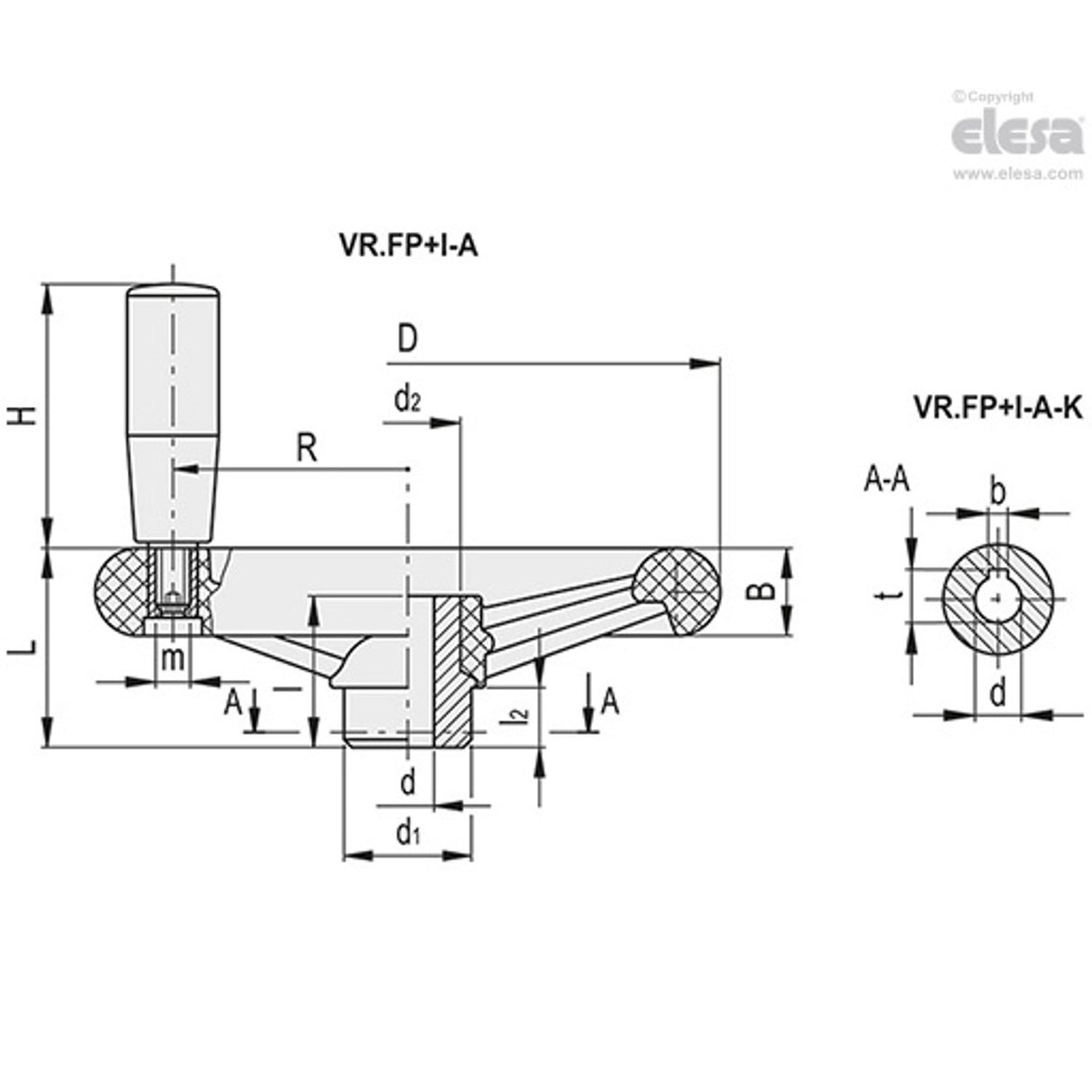

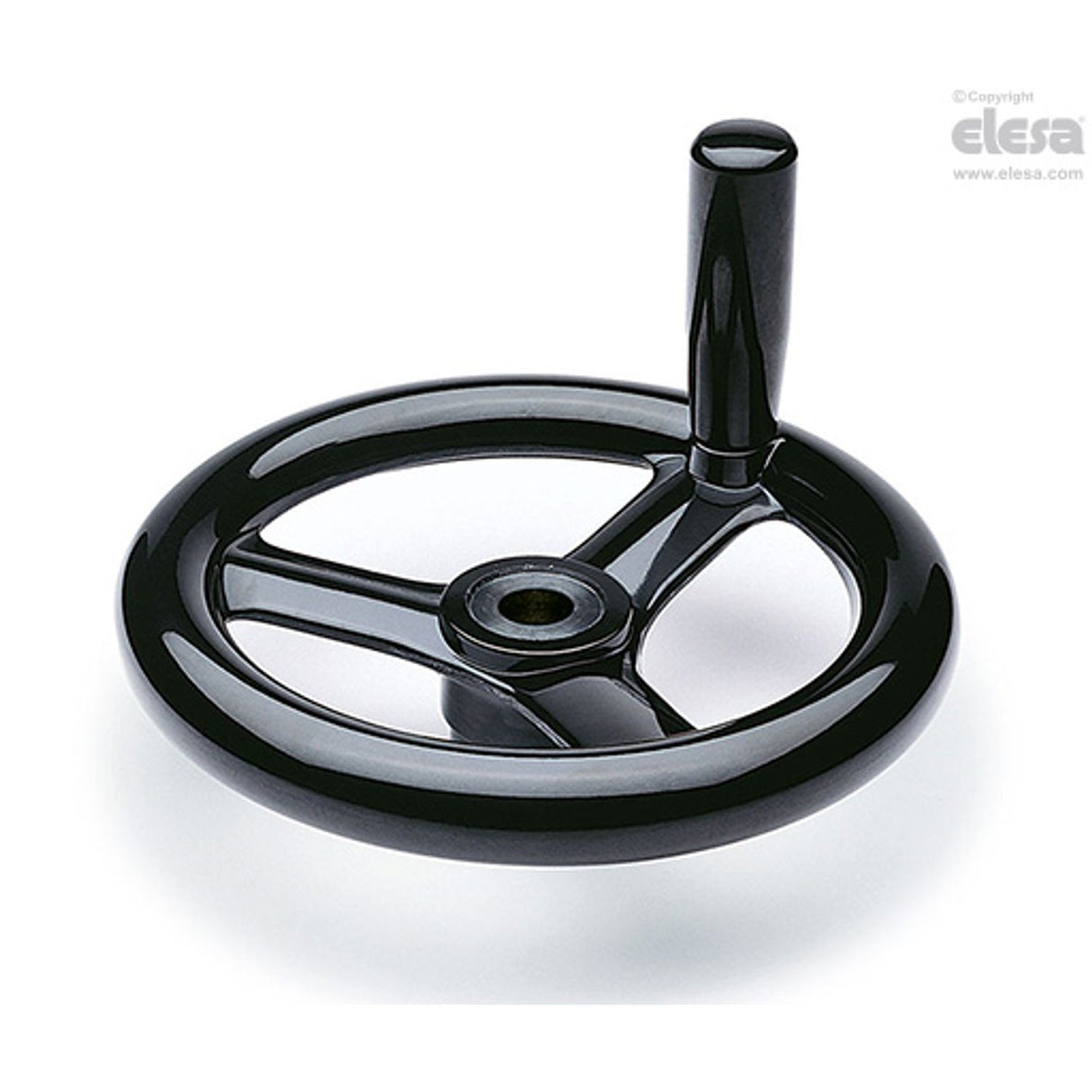

VR.FP Spoked handwheels, Duroplast, steel hub, Revolving handle, drilled hub For product drawing and dimensions refer to pdf Item data sheet.
| L# | 12J |
| Weight | 454g |
| Diameter | 139mm |
| t | 18.3 |
| MFR Part No. | VR.140 FP+I-A16 |
| d(H7) | 16 |
| l | 38 |
| C# | 165Nm |
| l2 | 15 |
| d2 | 24 |
| b | 5 |
| d1 | 32 |
| H | 65 |
| m | M8 |
| B | 20 |
| L | 47 |
| D | 139 |
| R | 53 |
