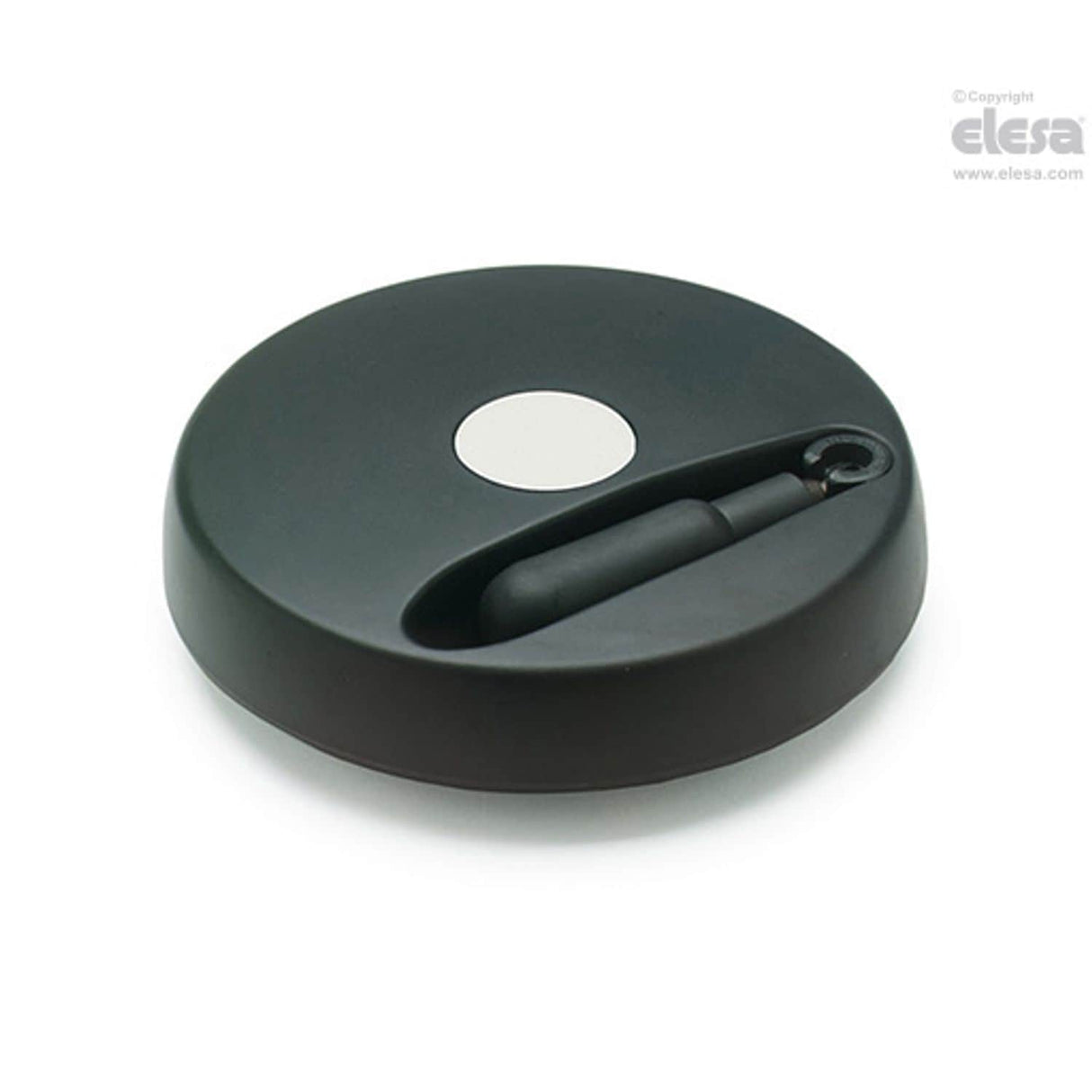

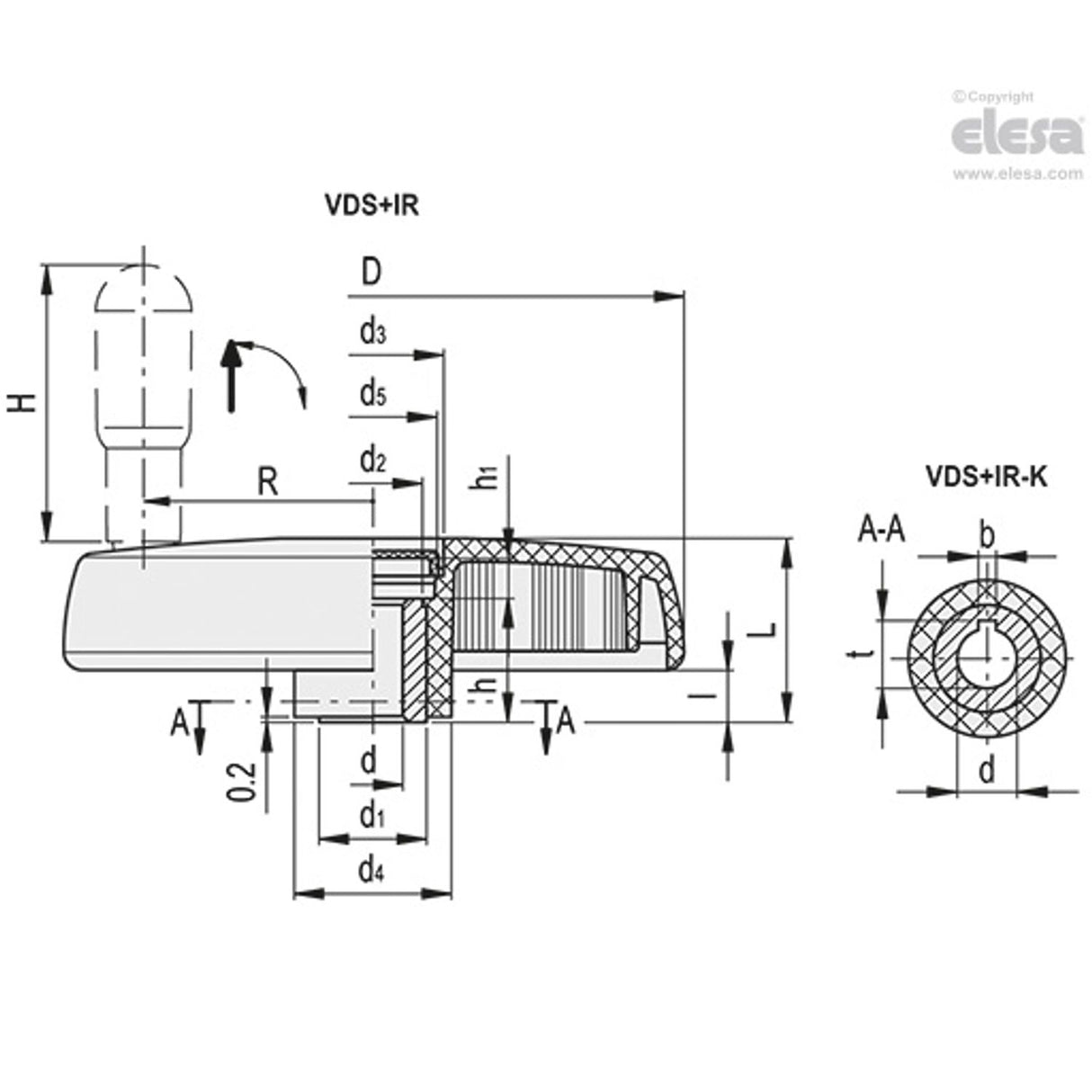

VDS. Solid handwheels, Technopolymer, Fold-away handle For product drawing and dimensions refer to pdf Item data sheet.
| d3 | 27 |
| D | 102 |
| d(H7) | 8 |
| l | 10 |
| C# | 60Nm |
| d1 | 22 |
| Diameter | 102mm |
| MFR Part No. | VDS.100+IR-A8 |
| d4 | 30 |
| d2 | 20 |
| Weight | 175g |
| L | 34 |
| L# | 14J |
| h | 22 |
| d5 | 25 |
| R | 38 |
| H | 45 |
| h1 | 9 |
