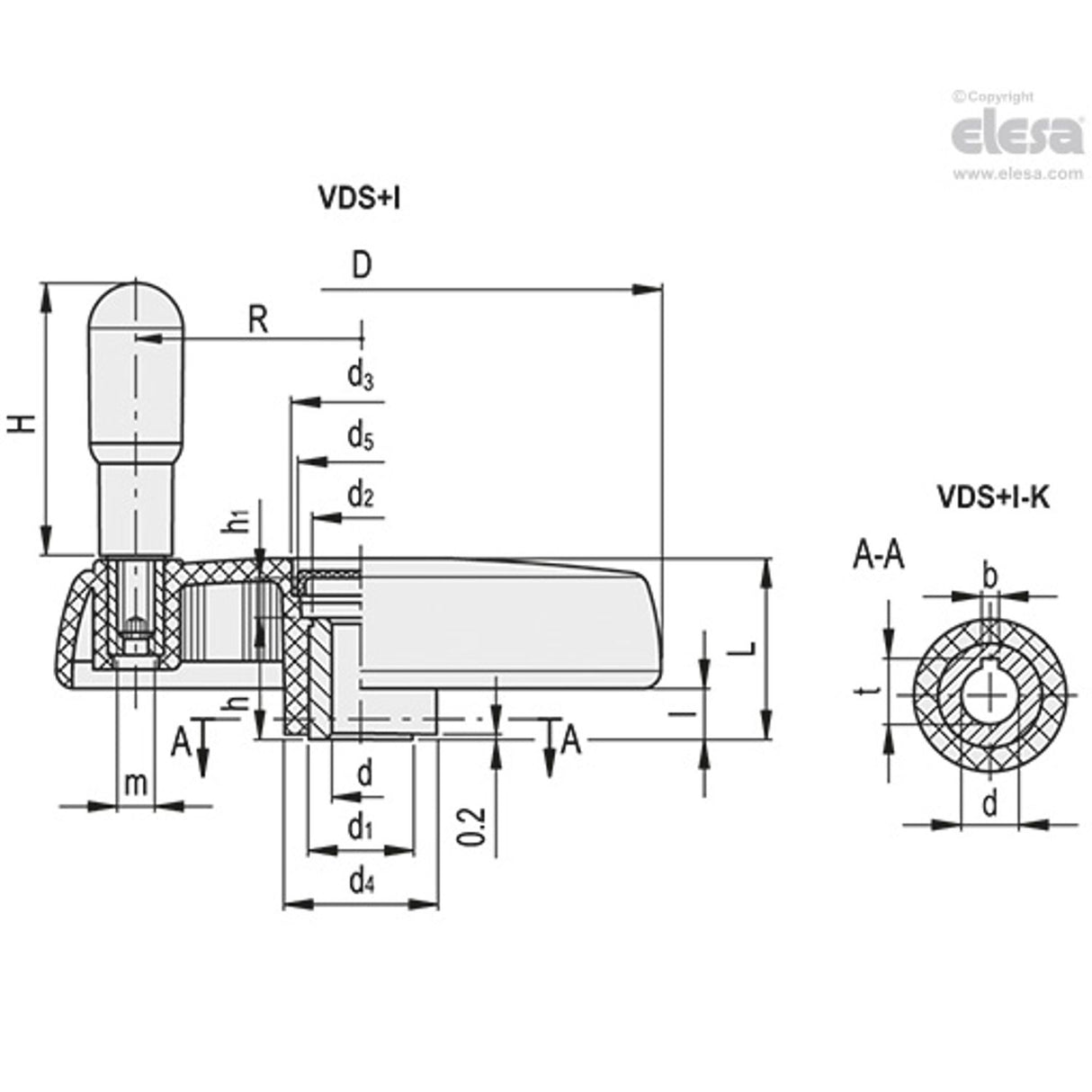

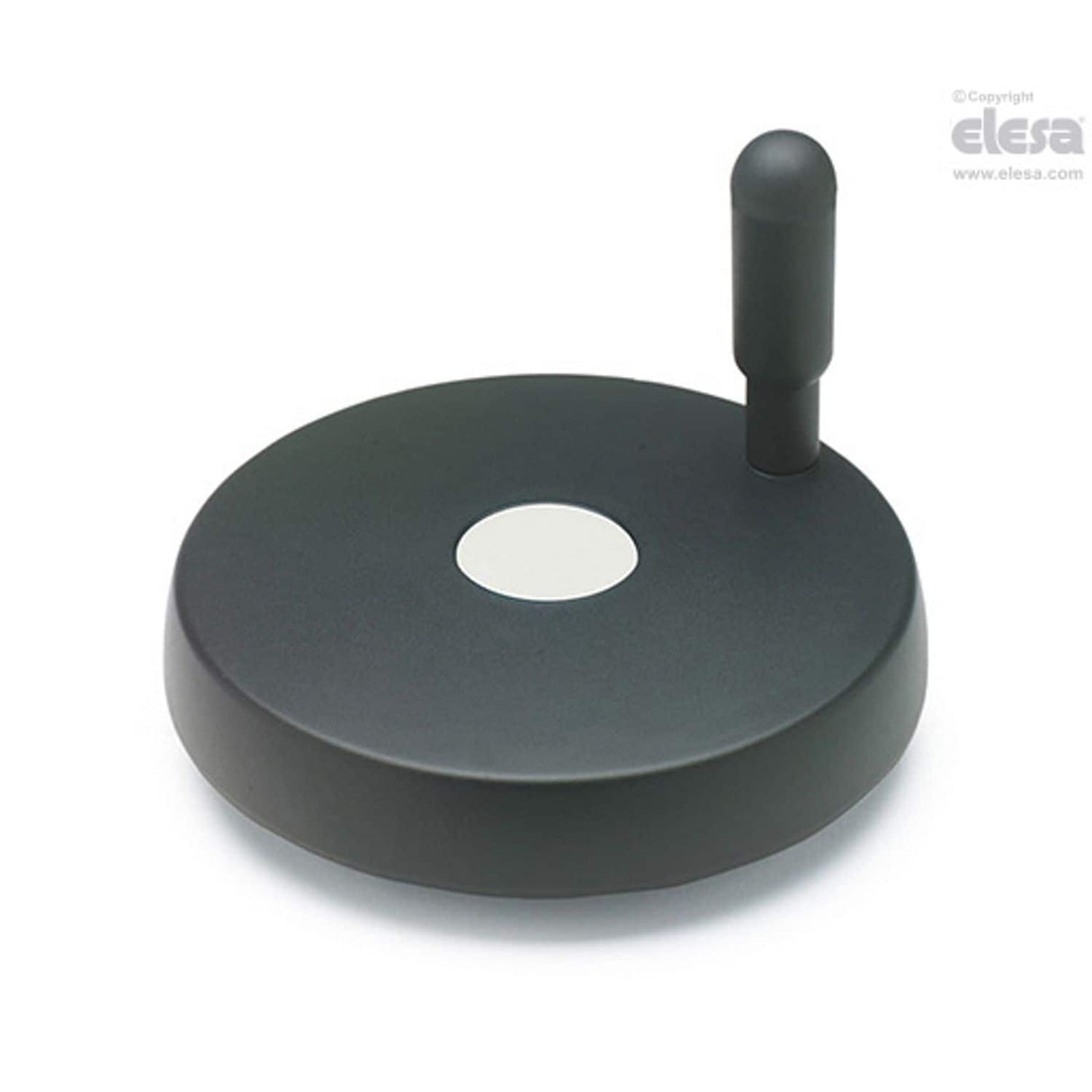

VDS. Solid handwheels, Technopolymer, Revolving handle For product drawing and dimensions refer to pdf Item data sheet.
| Diameter | 125mm |
| R | 49 |
| d4 | 35 |
| d2 | 24 |
| d1 | 26 |
| d5 | 28 |
| h | 27 |
| C# | 125Nm |
| h1 | 11 |
| d(H7) | 8 |
| L# | 25J |
| d3 | 31 |
| l | 11 |
| D | 125 |
| Weight | 268g |
| MFR Part No. | VDS.125+I-A8 |
| m | M6 |
| L | 39.5 |
| H | 60 |
