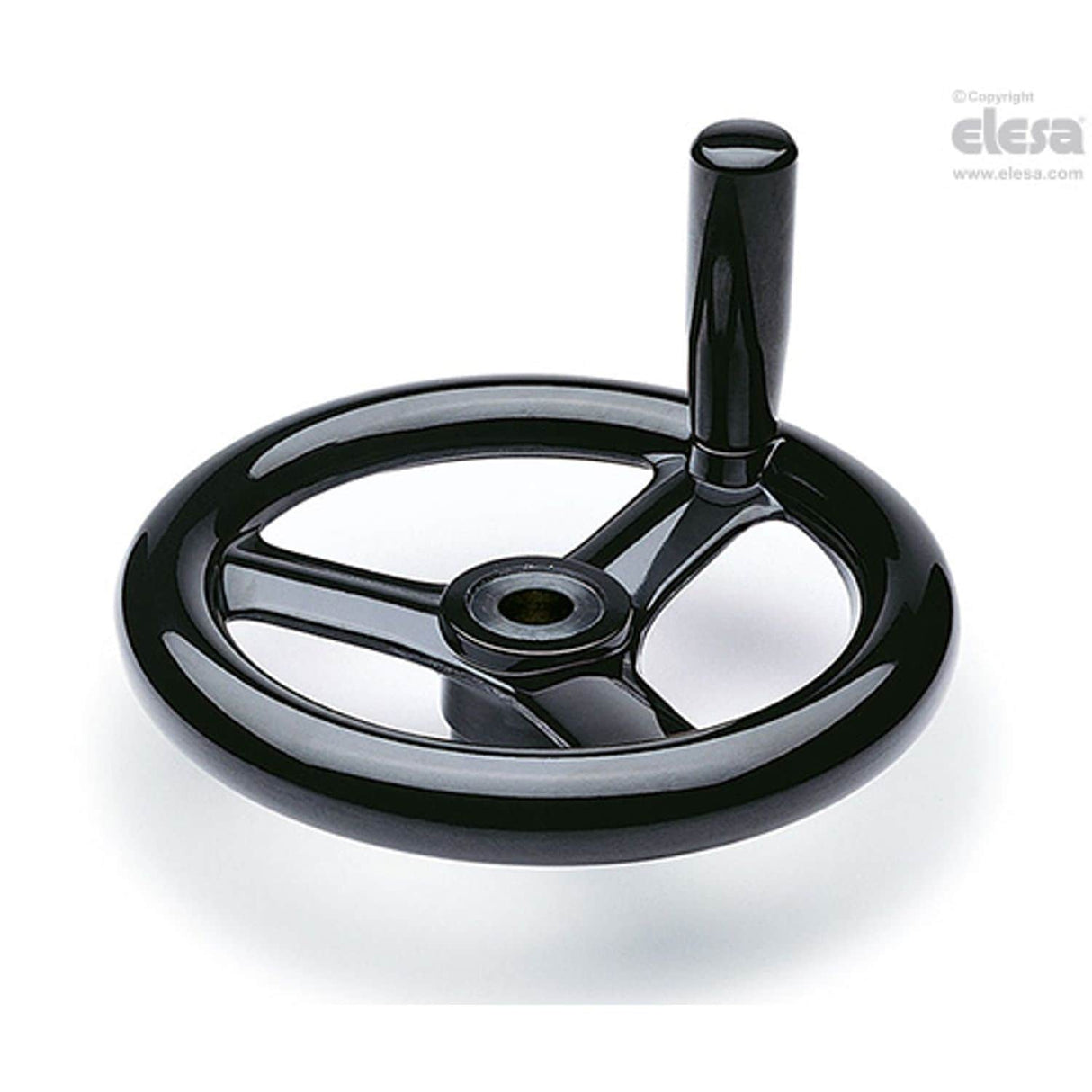

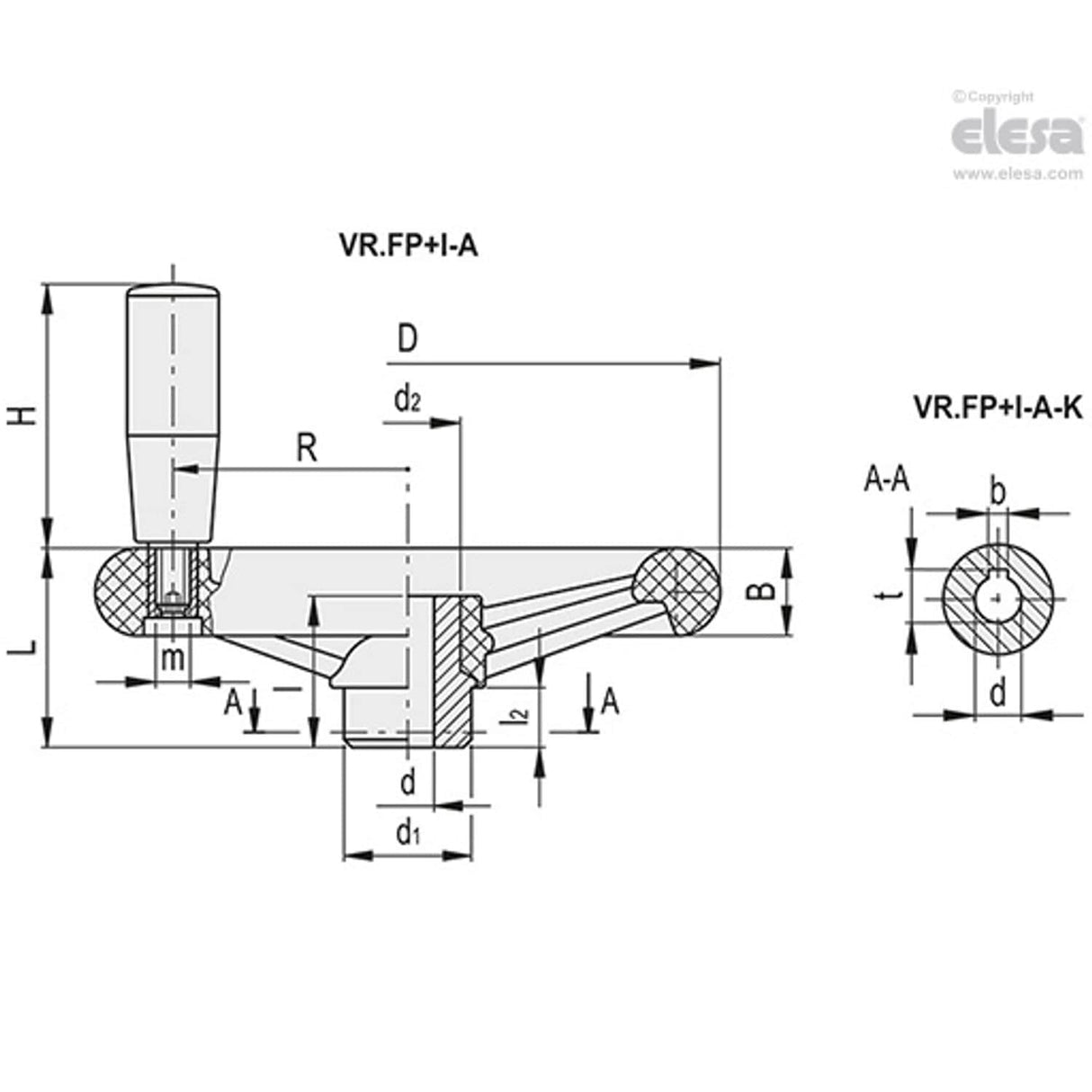

VR.FP Spoked handwheels, Duroplast, steel hub, Revolving handle, drilled hub For product drawing and dimensions refer to pdf Item data sheet.
| H | 80 |
| m | M10 |
| l | 43 |
| d1 | 40 |
| L# | 15J |
| d2 | 31 |
| D | 180 |
| R | 68 |
| C# | 280Nm |
| b | 5 |
| l2 | 15 |
| B | 24 |
| t | 18.3 |
| Diameter | 180mm |
| MFR Part No. | VR.180 FP+I-A16-K |
| L | 56 |
| d(H9) | 16 |
| Weight | 794g |
