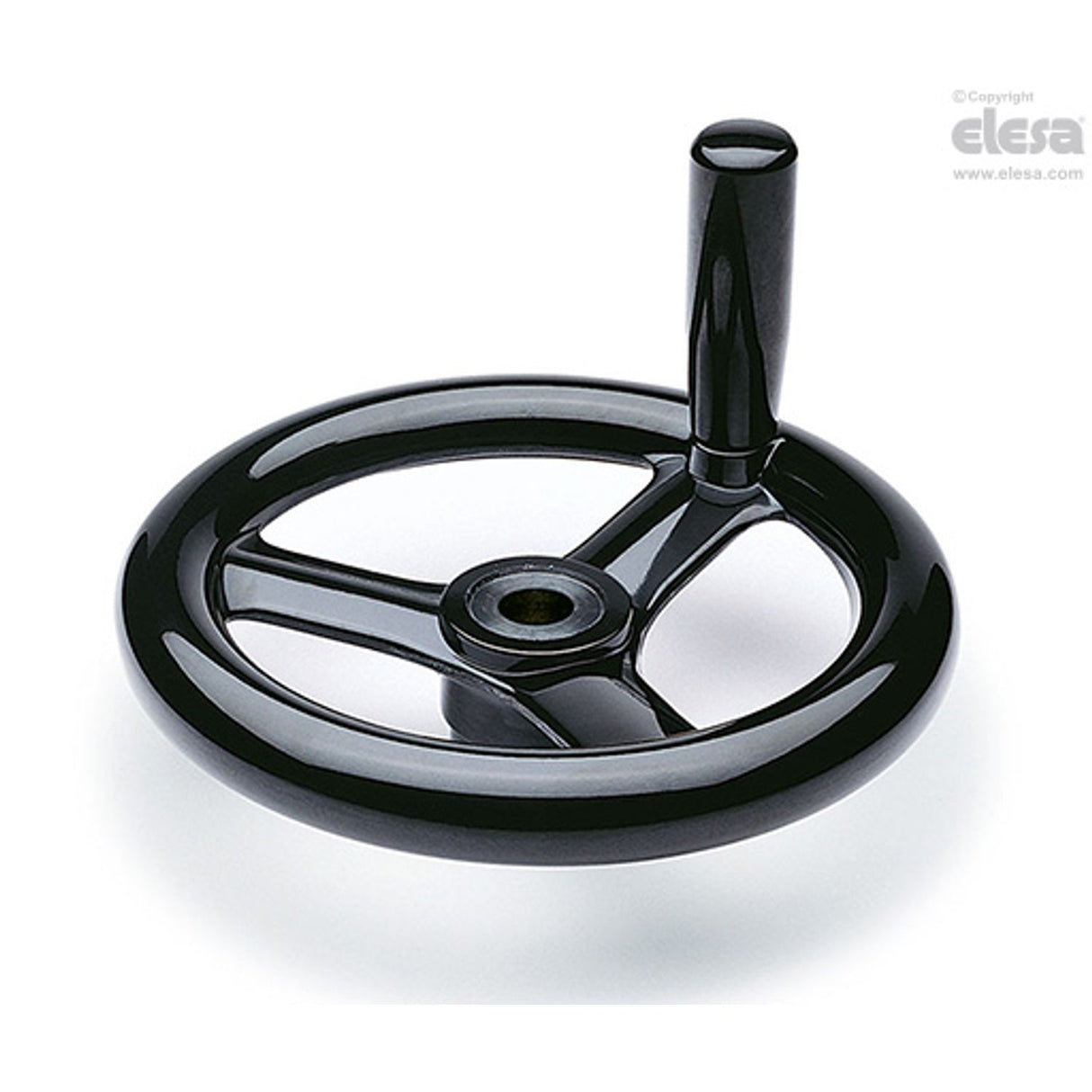

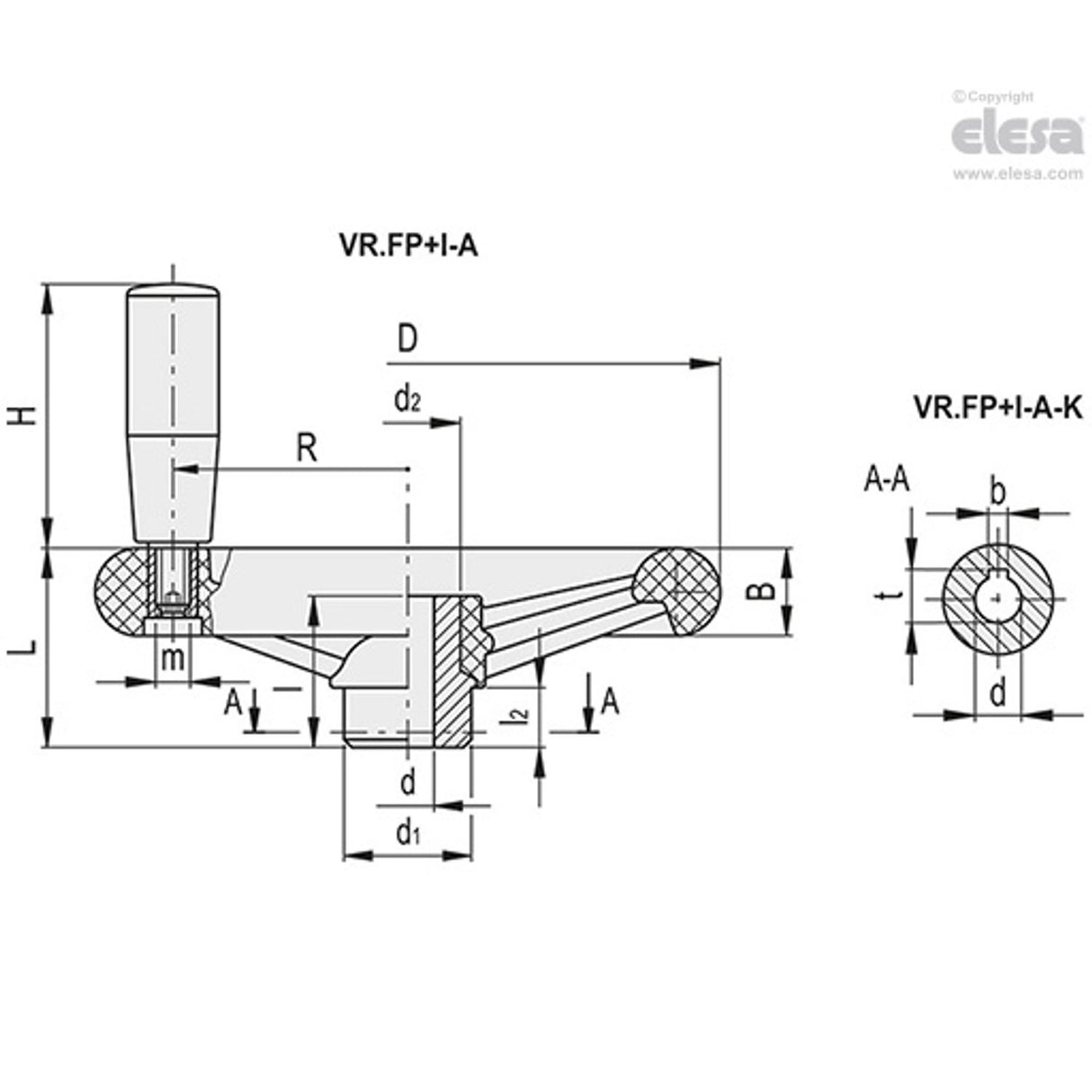

VR.FP Spoked handwheels, Duroplast, steel hub, Revolving handle, drilled hub For product drawing and dimensions refer to pdf Item data sheet.
| d(H7) | 20 |
| Weight | 842g |
| B | 26 |
| D | 198 |
| d1 | 40 |
| MFR Part No. | VR.200 FP+I-A20 |
| d2 | 30.5 |
| C# | 300Nm |
| l | 43 |
| L | 57 |
| R | 76 |
| Diameter | 198mm |
| t | 24.8 |
| m | M10 |
| L# | 16J |
| b | 6 |
| H | 80 |
| l2 | 15 |
