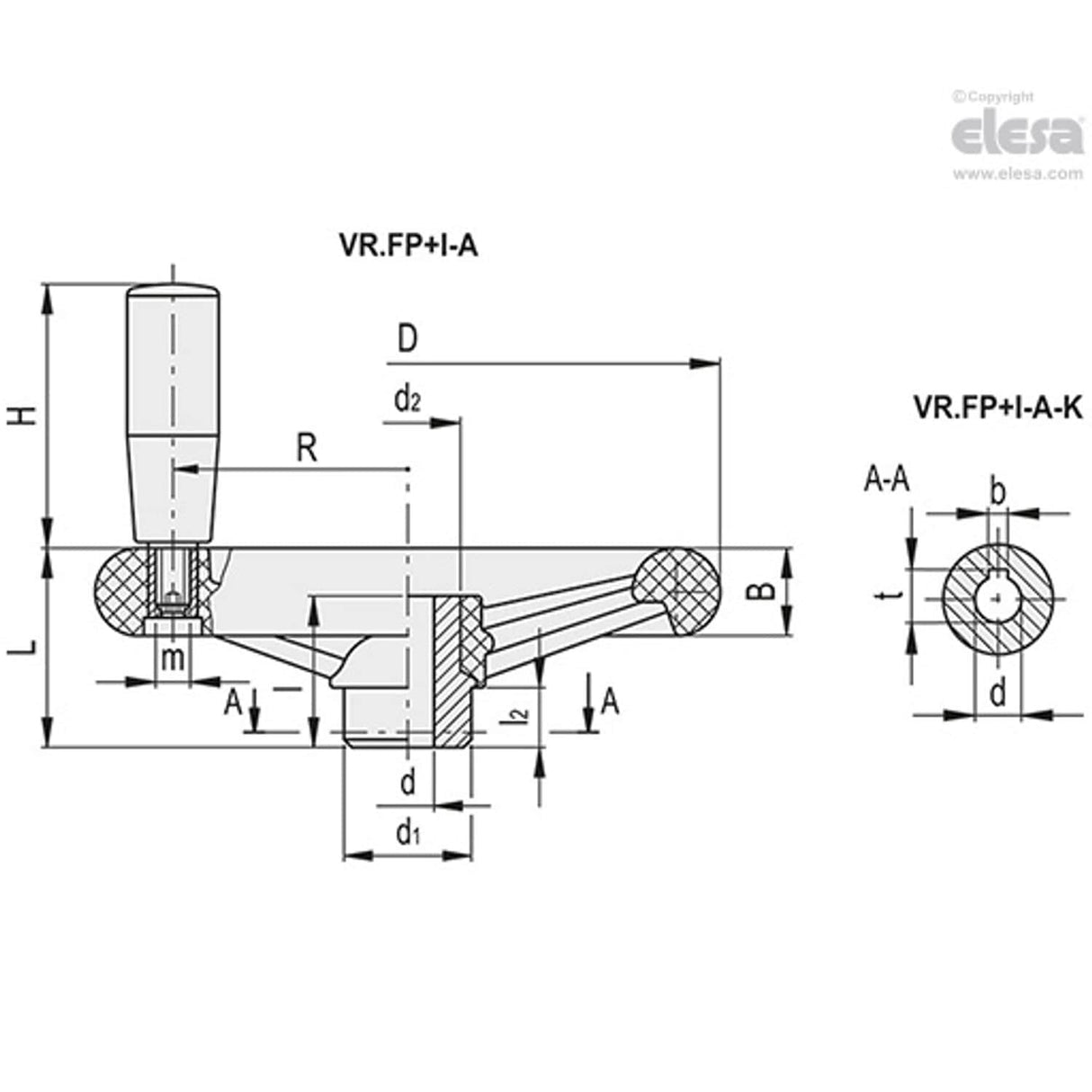

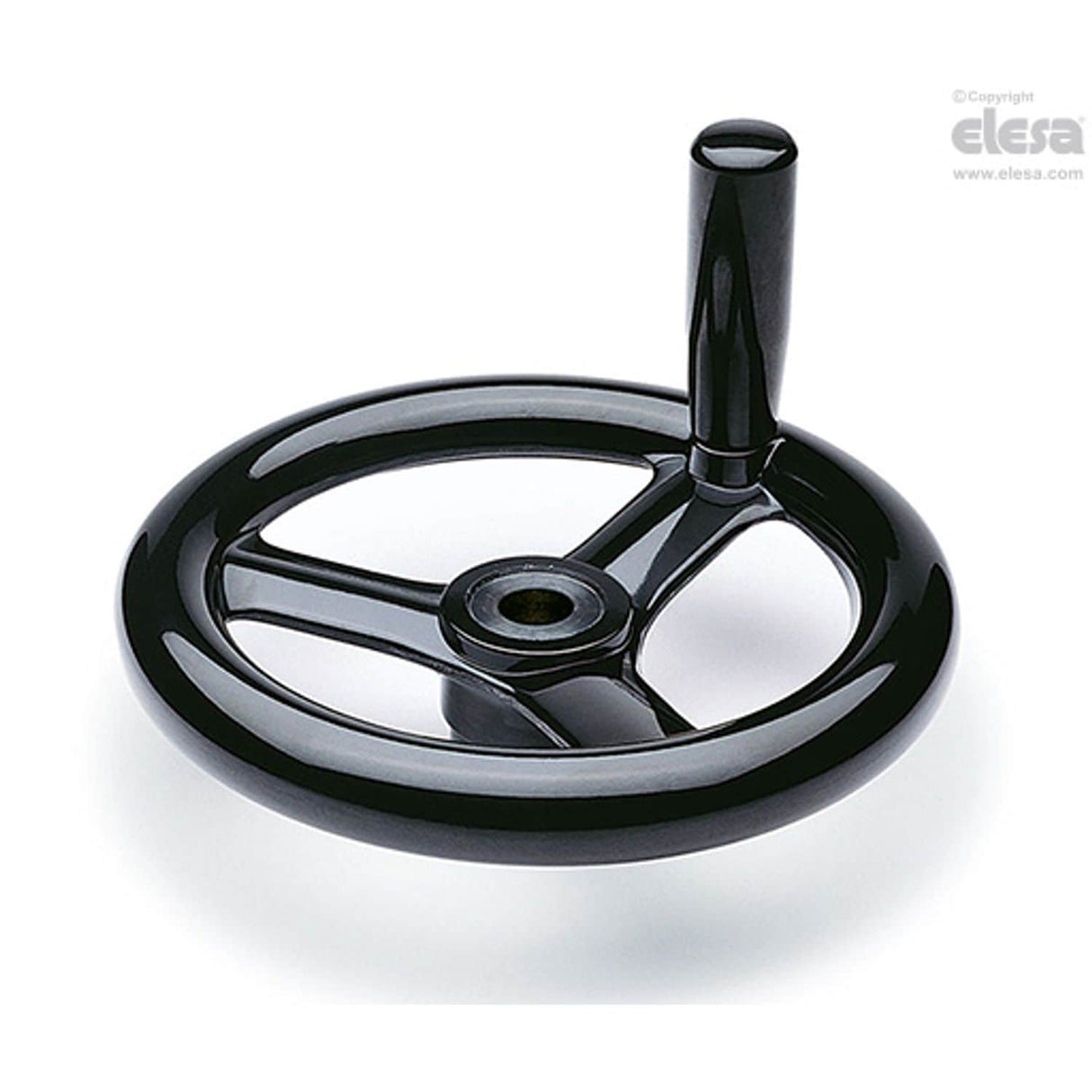

VR.FP Spoked handwheels, Duroplast, steel hub, Revolving handle, drilled hub For product drawing and dimensions refer to pdf Item data sheet.
| m | M10 |
| d(H9) | 24 |
| Diameter | 247mm |
| b | 8 |
| C# | 405Nm |
| l | 44 |
| B | 30 |
| R | 98 |
| D | 247 |
| d1 | 49 |
| L | 66 |
| H | 90 |
| d2 | 38 |
| MFR Part No. | VR.250 FP+I-A24-K |
| l2 | 15 |
| L# | 19J |
| t | 27.3 |
| Weight | 1350g |
