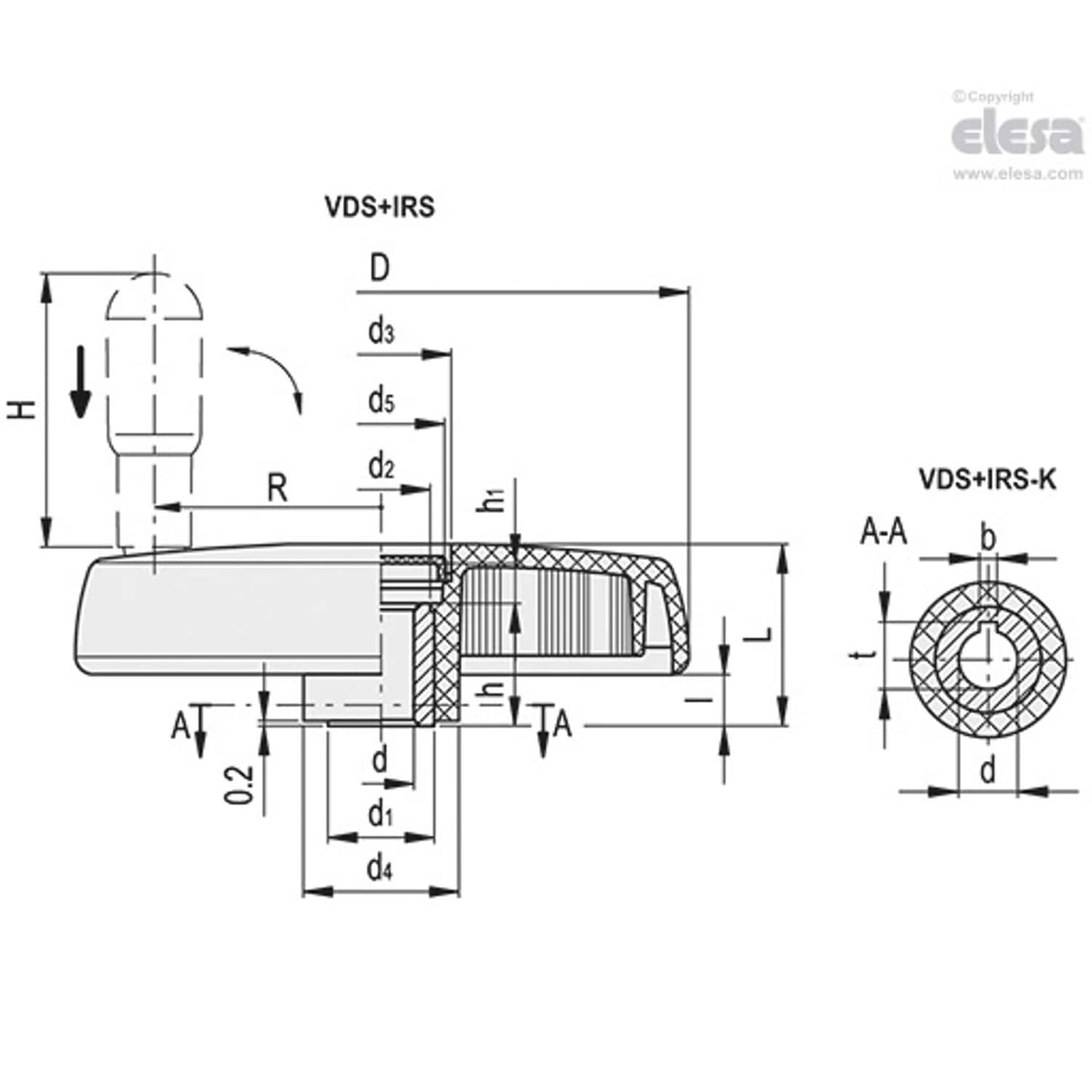

VDS. Solid handwheels, Technopolymer, Safety fold-away handle For product drawing and dimensions refer to pdf Item data sheet.
| H | 65 |
| d3 | 34 |
| d2 | 24 |
| t | 16.3 |
| L | 44 |
| b | 5 |
| R | 56.5 |
| d(H9) | 14 |
| d4 | 38 |
| D | 150 |
| h1 | 10 |
| d5 | 30 |
| l | 12 |
| Weight | 355g |
| h | 30 |
| C# | 180Nm |
| MFR Part No. | VDS.150+IRS-SST-14-K |
| Diameter | 150mm |
| L# | 15J |
| d1 | 26 |
