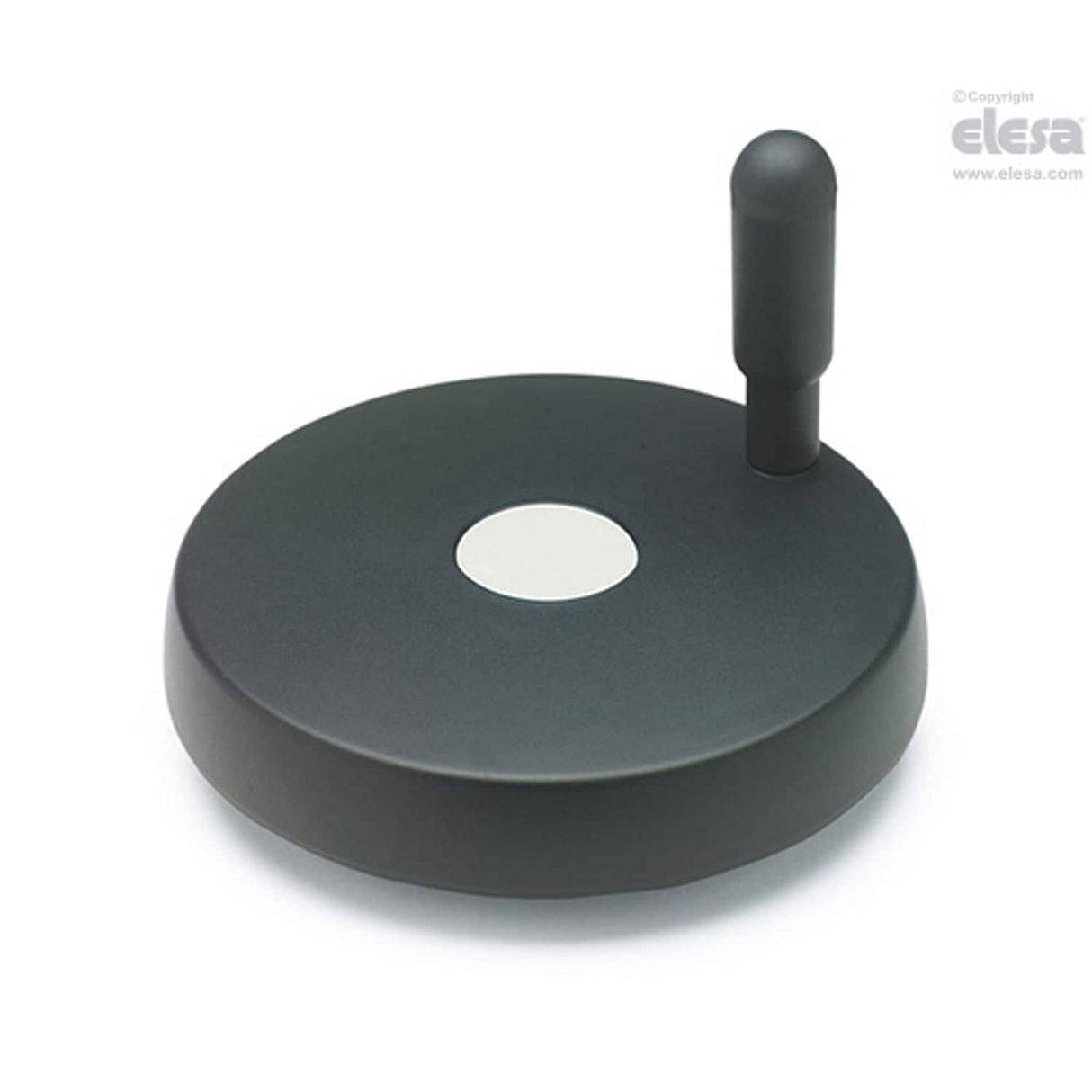

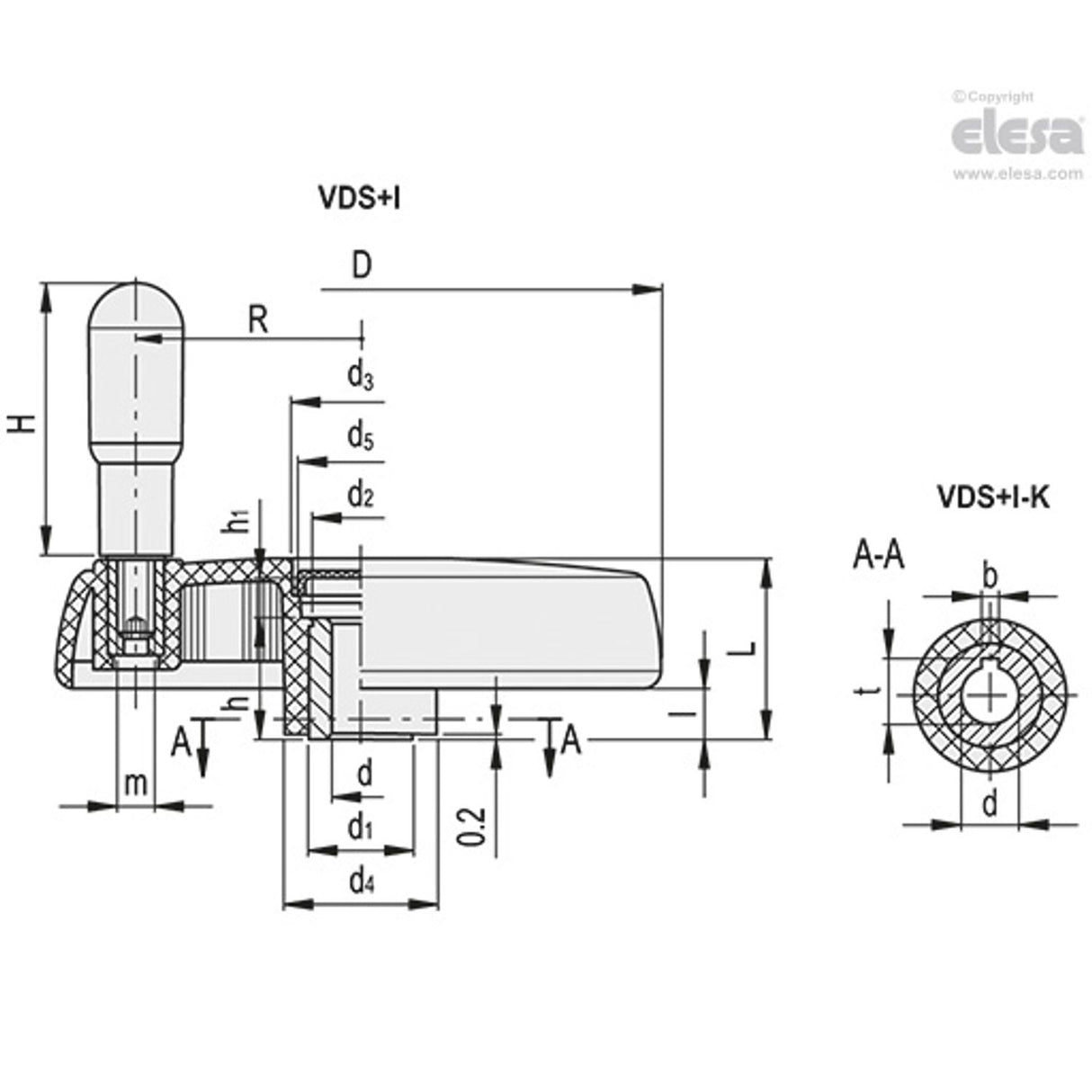

VDS. Solid handwheels, Technopolymer, Revolving handle For product drawing and dimensions refer to pdf Item data sheet.
| L | 49 |
| MFR Part No. | VDS.175+I-A20-K |
| l | 12 |
| d2 | 33 |
| Diameter | 176mm |
| d(H9) | 20 |
| b | 6 |
| Weight | 488g |
| D | 176 |
| R | 70 |
| H | 80 |
| C# | 195Nm |
| d4 | 44 |
| L# | 26J |
| d5 | 35 |
| m | M10 |
| h | 28 |
| d1 | 35 |
| t | 22.8 |
| d3 | 39 |
| h1 | 16 |
