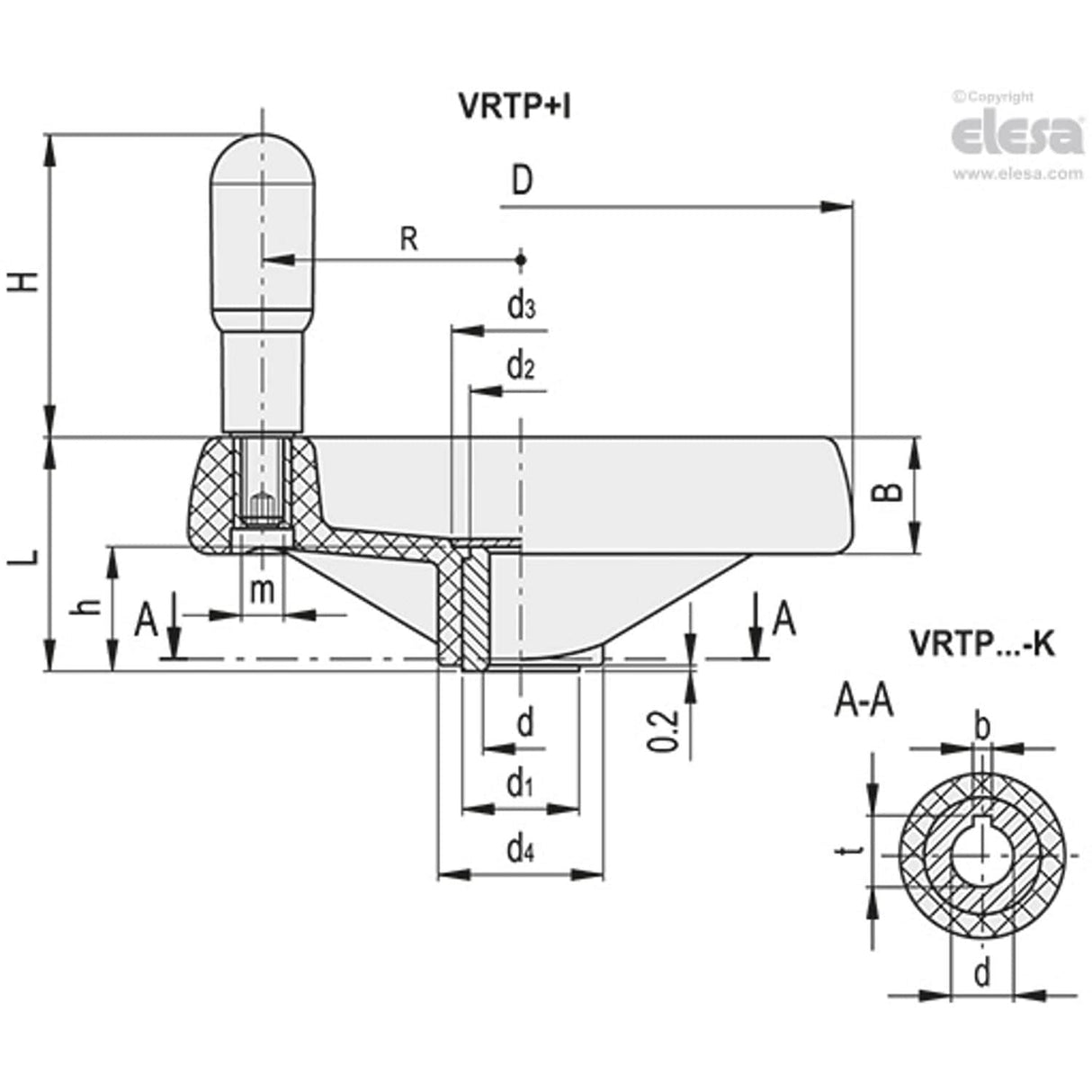

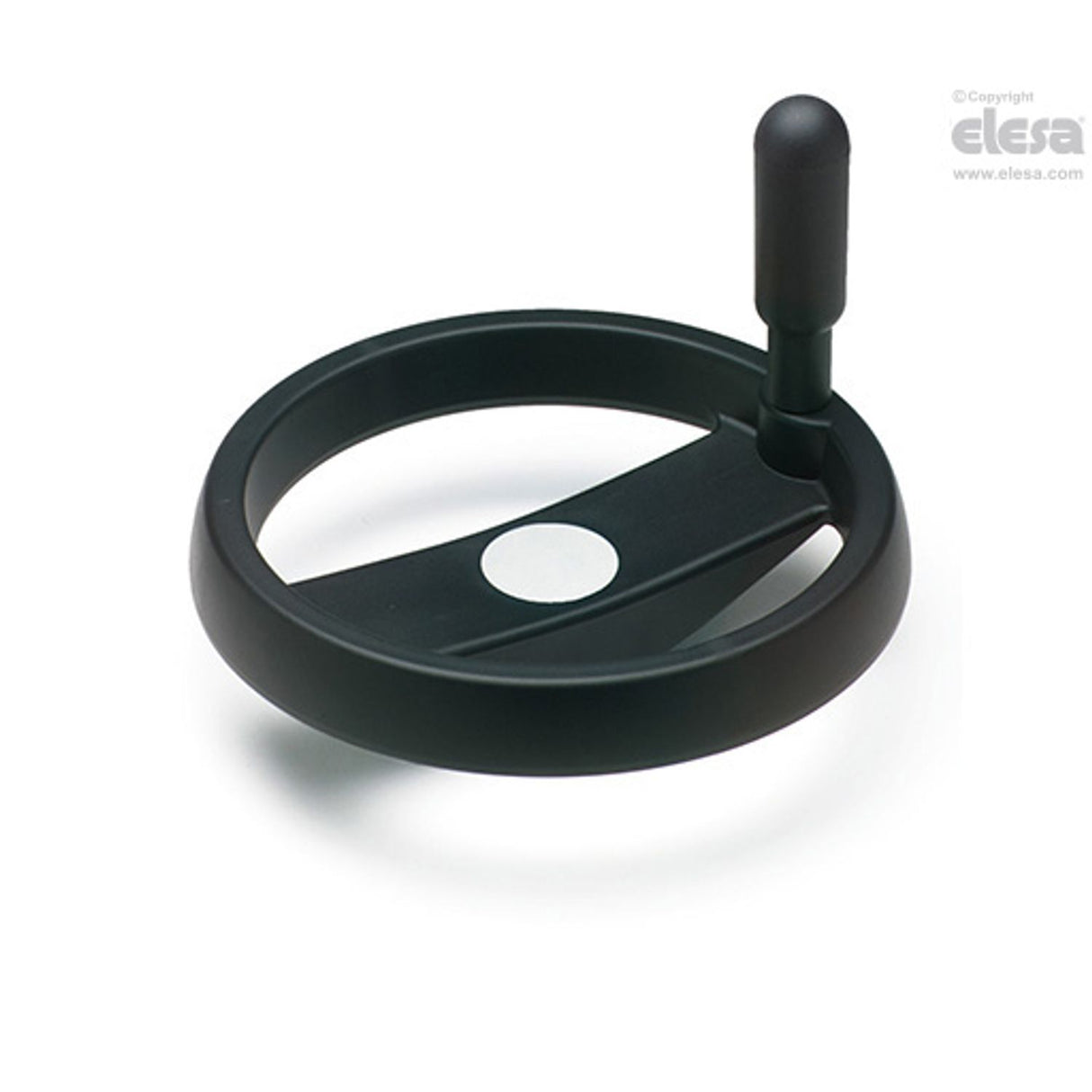

VRTP. Spoked handwheels, Technopolymer, Revolving handle For product drawing and dimensions refer to pdf Item data sheet.
| Diameter | 99mm |
| d(H7) | 8 |
| MFR Part No. | VRTP.100+I-A8 |
| D | 99 |
| H | 60 |
| d3 | 20.5 |
| d2 | 16 |
| B | 20 |
| C# | 54Nm |
| d4 | 25.5 |
| h | 17 |
| L# | 7J |
| m | M6 |
| Weight | 127g |
| R | 37 |
| L | 37 |
| d1 | 18 |
