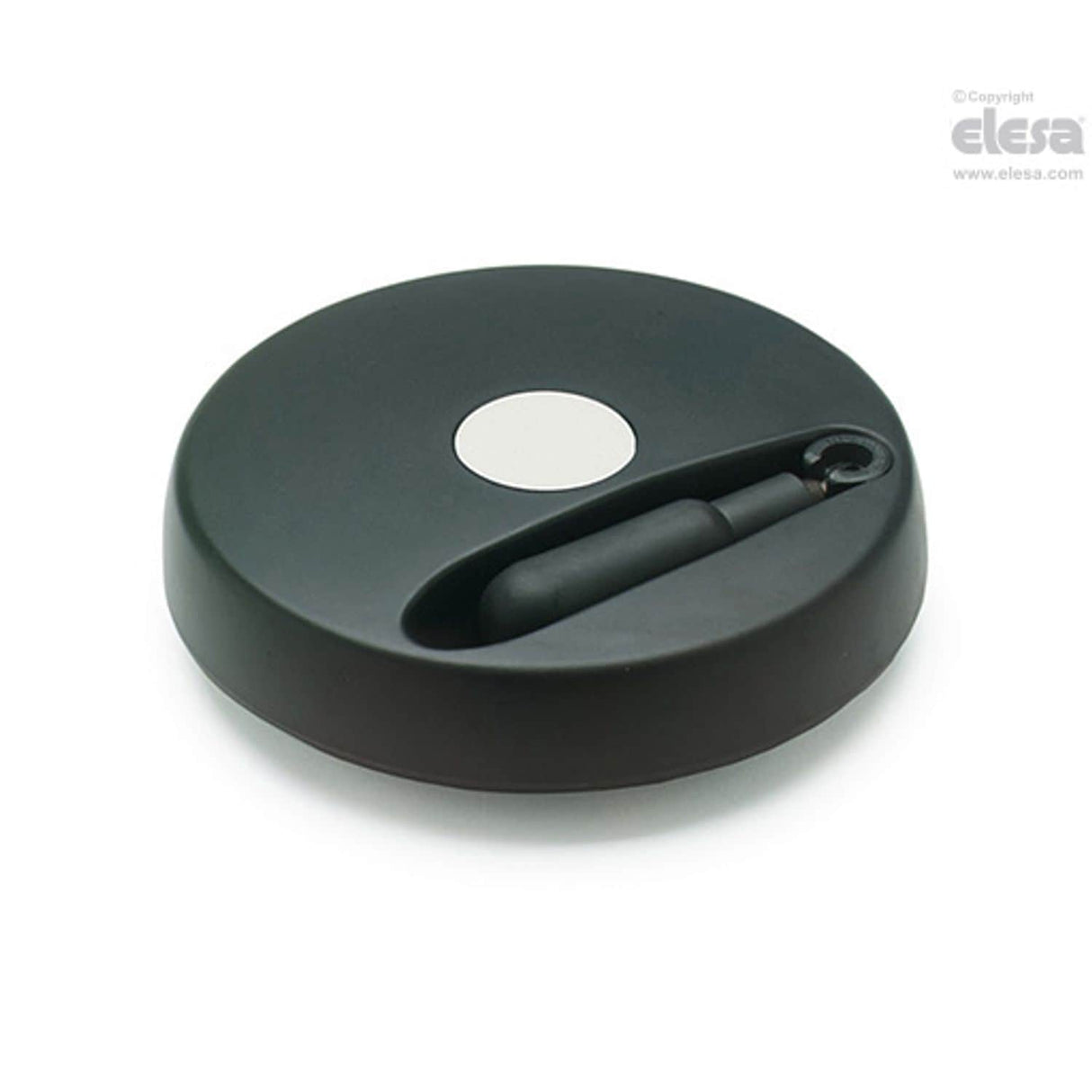

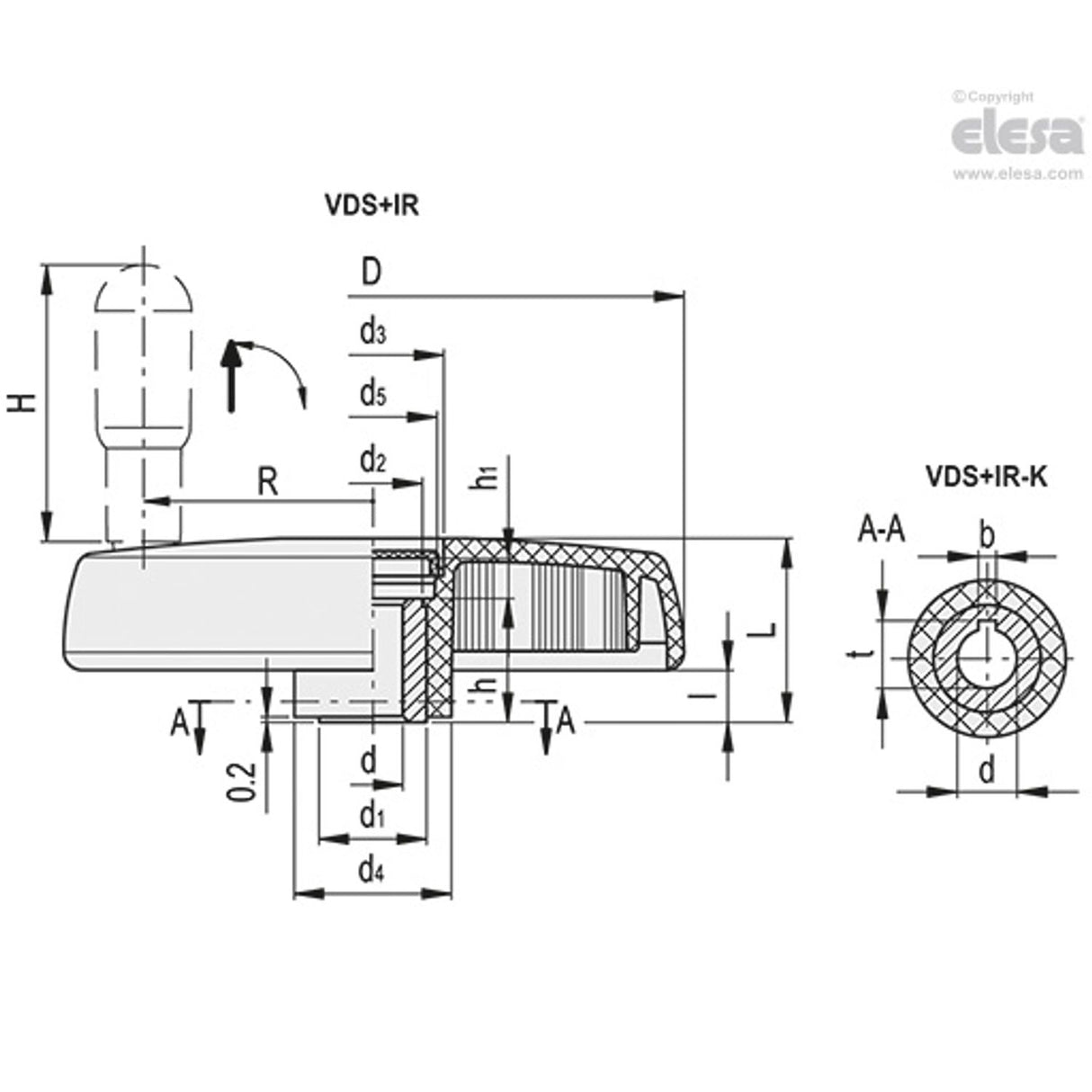

VDS. Solid handwheels, Technopolymer, Fold-away handle For product drawing and dimensions refer to pdf Item data sheet.
| d5 | 40 |
| C# | 320Nm |
| d4 | 50 |
| Diameter | 200mm |
| MFR Part No. | VDS.200+IR-A8 |
| d(H7) | 8 |
| d2 | 38 |
| d3 | 44 |
| h | 36 |
| l | 14 |
| d1 | 40 |
| H | 90 |
| Weight | 751g |
| L# | 27J |
| D | 200 |
| R | 81 |
| L | 53 |
| h1 | 13 |
