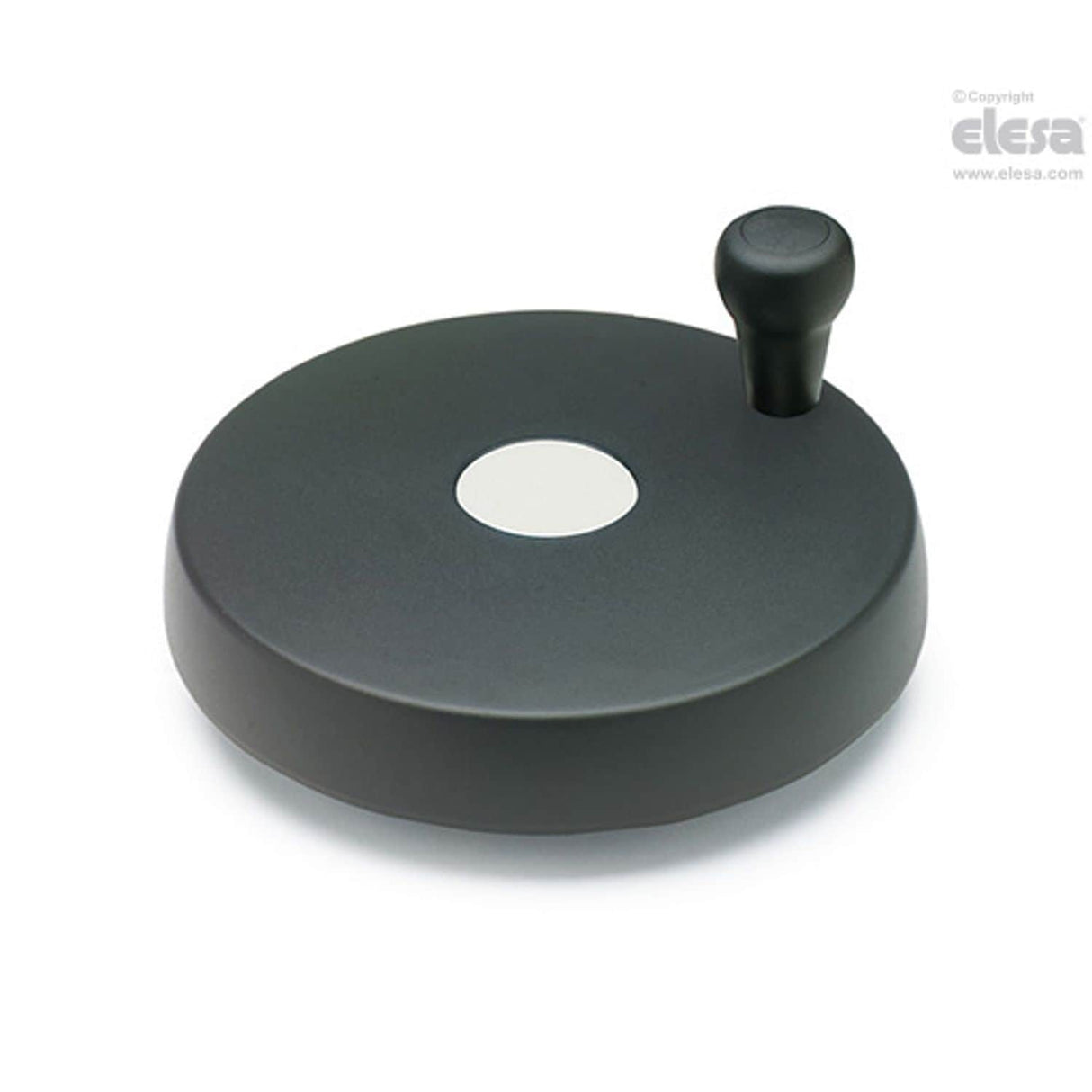

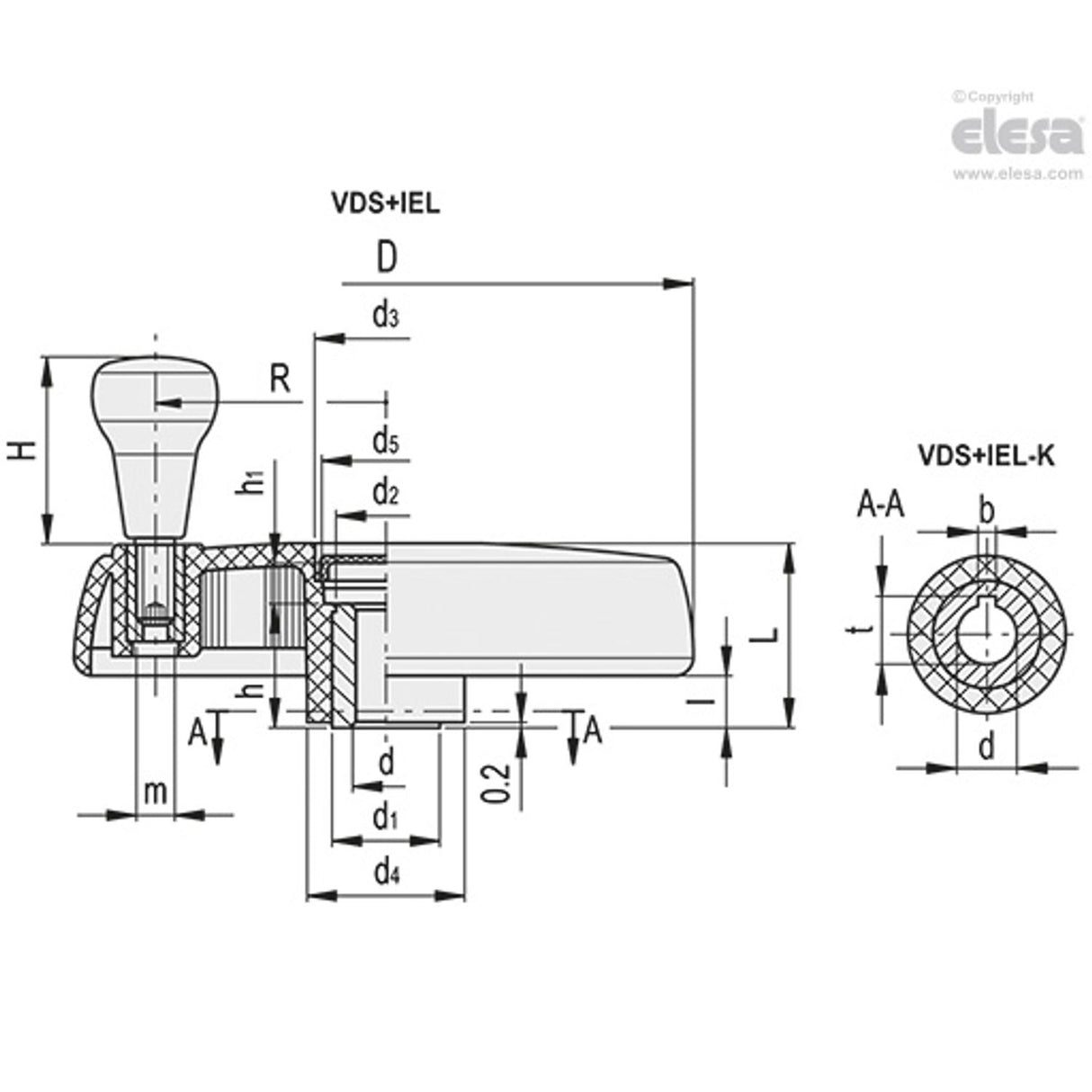

VDS. Solid handwheels, Technopolymer, Revolving handle "Soft touch" For product drawing and dimensions refer to pdf Item data sheet.
| Diameter | 300mm |
| h | 44 |
| d3 | 68.5 |
| h1 | 20 |
| d2 | 36.5 |
| D | 300 |
| MFR Part No. | VDS.300+IEL-A20 |
| L# | 30J |
| m | M10 |
| d4 | 72 |
| R | 124 |
| H | 65 |
| Weight | 1257g |
| l | 20 |
| d(H7) | 20 |
| C# | 500Nm |
| d5 | 66 |
| d1 | 40 |
| L | 66 |
