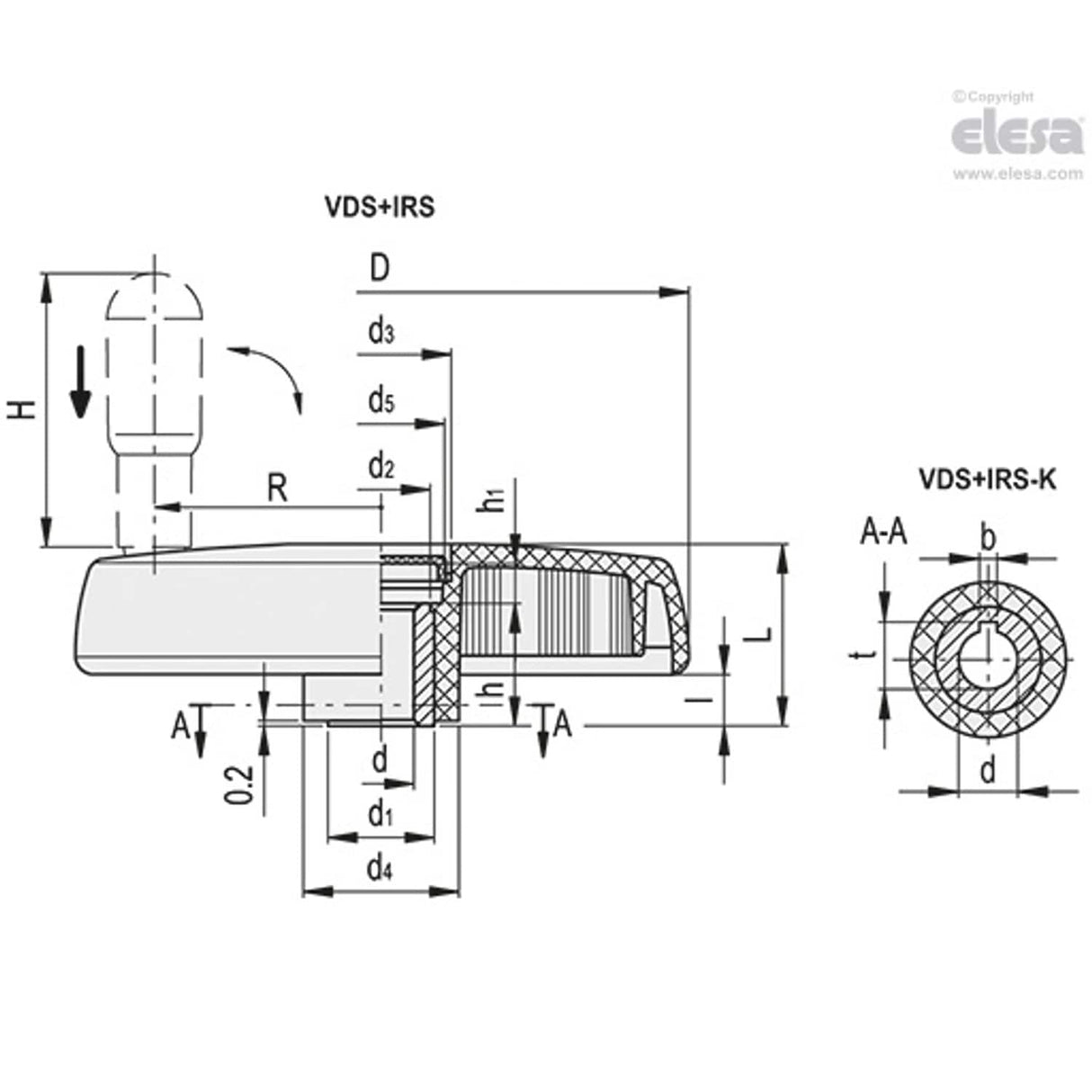

VDS. Solid handwheels, Technopolymer, Safety fold-away handle For product drawing and dimensions refer to pdf Item data sheet.
| d5 | 48 |
| l | 17 |
| d(H7) | 20 |
| D | 250 |
| MFR Part No. | VDS.250+IRS-A20 |
| L# | 30J |
| h1 | 19 |
| H | 90 |
| d4 | 57 |
| Weight | 955g |
| C# | 500Nm |
| d3 | 50 |
| R | 104 |
| d2 | 38 |
| h | 36 |
| L | 60 |
| Diameter | 250mm |
| d1 | 40 |
