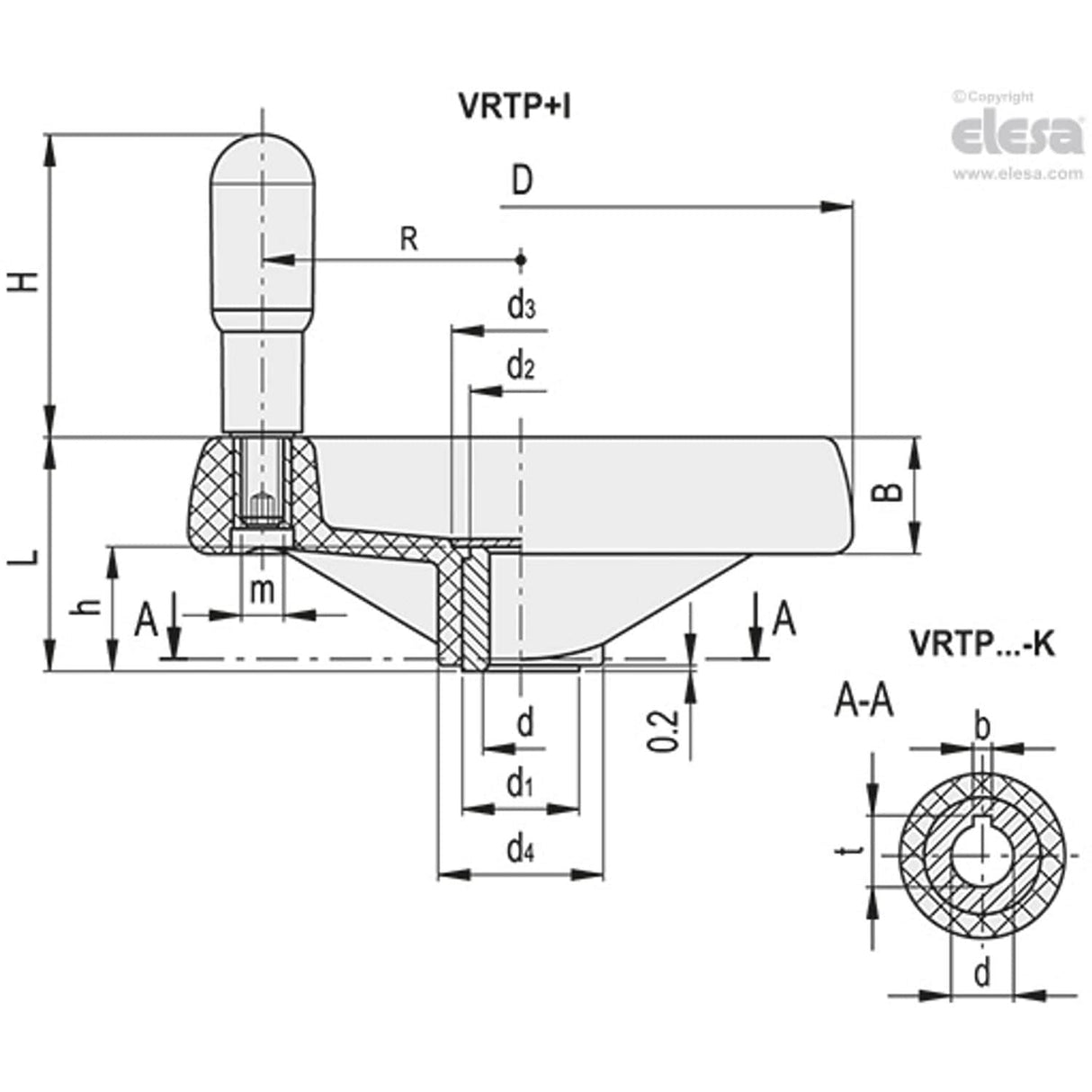

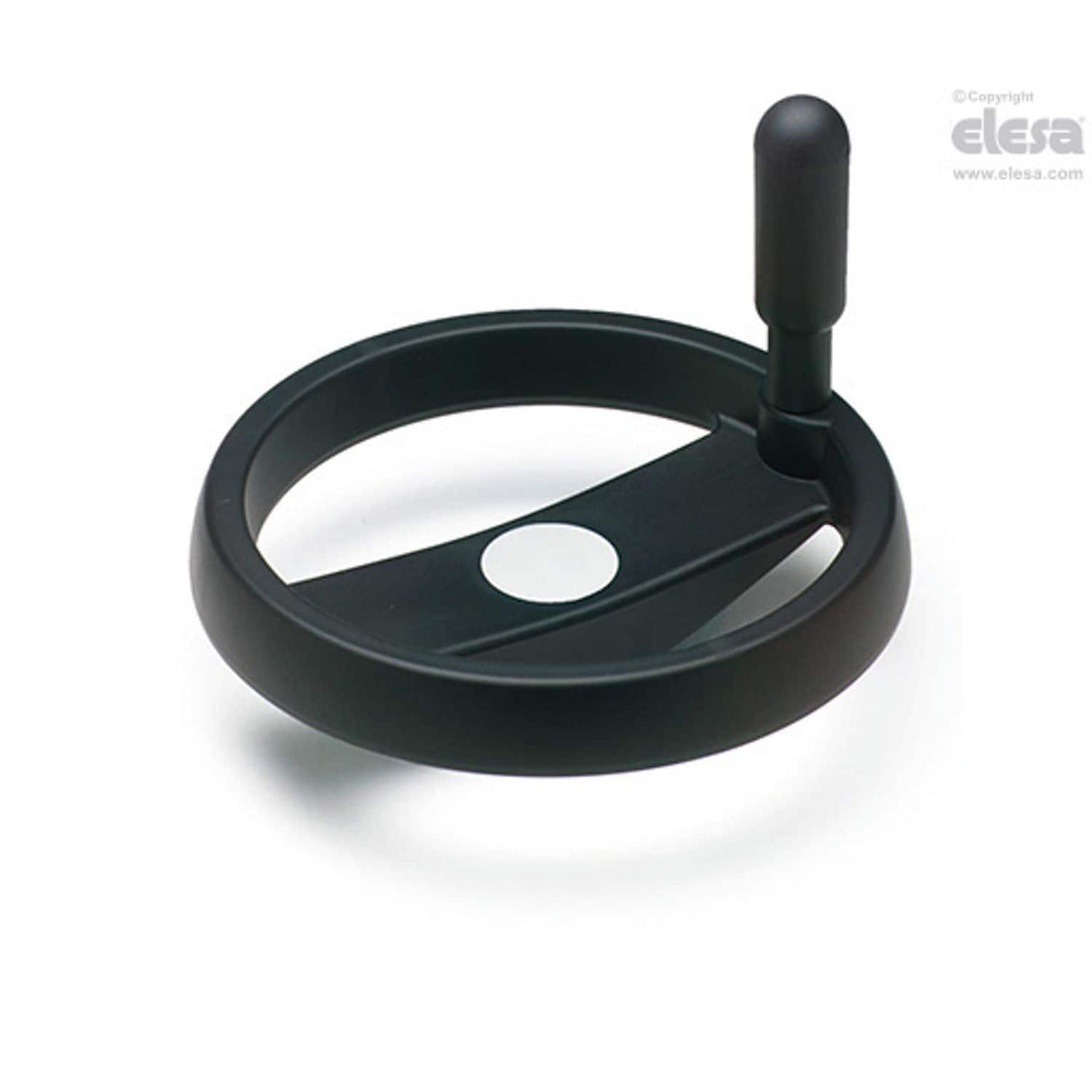

VRTP. Spoked handwheels, Technopolymer, Revolving handle For product drawing and dimensions refer to pdf Item data sheet.
| Diameter | 160mm |
| MFR Part No. | VRTP.160+I-A8 |
| L | 51 |
| d1 | 26 |
| d(H7) | 8 |
| H | 73 |
| D | 160 |
| h | 27 |
| C# | 185Nm |
| d3 | 32 |
| d2 | 24 |
| d4 | 40 |
| R | 65 |
| L# | 15J |
| B | 25 |
| m | M8 |
| Weight | 353g |
