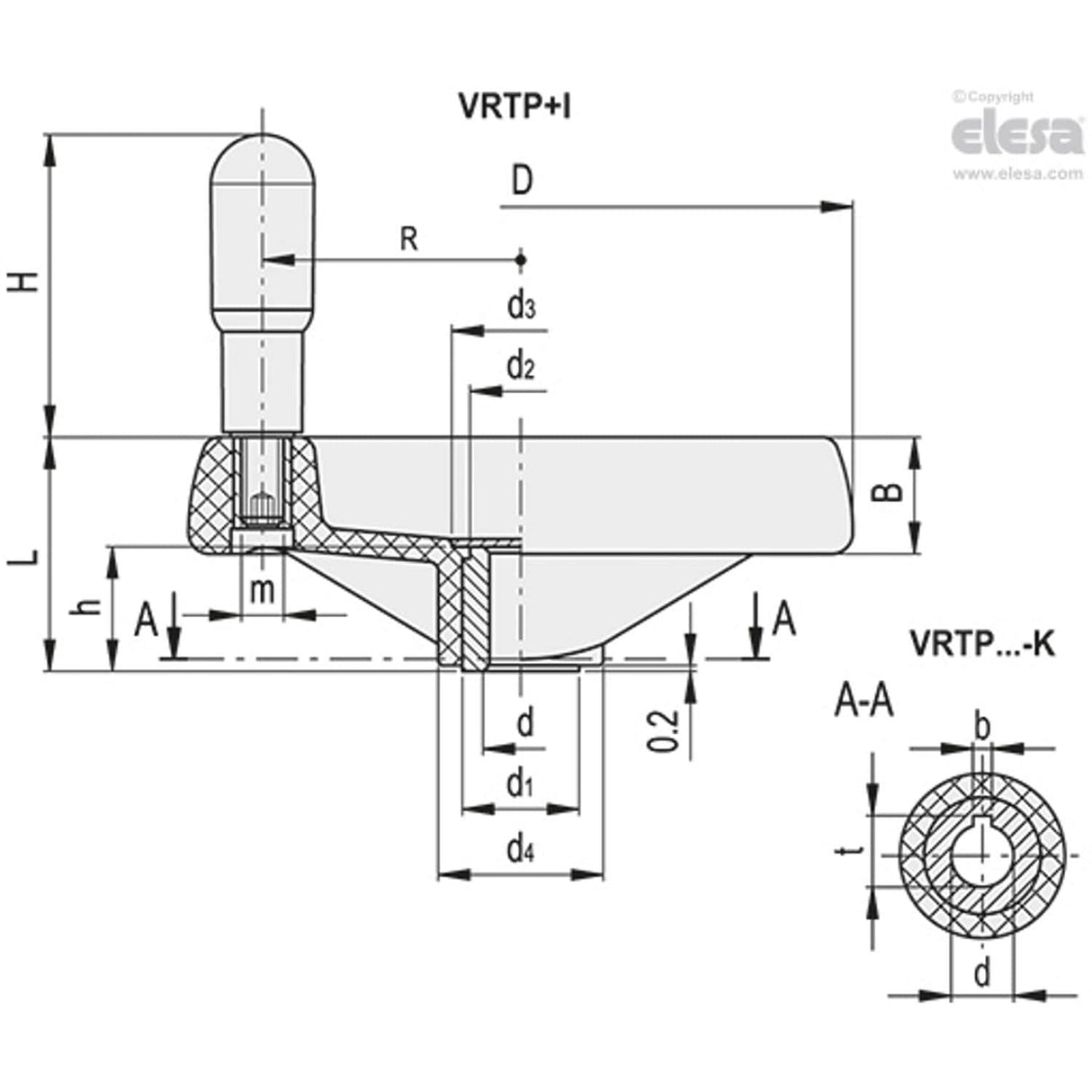

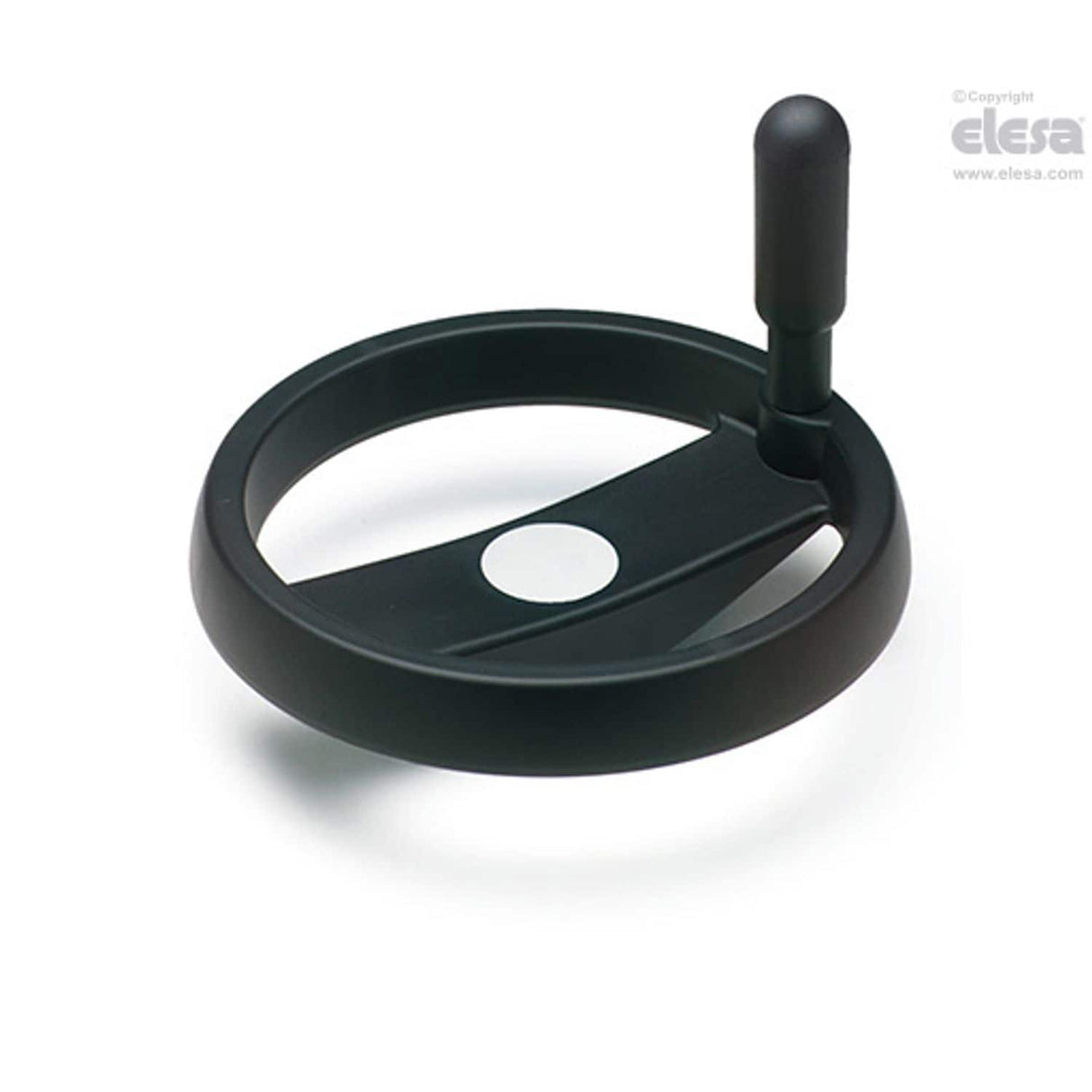

VRTP. Spoked handwheels, Technopolymer, Revolving handle For product drawing and dimensions refer to pdf Item data sheet.
| d4 | 48.5 |
| H | 80 |
| Weight | 539g |
| d2 | 28 |
| B | 28 |
| d3 | 36 |
| L | 61 |
| Diameter | 200mm |
| R | 84 |
| L# | 24J |
| D | 200 |
| m | M8 |
| d1 | 30 |
| MFR Part No. | VRTP.200+I-A16 |
| C# | 300Nm |
| h | 34 |
| d(H7) | 16 |
