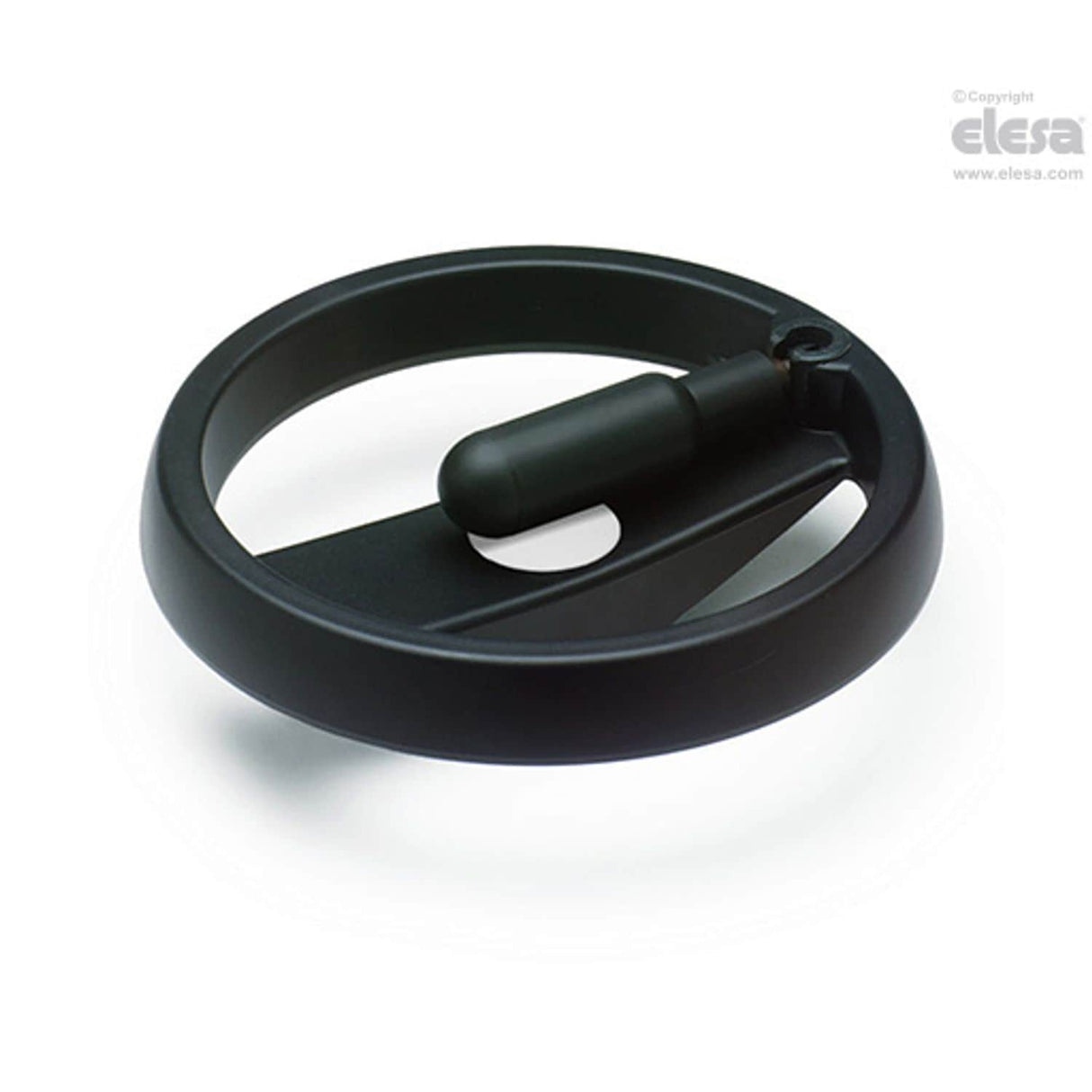

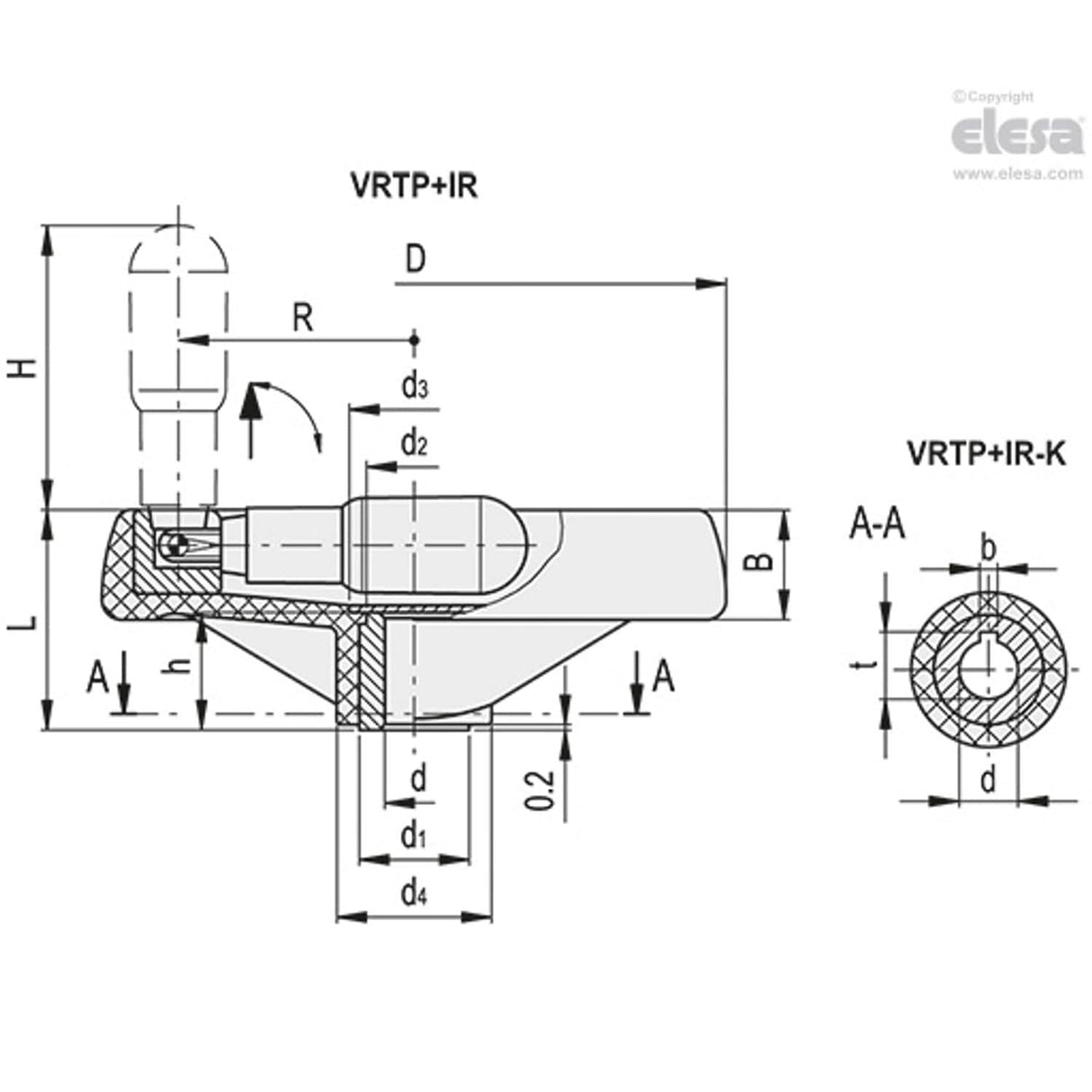

VRTP. Spoked handwheels, Technopolymer, Fold-away handle For product drawing and dimensions refer to pdf Item data sheet.
| Weight | 876g |
| R | 105 |
| d4 | 58 |
| d3 | 45 |
| H | 90 |
| d(H9) | 24 |
| d1 | 35 |
| d2 | 33 |
| Diameter | 250mm |
| L | 69 |
| MFR Part No. | VRTP.250+IR-A24-K |
| h | 38 |
| D | 250 |
| t | 27.3 |
| C# | 420Nm |
| L# | 28J |
| B | 32 |
| b | 8 |
