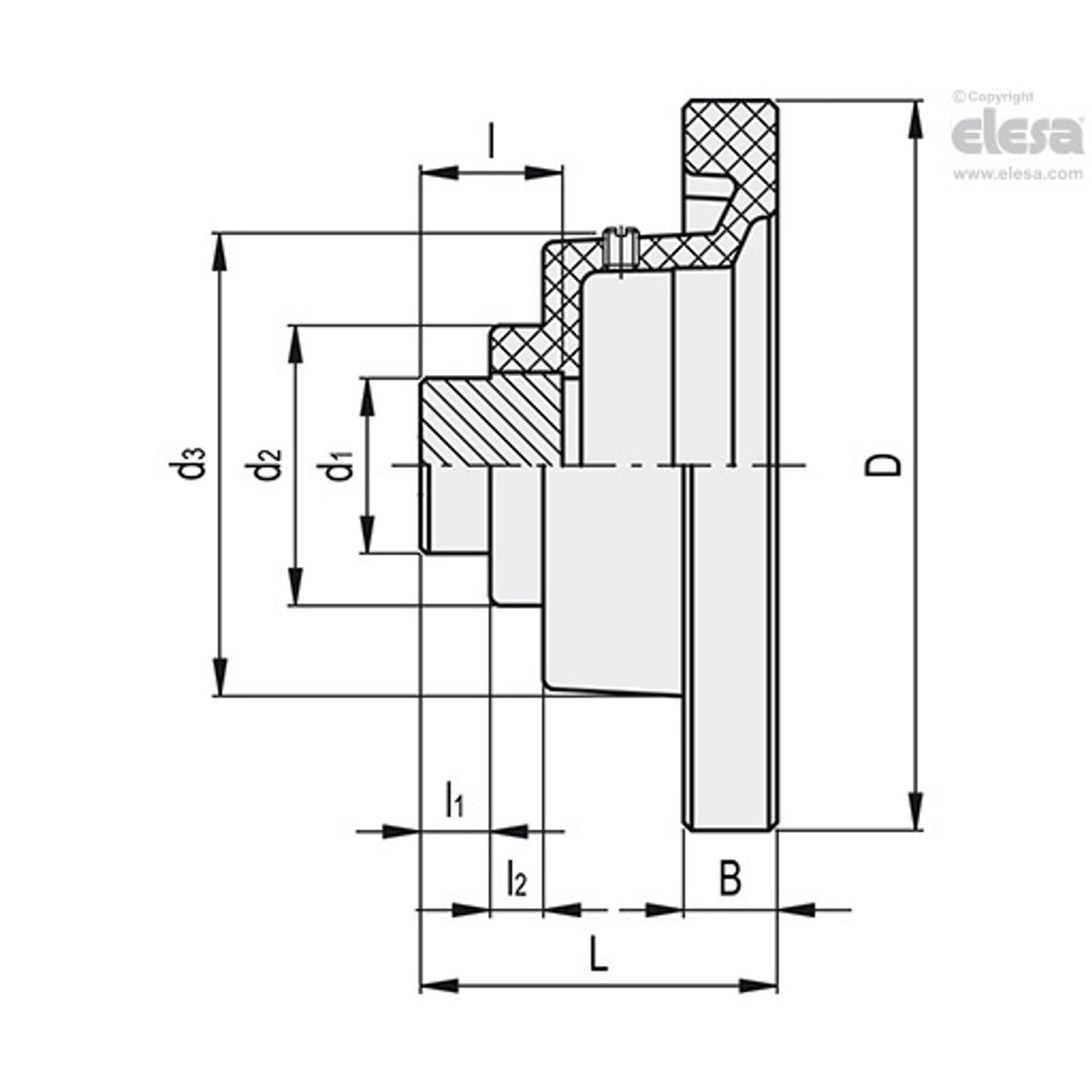

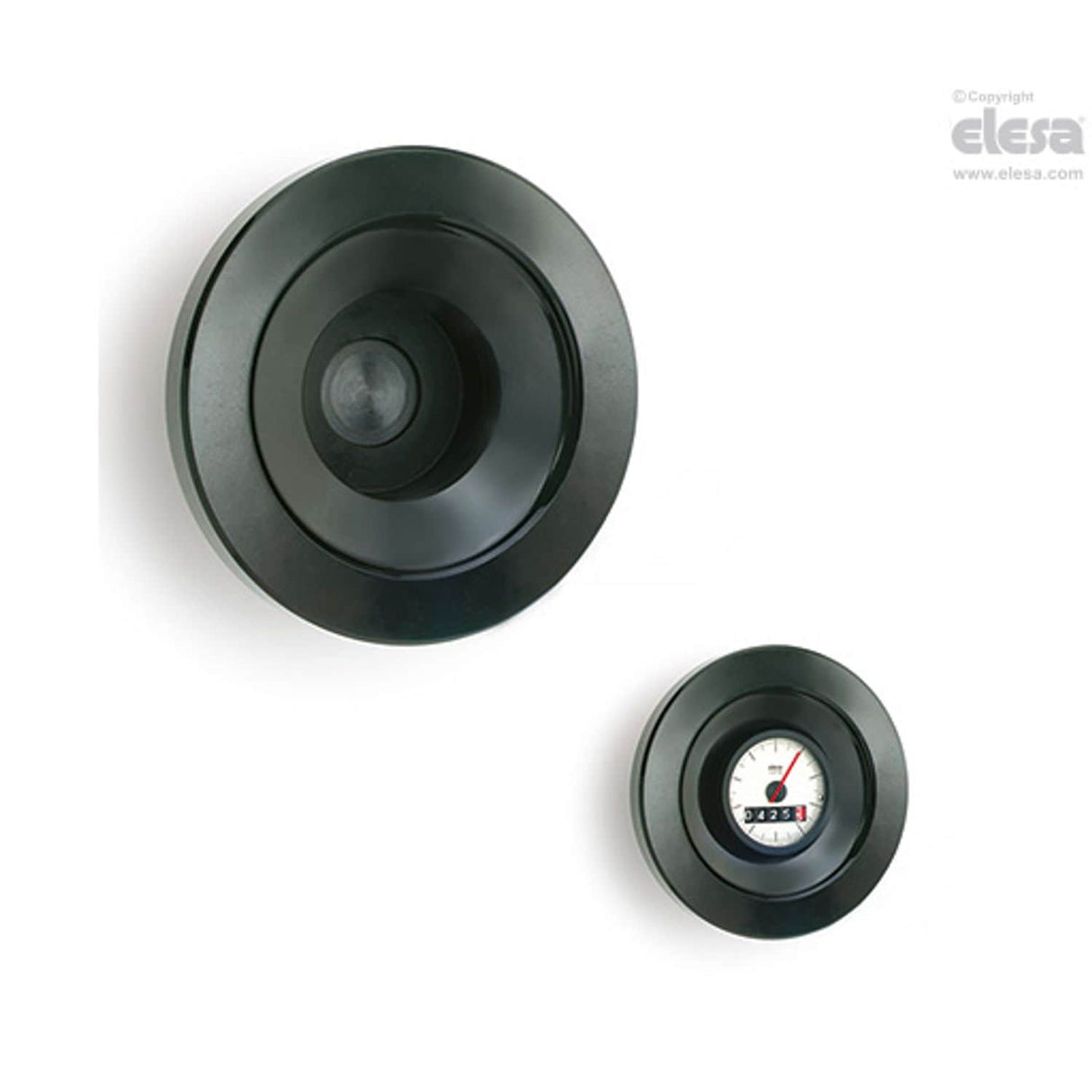

VDC-XX Handwheels, for position indicators, Duroplast, For gravity drive indicators, without handle For product drawing and dimensions refer to pdf Item data sheet.
| d3 | 82 |
| MFR Part No. | VDC.125-GXX2 |
| Weight | 395g |
| L | 61 |
| l1 | 12 |
| Diameter | 125mm |
| d2 | 48 |
| l2 | 9 |
| l | 25 |
| d1 | 30 |
| t | 22.8 |
| B | 16 |
| D | 125 |
| b | 6 |
