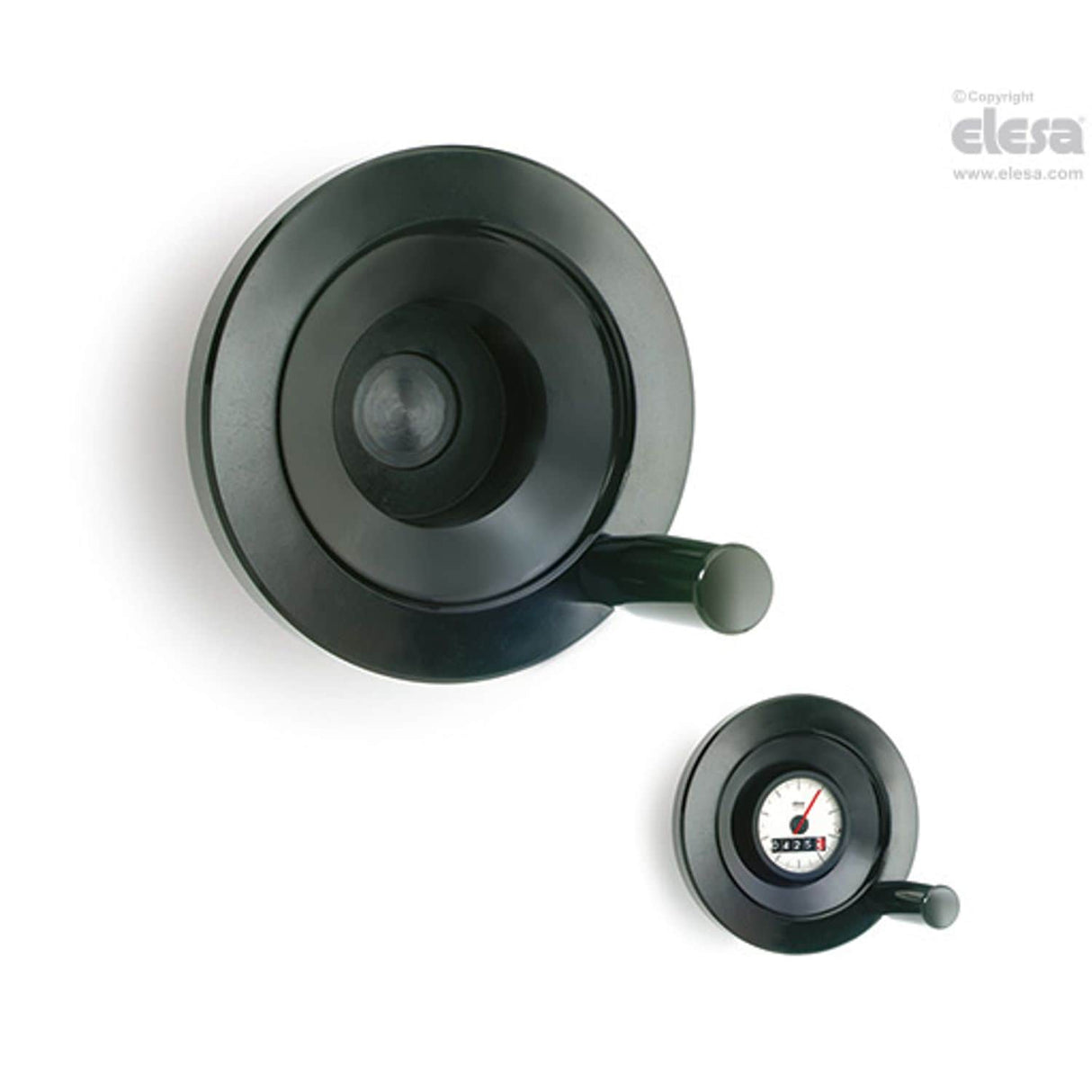

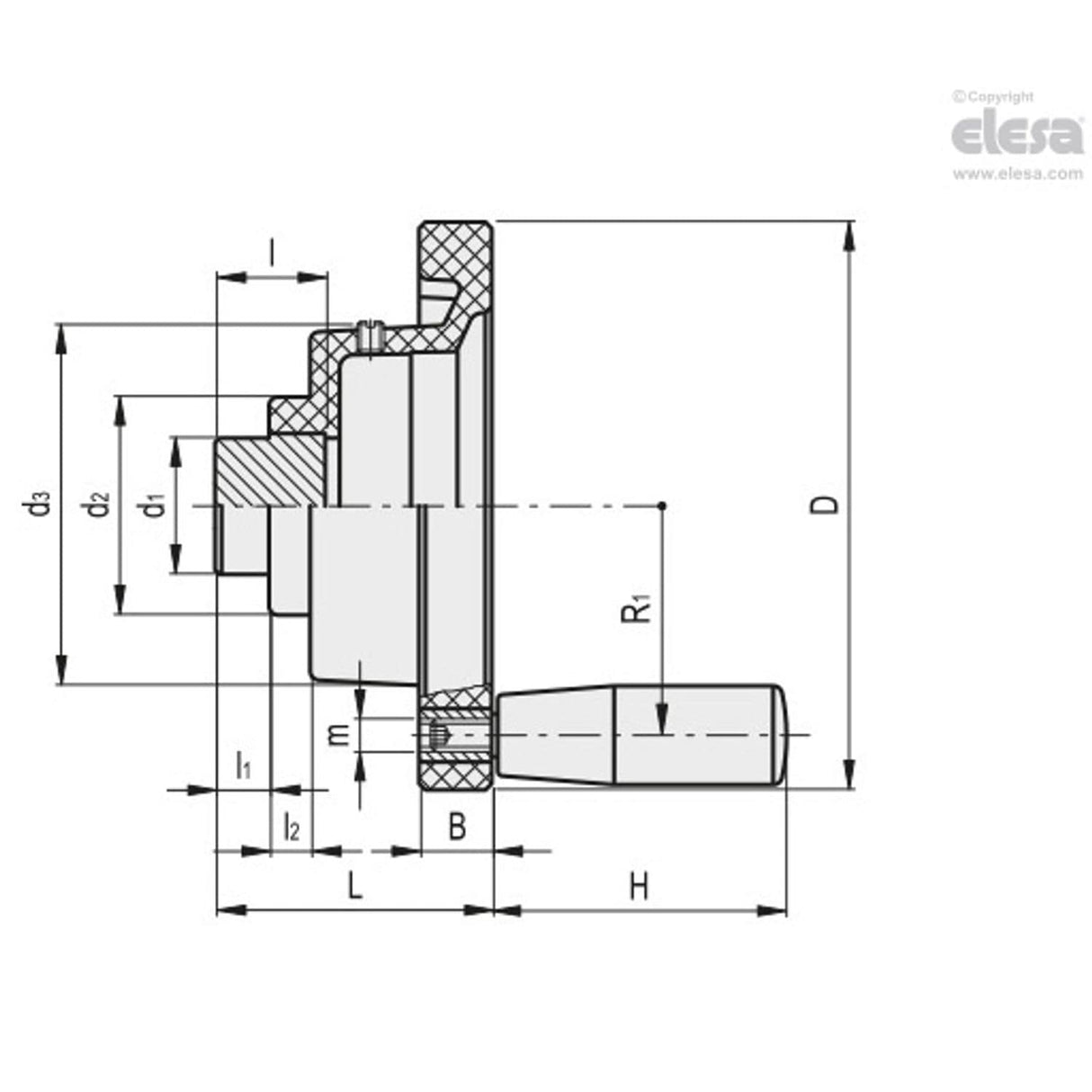

VDC-XX Handwheels, for position indicators, Duroplast, For gravity drive indicators, with revolving handle For product drawing and dimensions refer to pdf Item data sheet.
| t | 18.3 |
| l2 | 8.5 |
| MFR Part No. | VDC.80-GXX1+I |
| Weight | 243g |
| b | 5 |
| d3 | 58 |
| H | 40 |
| d2 | 40 |
| Diameter | 87mm |
| m | M6 |
| R1 | 34.5 |
| B | 14 |
| l | 23 |
| l1 | 11 |
| D | 87 |
| L | 57 |
| d1 | 25 |
