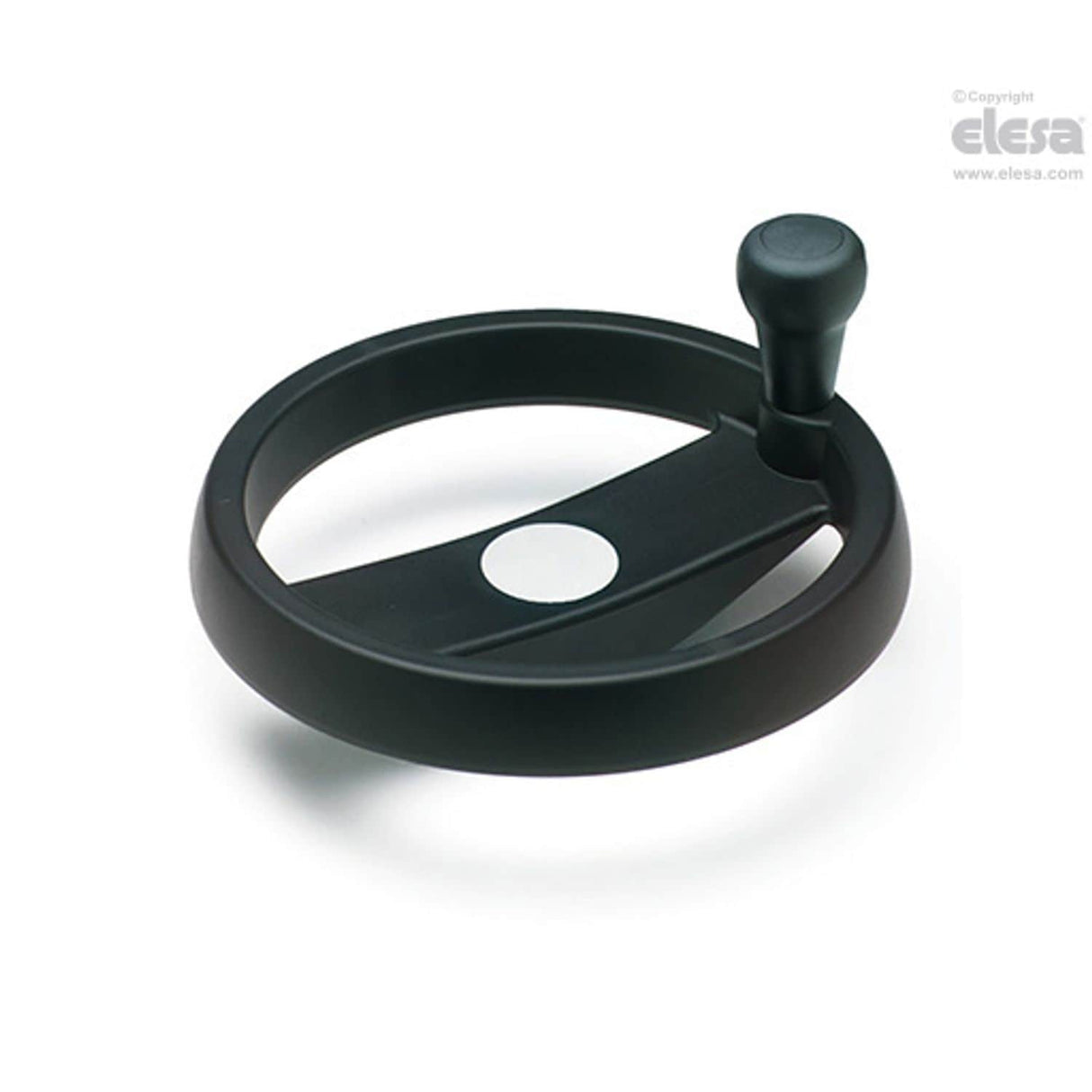

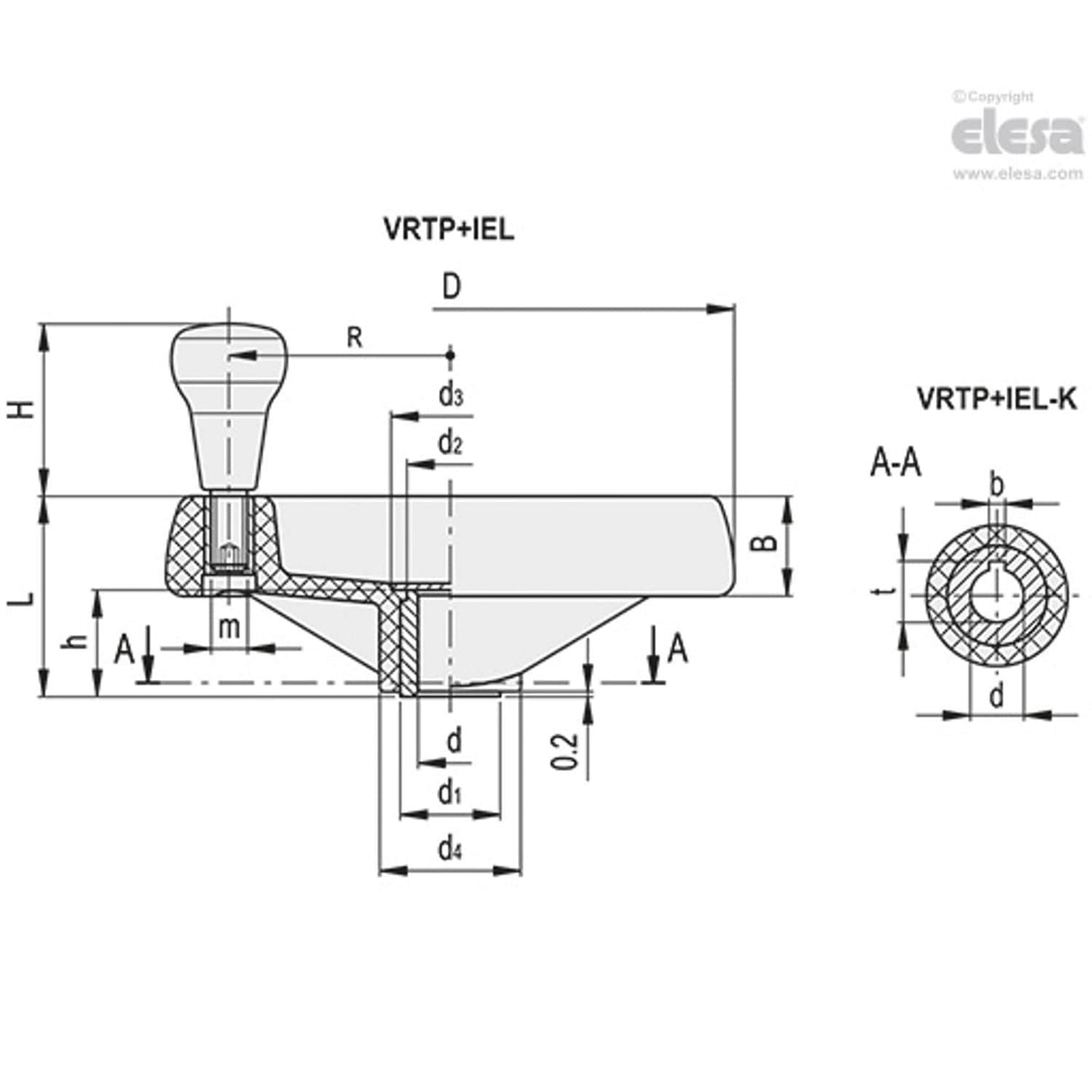

VRTP. Spoked handwheels, Technopolymer, Revolving handle "Soft touch" For product drawing and dimensions refer to pdf Item data sheet.
| d3 | 52 |
| d2 | 37 |
| B | 35.5 |
| d(H7) | 20 |
| h | 43 |
| L | 78 |
| MFR Part No. | VRTP.300+IEL-A20 |
| C# | 480Nm |
| D | 300 |
| H | 65 |
| d1 | 40 |
| L# | 36J |
| R | 127 |
| d4 | 66 |
| Weight | 1052g |
| m | M10 |
| Diameter | 300mm |
