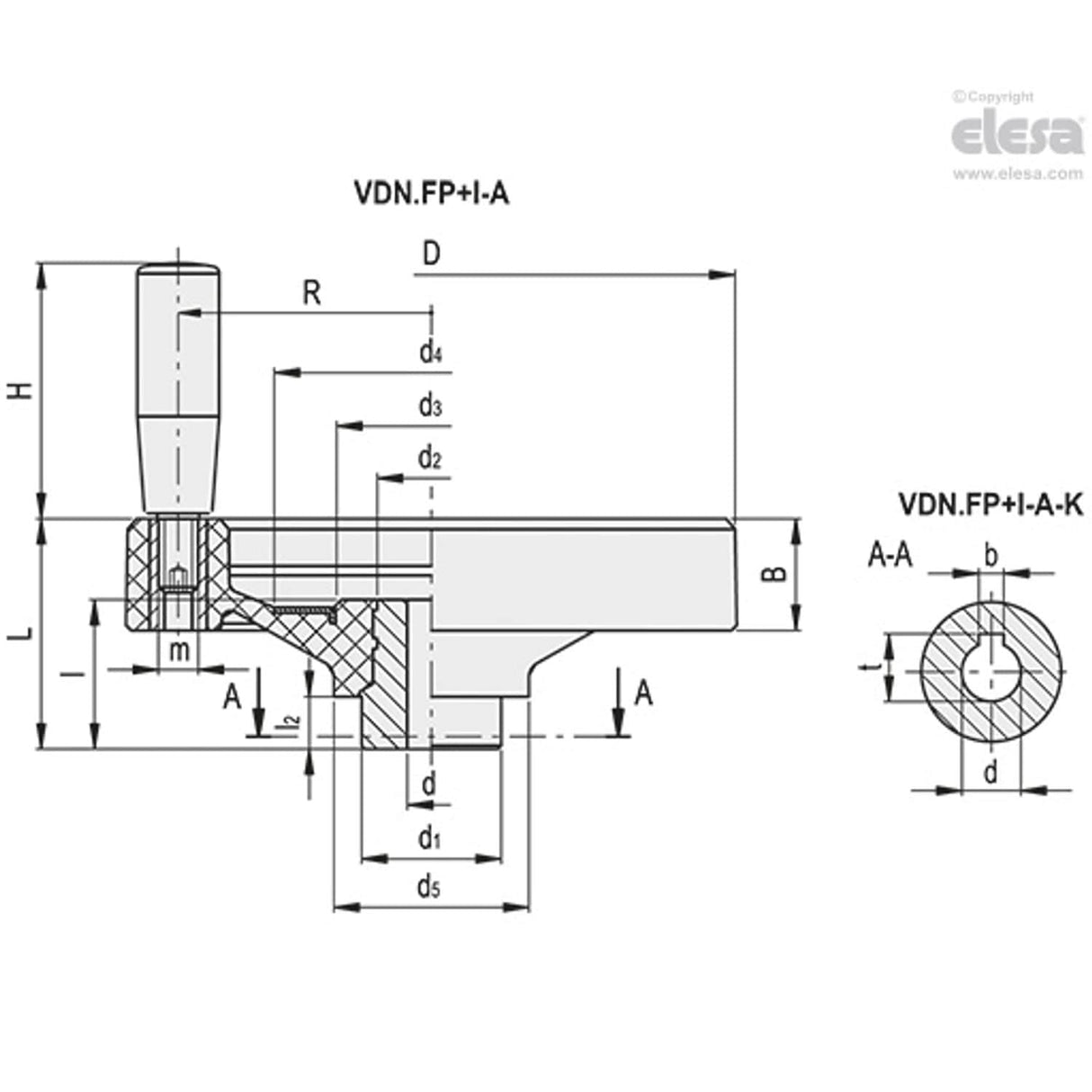

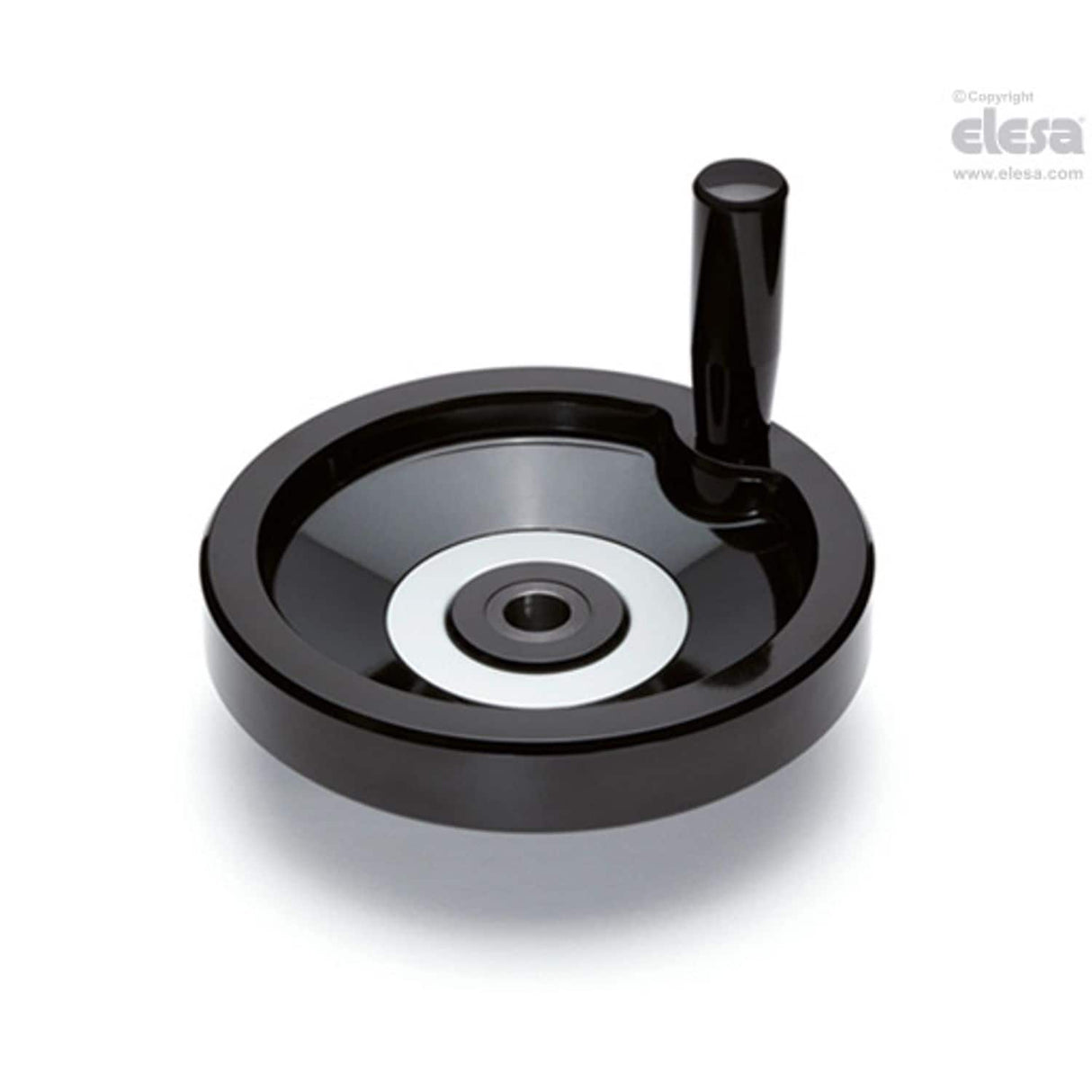

VDN.FP Solid handwheels, Duroplast, steel hub, Revolving handle, drilled hub For product drawing and dimensions refer to pdf Item data sheet.
| Weight | 66g |
| d1 | 16 |
| H | 28 |
| D | 50 |
| d(H7) | 10 |
| l2 | 9 |
| L | 22 |
| C# | 55Nm |
| l | 19 |
| MFR Part No. | VDN.50 FP+I-A10 |
| d4 | 25 |
| m | M6 |
| B | 12 |
| d2 | 16 |
| L# | 3J |
| R | 19 |
| Diameter | 50mm |
| d5 | 26 |
