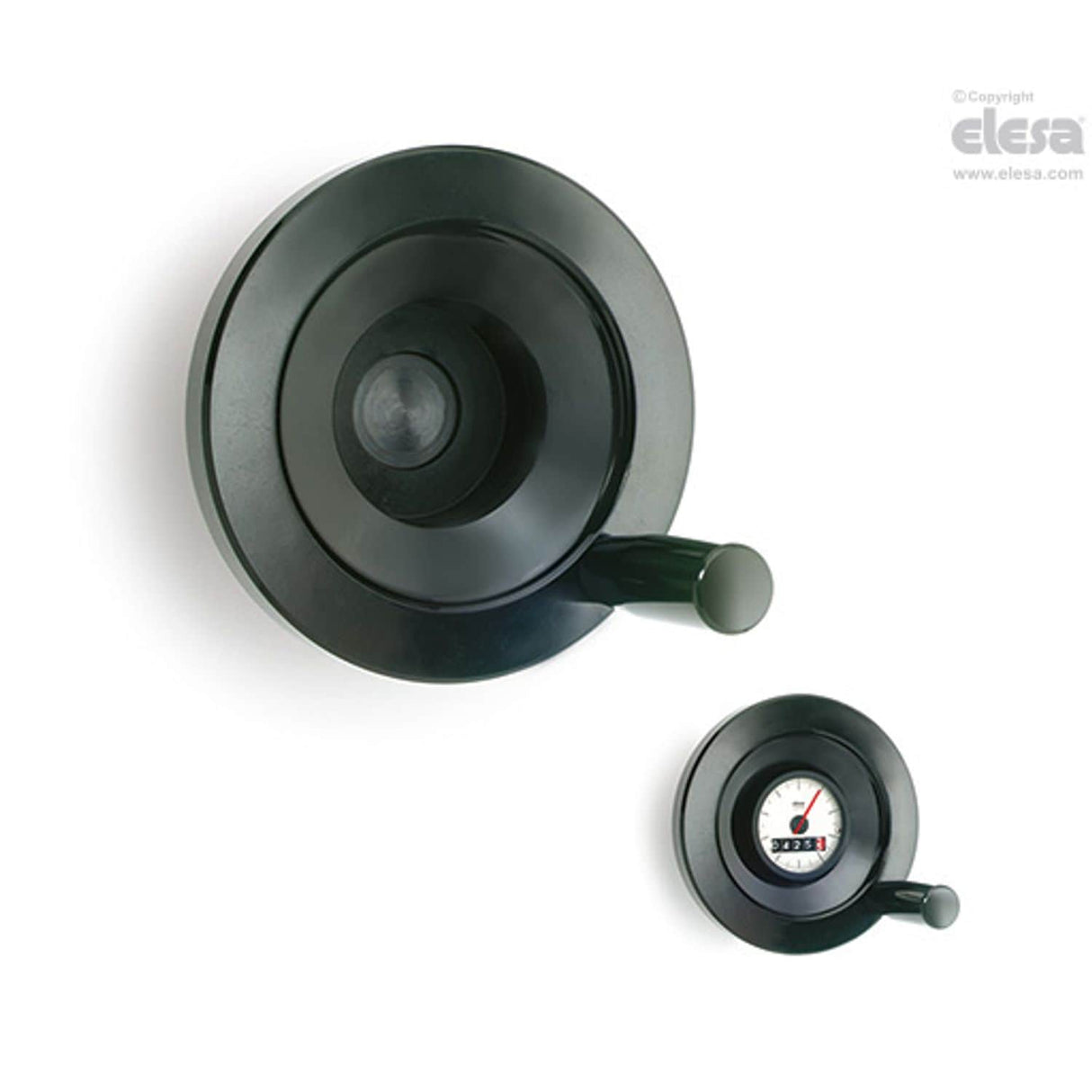

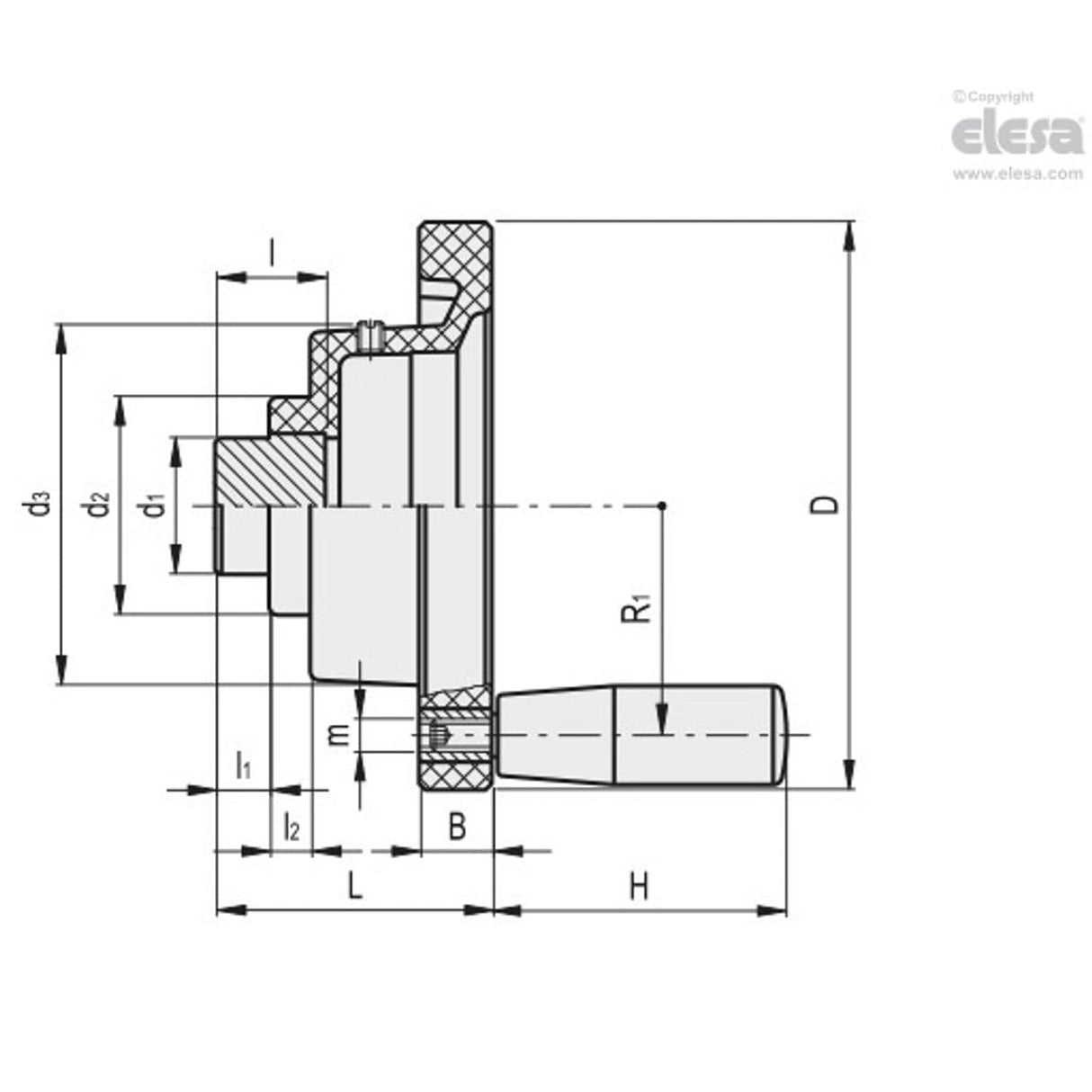

VDC-XX Handwheels, for position indicators, Duroplast, For gravity drive indicators, with revolving handle For product drawing and dimensions refer to pdf Item data sheet.
| B | 19 |
| R1 | 77.5 |
| l2 | 10 |
| L | 78 |
| b | 8 |
| d3 | 85 |
| m | M10 |
| l | 30 |
| d2 | 56 |
| l1 | 15 |
| D | 180 |
| Diameter | 180mm |
| Weight | 888g |
| H | 80 |
| t | 27.3 |
| MFR Part No. | VDC.180-GXX2+I |
| d1 | 35 |
