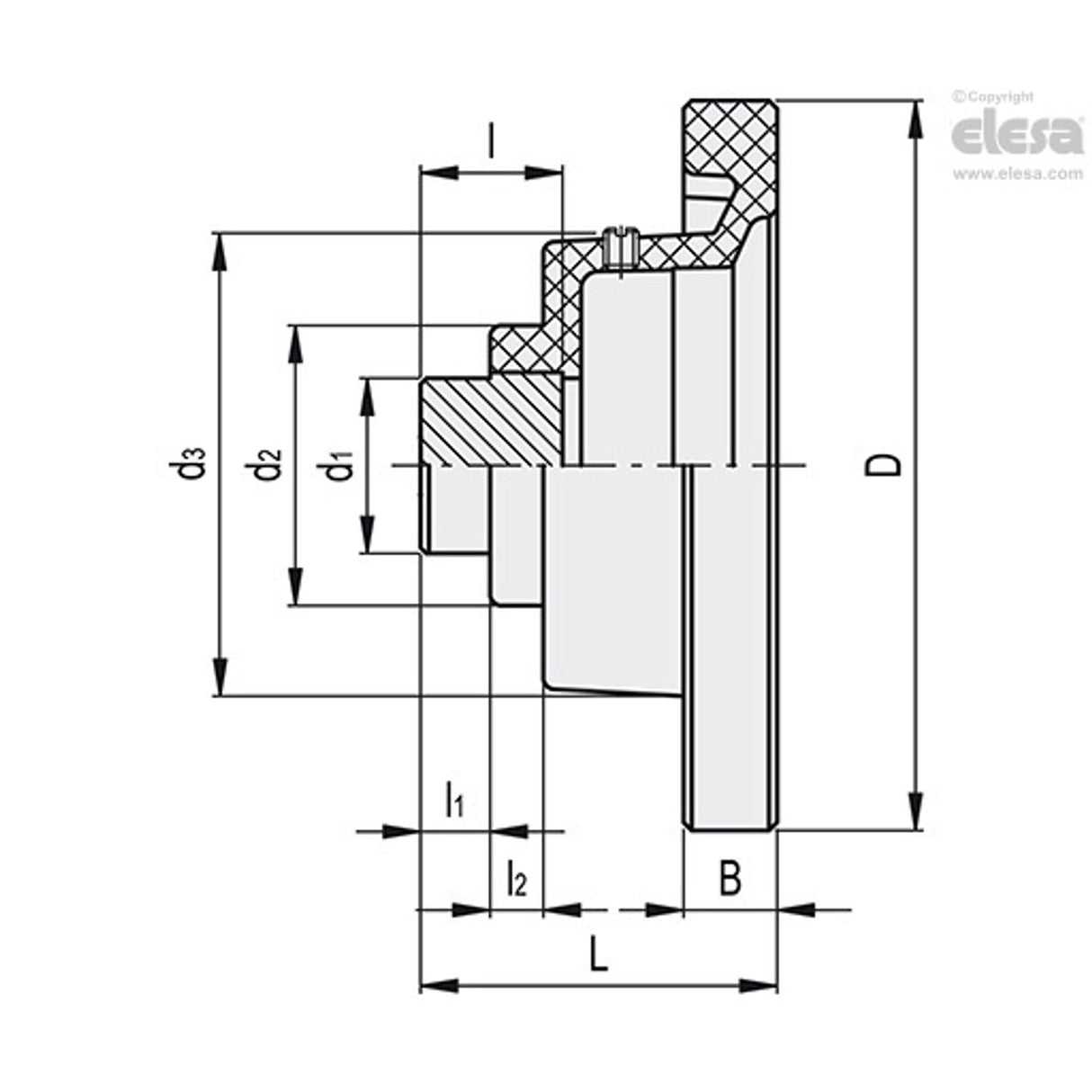

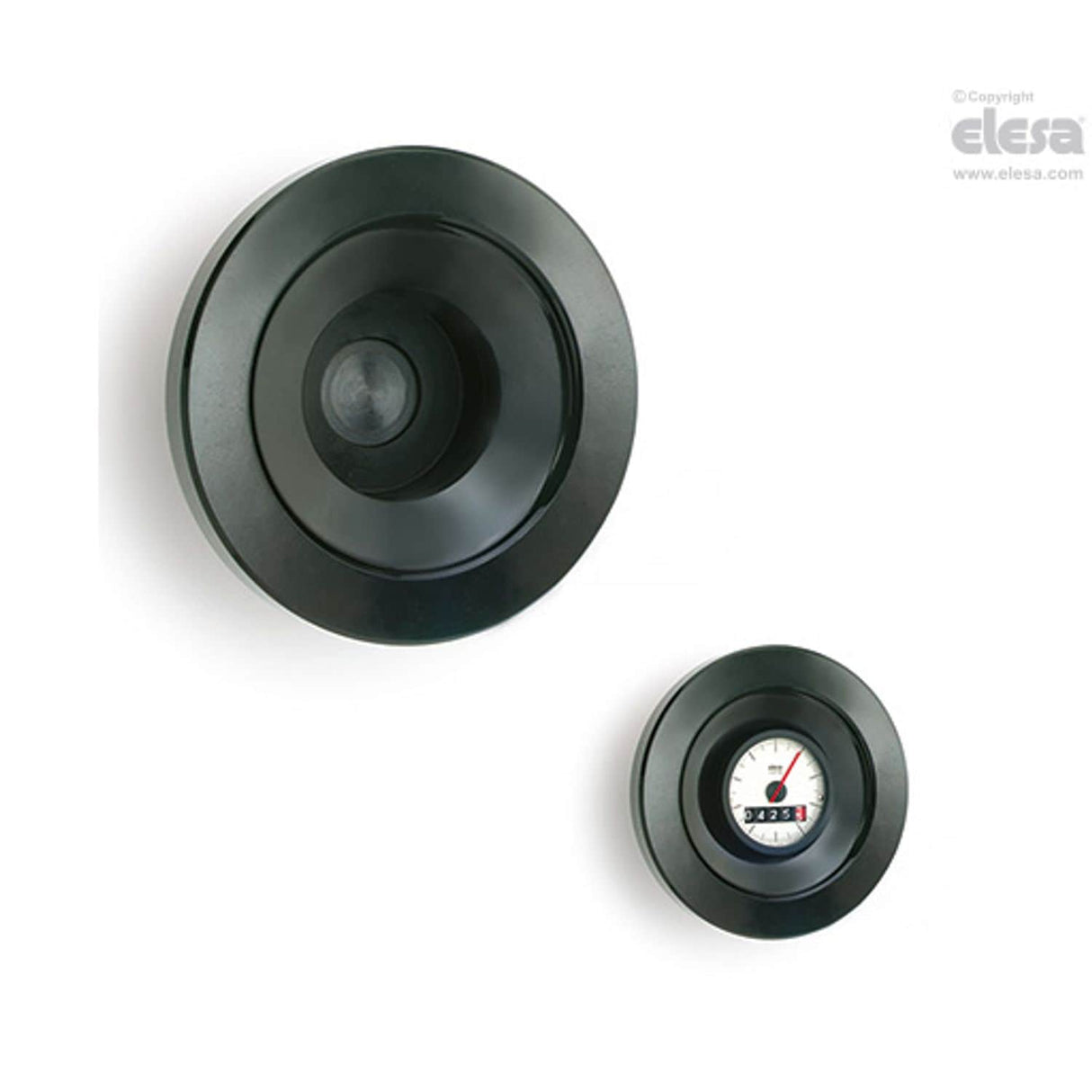

VDC-XX Handwheels, for position indicators, Duroplast, For gravity drive indicators, without handle For product drawing and dimensions refer to pdf Item data sheet.
| l2 | 15 |
| Diameter | 200mm |
| Weight | 1066g |
| t | 32.3 |
| d2 | 59 |
| B | 20 |
| l1 | 13 |
| b | 8 |
| d1 | 40 |
| l | 34 |
| MFR Part No. | VDC.200-GXX5 |
| L | 79 |
| D | 200 |
| d3 | 127 |
