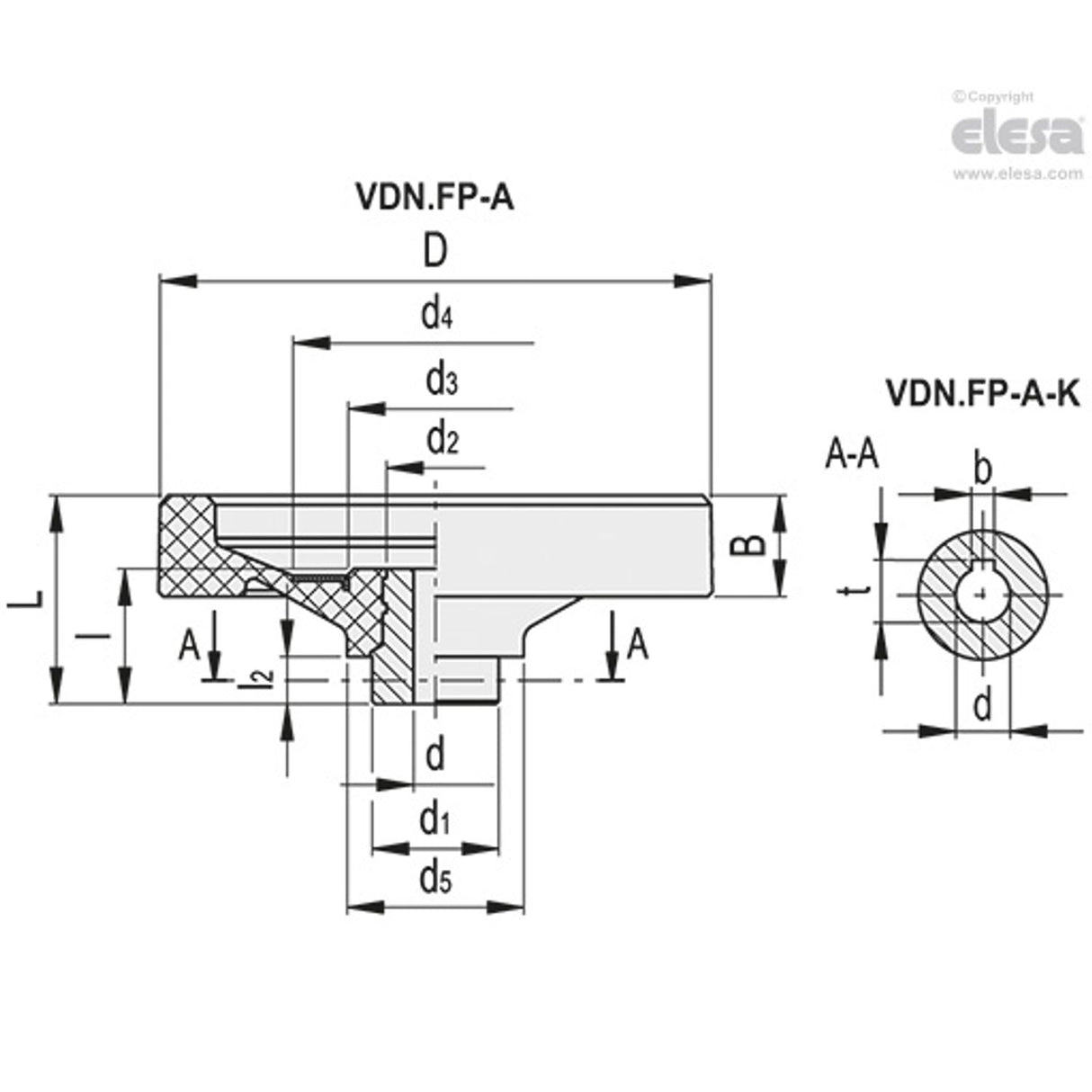

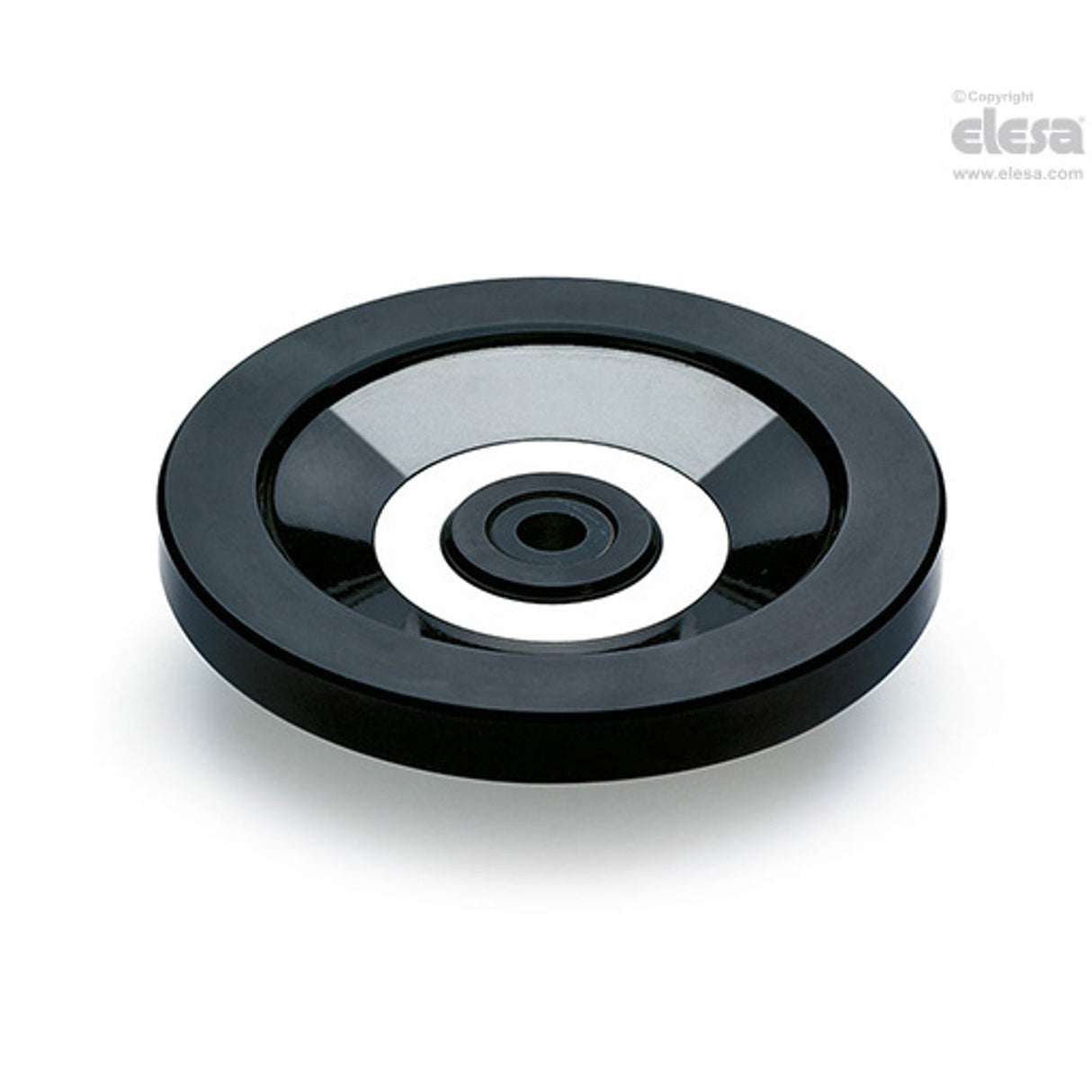

VDN.FP Solid handwheels, Duroplast, steel hub, Without handle, drilled hub For product drawing and dimensions refer to pdf Item data sheet.
| MFR Part No. | VDN.80 FP-A12 |
| D | 80 |
| d5 | 30 |
| d4 | 43 |
| Weight | 125g |
| d3 | 28 |
| B | 14 |
| L# | 5J |
| Diameter | 80mm |
| d2 | 18 |
| d1 | 20 |
| l | 28 |
| l2 | 10 |
| C# | 120Nm |
| L | 31 |
| d(H7) | 12 |
