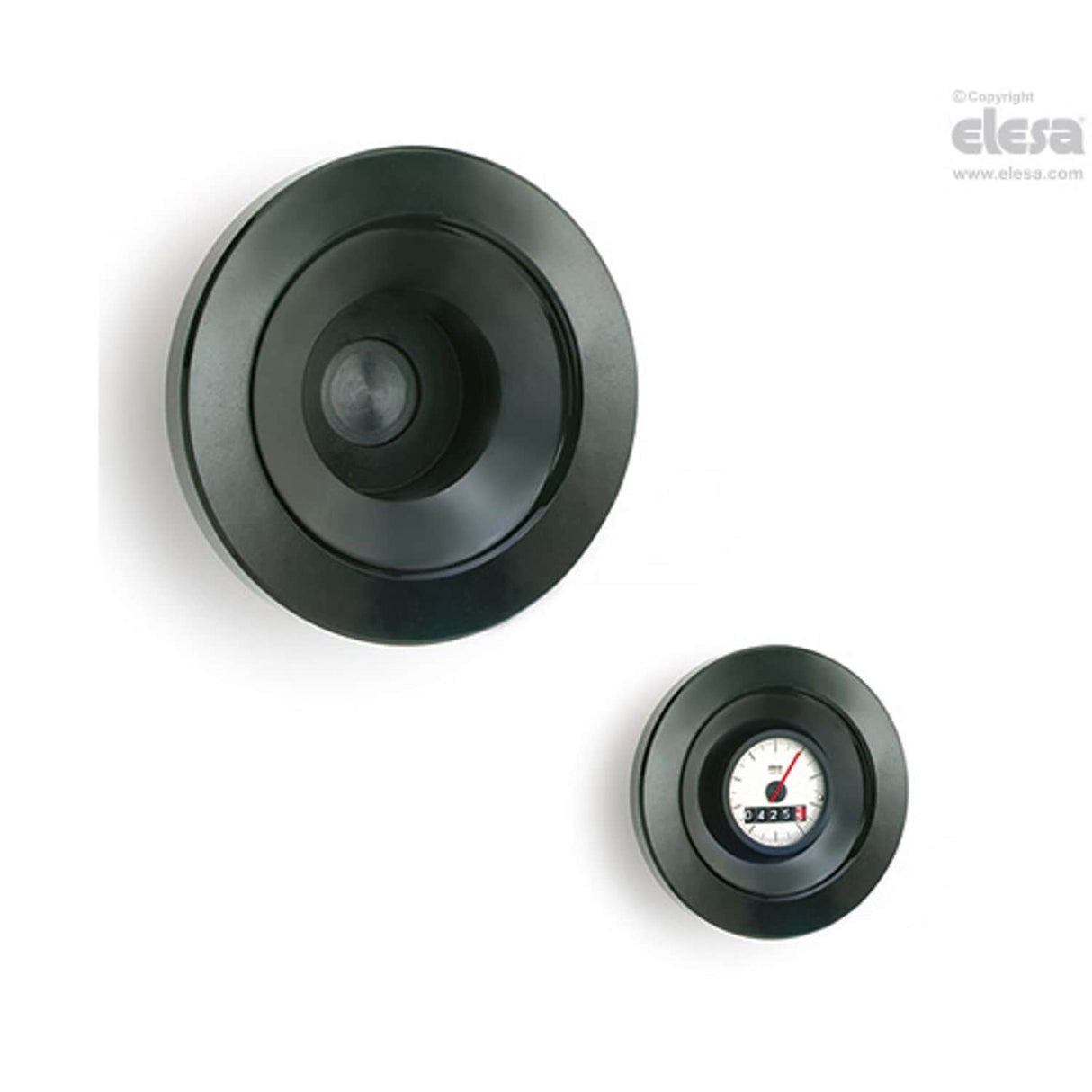

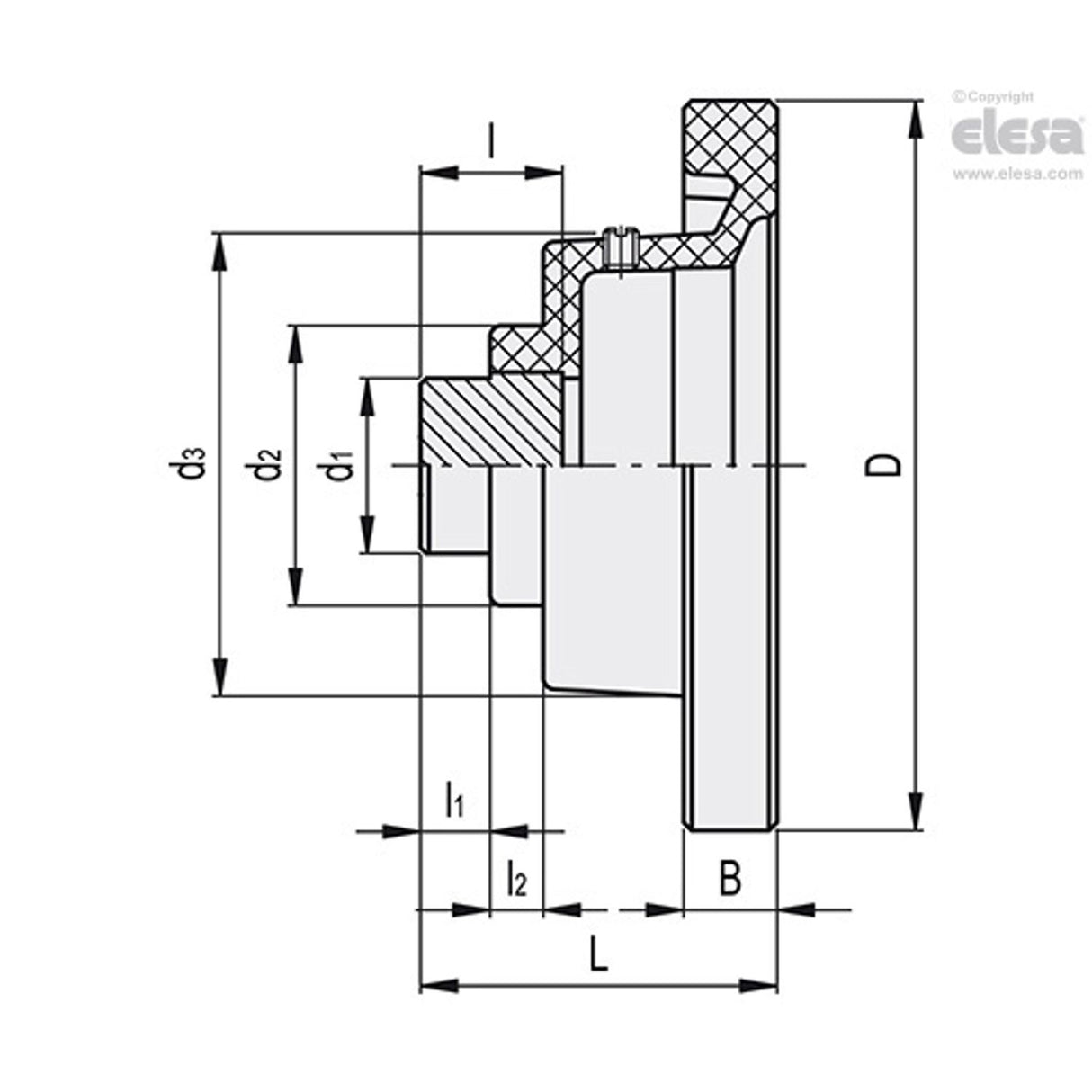

VDC-XX Handwheels, for position indicators, Duroplast, For gravity drive indicators, without handle For product drawing and dimensions refer to pdf Item data sheet.
| B | 19 |
| D | 180 |
| MFR Part No. | VDC.180-GXX5 |
| d2 | 56 |
| l2 | 12 |
| Weight | 940g |
| d3 | 127 |
| b | 8 |
| t | 28.3 |
| Diameter | 180mm |
| L | 78 |
| l | 34 |
| d1 | 36 |
| l1 | 14 |
