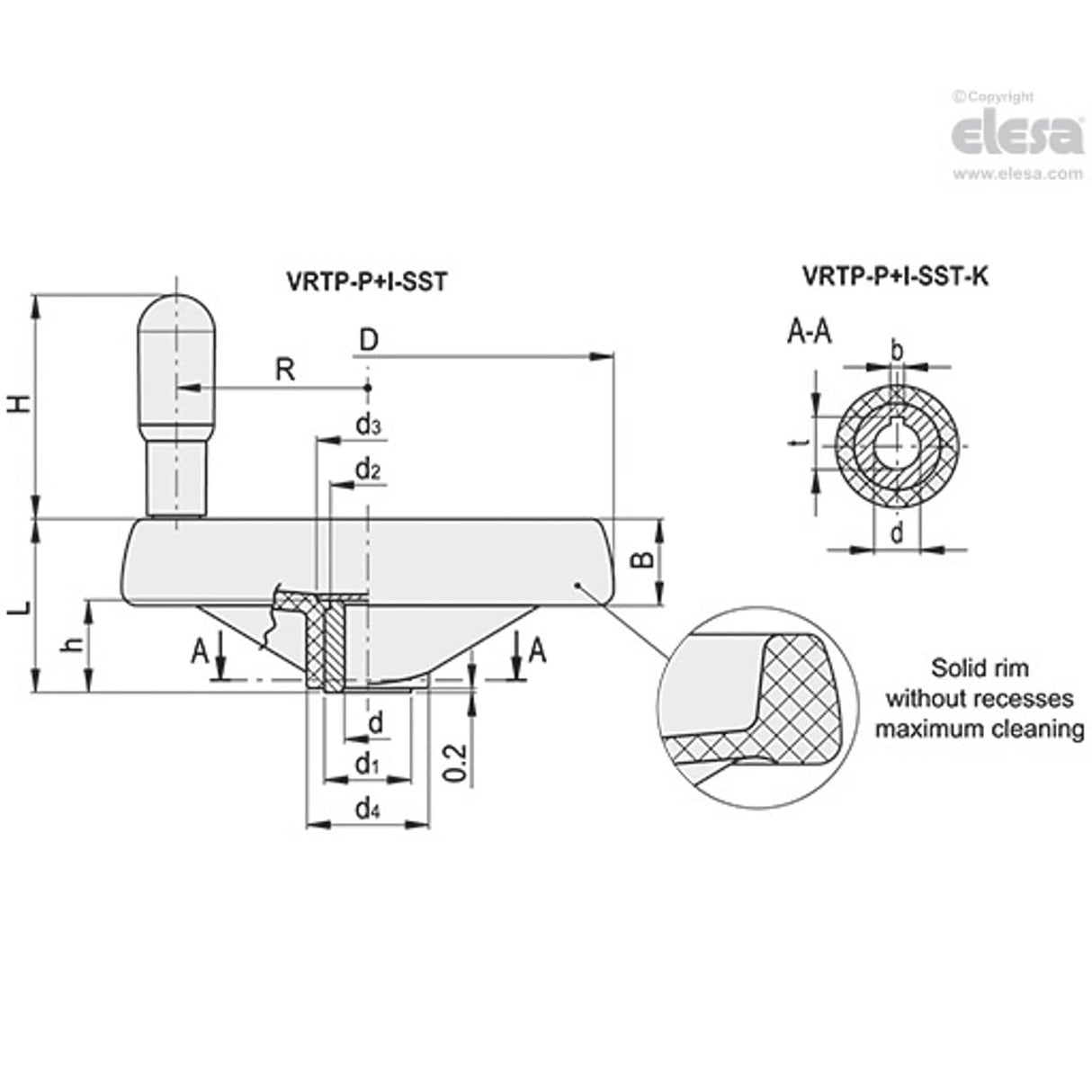

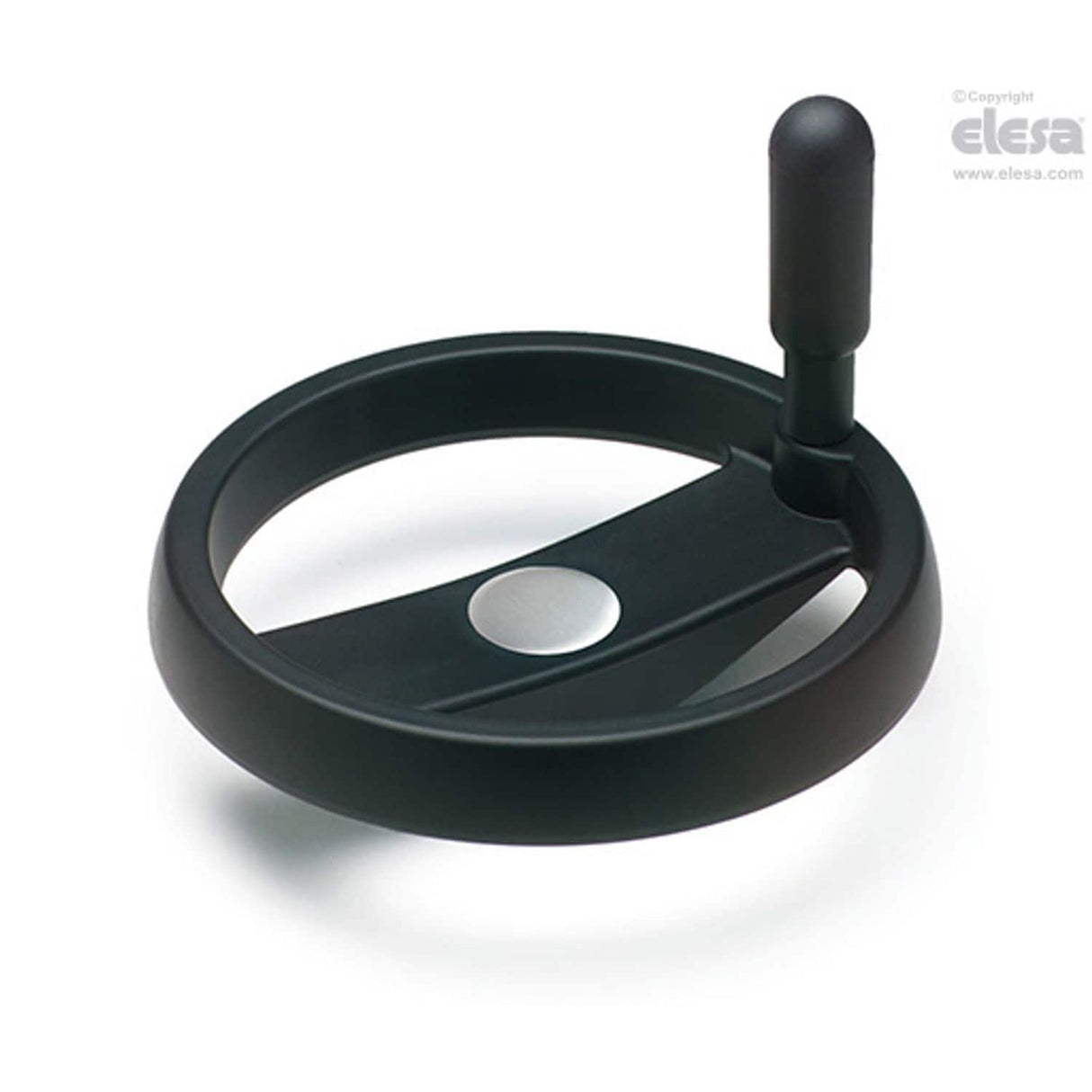

VRTP-P-SST Spoked handwheels with solid section, Technopolymer, Revolving handle For product drawing and dimensions refer to pdf Item data sheet.
| L | 35 |
| d4 | 25 |
| b | 2 |
| H | 45 |
| d(H7) | 8 |
| Weight | 110g |
| MFR Part No. | VRTP.80-P+I-SST-8 |
| D | 80 |
| B | 18 |
| d1 | 18 |
| R | 29 |
| d3 | 20.5 |
| d2 | 16 |
| L# | 5J |
| Diameter | 80mm |
| C# | 32Nm |
| h | 17 |
| t | 9 |
