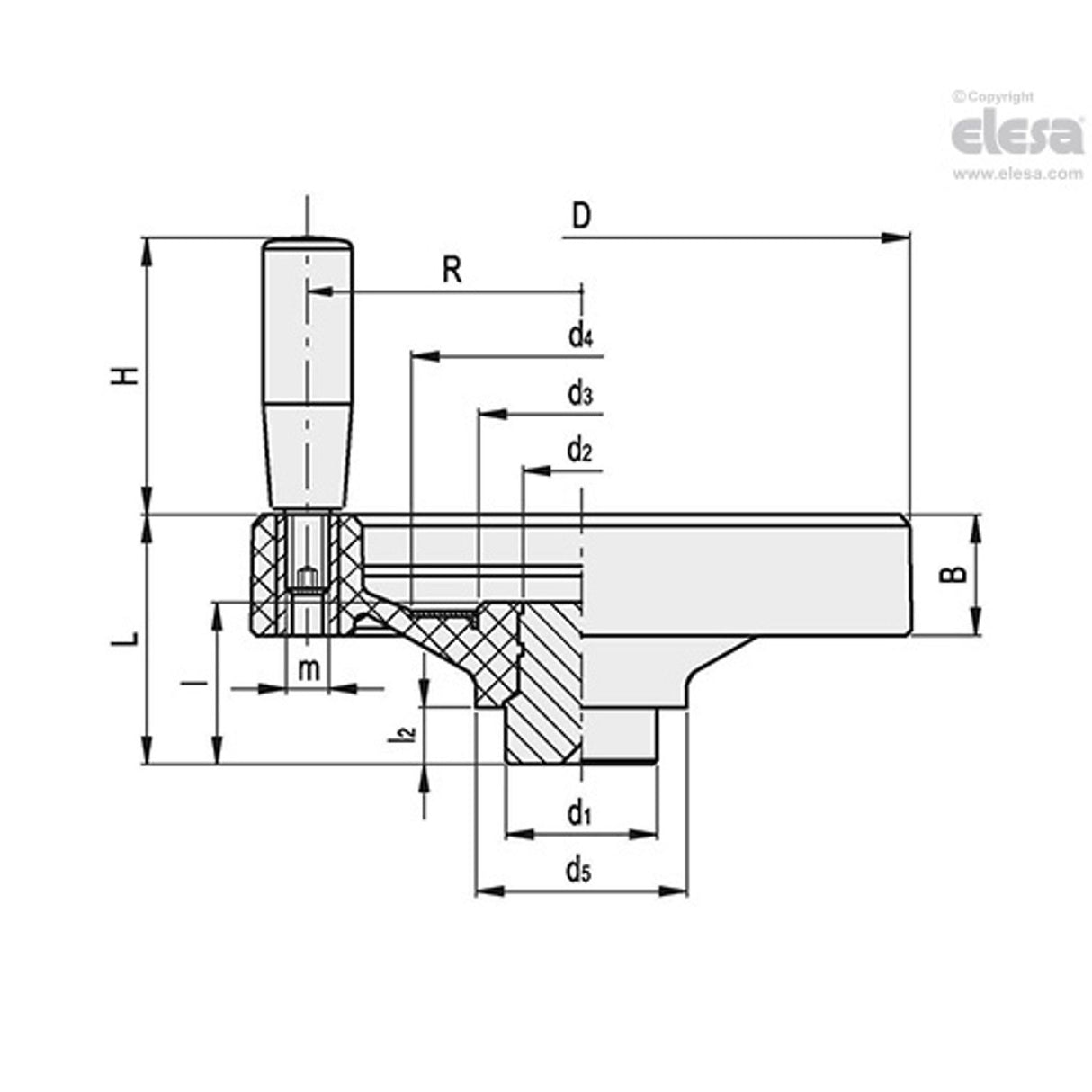

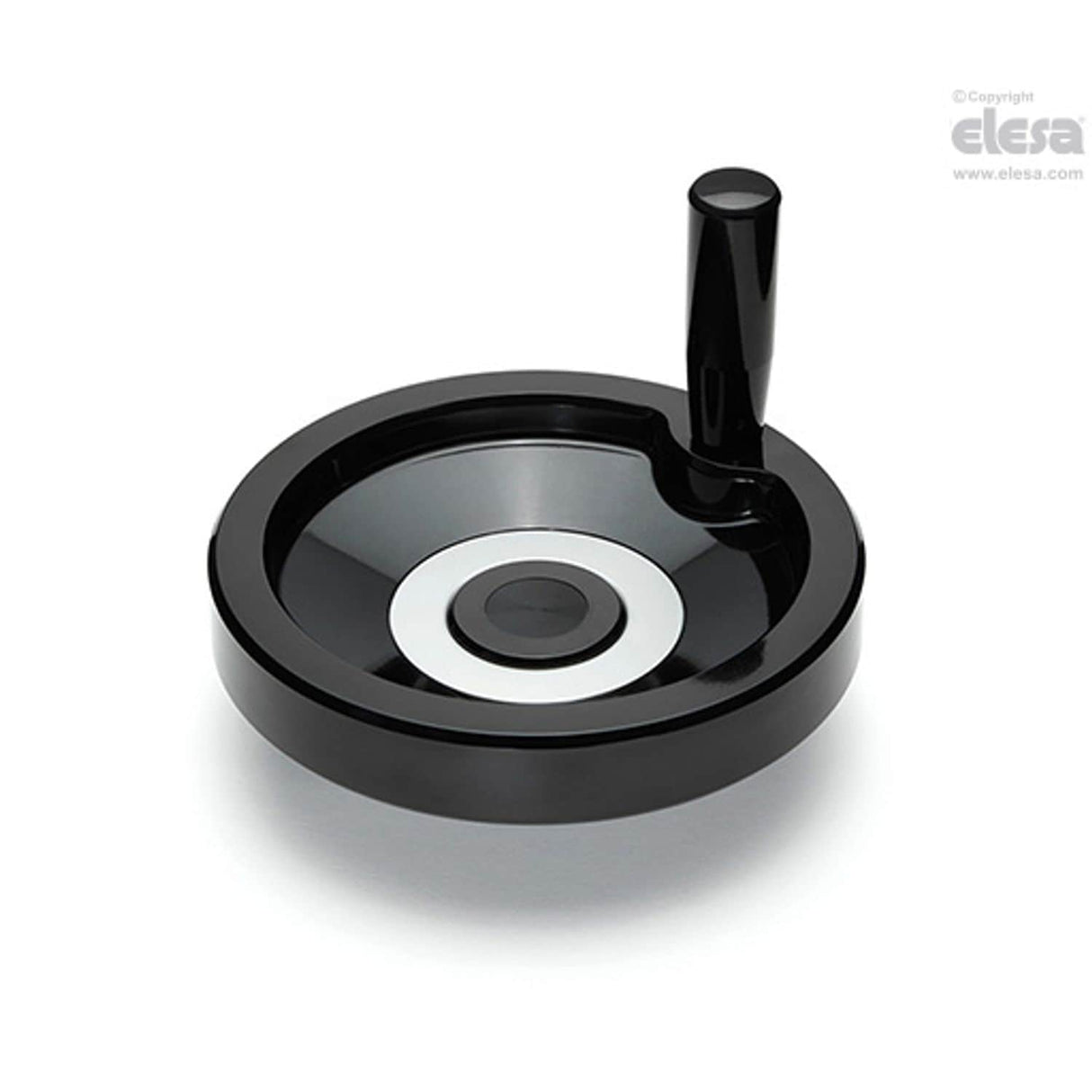

VDN.FP Solid handwheels, Duroplast, steel hub, Revolving handle, solid hub For product drawing and dimensions refer to pdf Item data sheet.
| d1 | 20 |
| d2 | 20 |
| d4 | 31 |
| L | 28 |
| R | 24 |
| H | 40 |
| MFR Part No. | VDN.63 FP+I |
| Diameter | 63mm |
| Weight | 147g |
| C# | 75Nm |
| l2 | 10 |
| m | M6 |
| d5 | 28 |
| l | 24 |
| L# | 4J |
| D | 63 |
| B | 13 |
