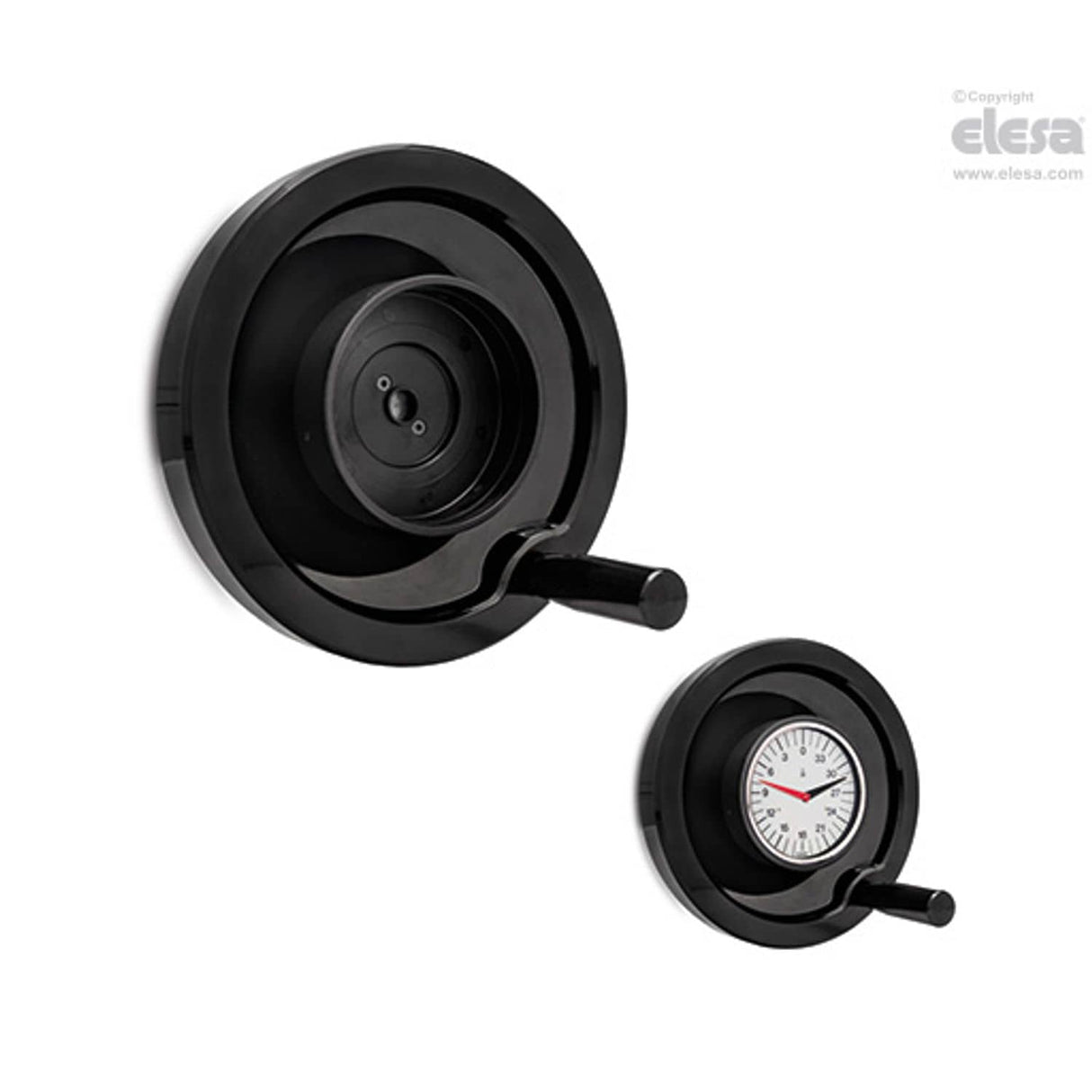

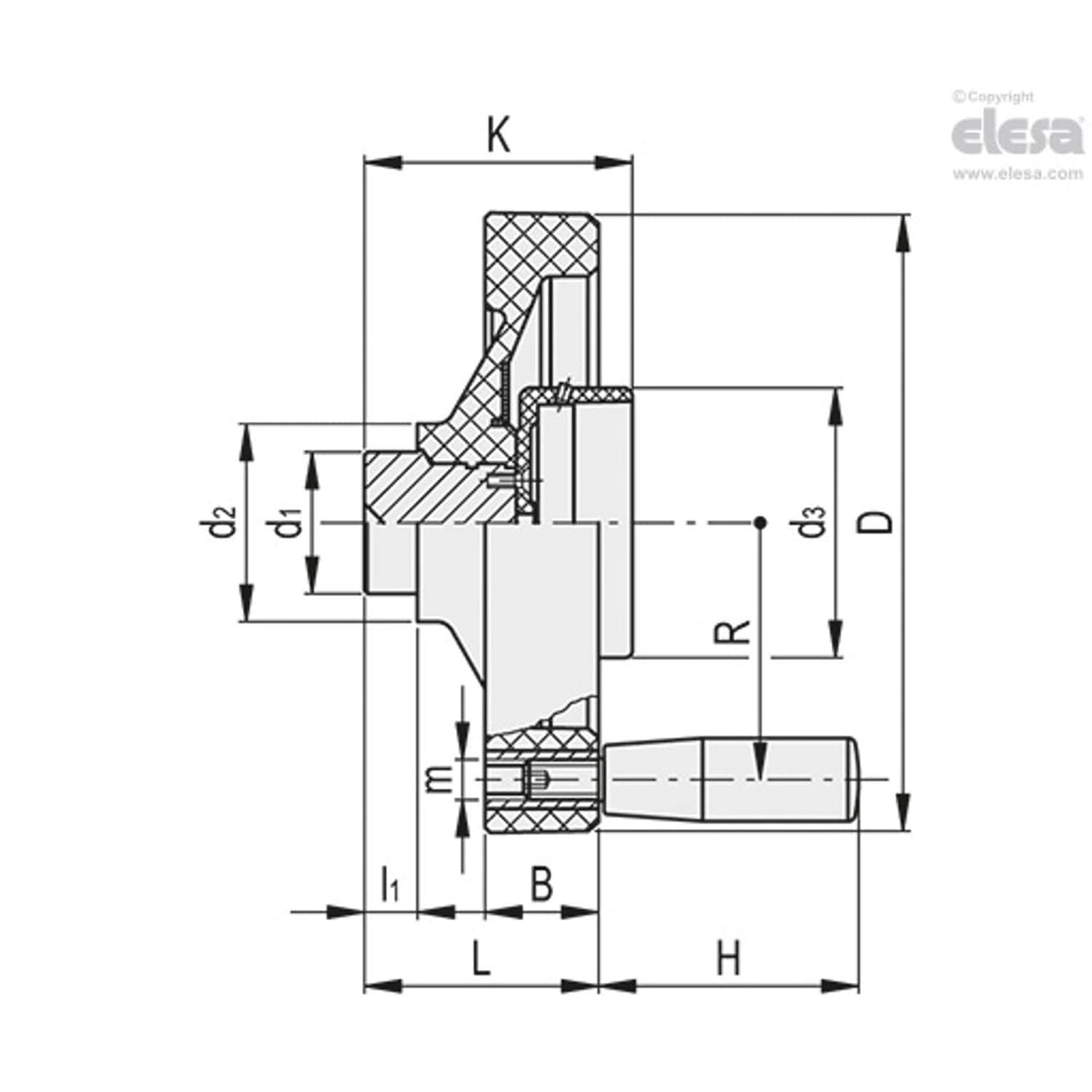

VDN-XX Handwheels, for position indicators, Duroplast For product drawing and dimensions refer to pdf Item data sheet.
| p Max | 35 |
| Weight | 3161g |
| m | M10 |
| D | 301 |
| d3 | 122 |
| d Max | 42 |
| MFR Part No. | VDN.300-GXX5+I |
| l1 | 18 |
| d2 | 82 |
| B | 36 |
| K | 98 |
| d1 | 58 |
| R | 132 |
| H | 90 |
| L | 87 |
| Diameter | 301mm |
