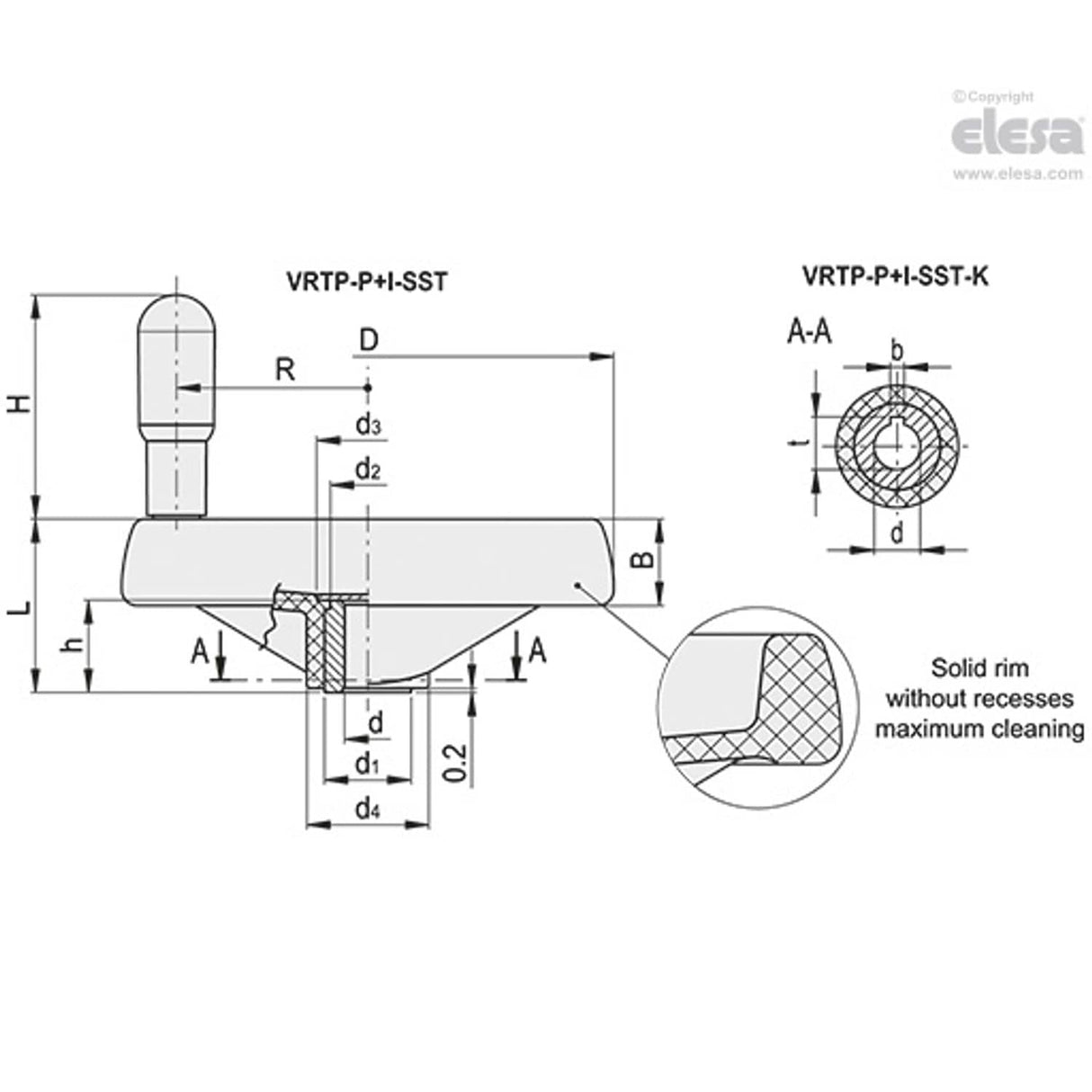

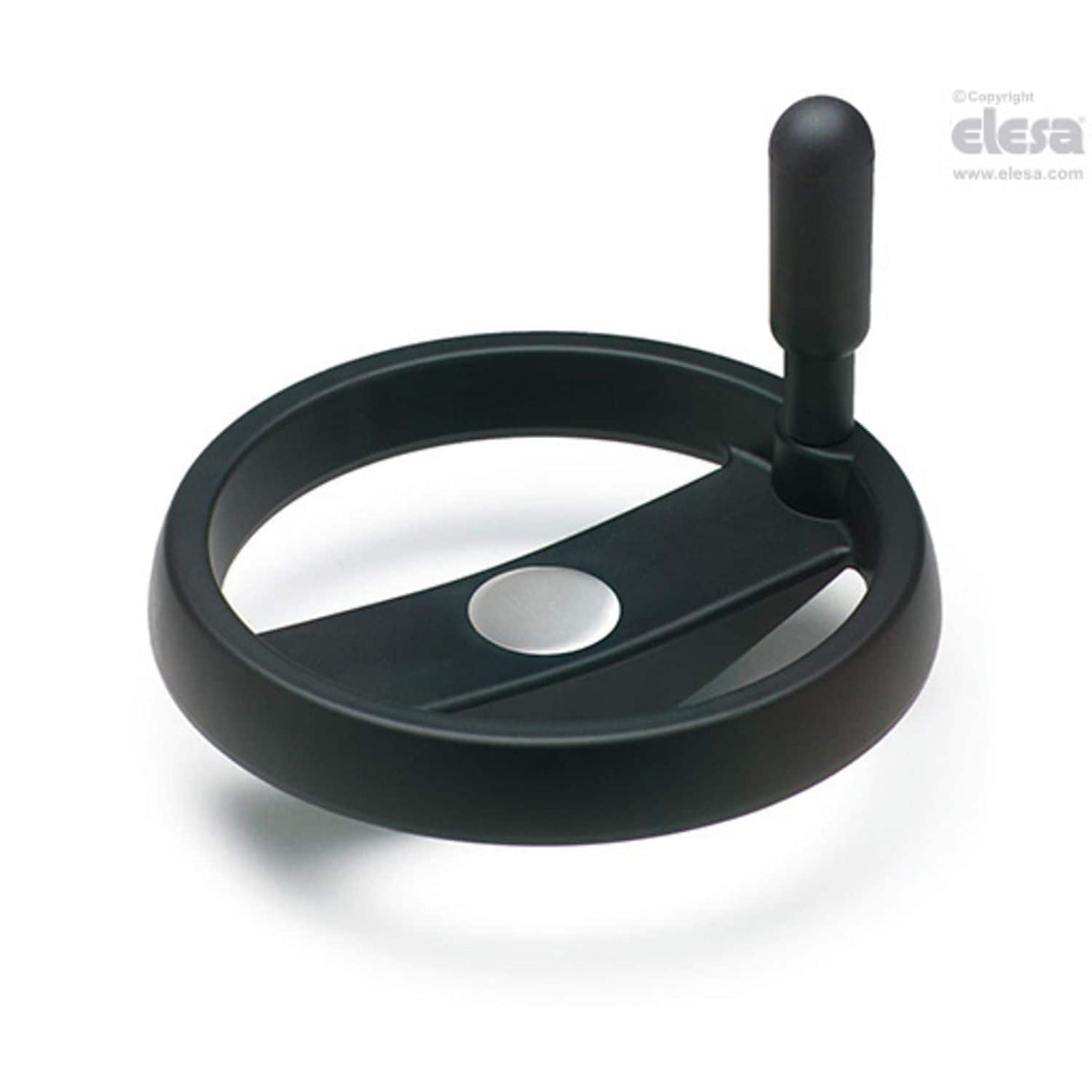

VRTP-P-SST Spoked handwheels with solid section, Technopolymer, Revolving handle For product drawing and dimensions refer to pdf Item data sheet.
| d2 | 20 |
| d4 | 31 |
| Diameter | 125mm |
| C# | 94Nm |
| t | 13.8 |
| MFR Part No. | VRTP.125-P+I-SST-12-K |
| B | 22 |
| L | 44 |
| d3 | 26 |
| L# | 10J |
| d1 | 22 |
| R | 48 |
| H | 65 |
| h | 22 |
| d(H9) | 12 |
| Weight | 279g |
| D | 125 |
| b | 4 |
