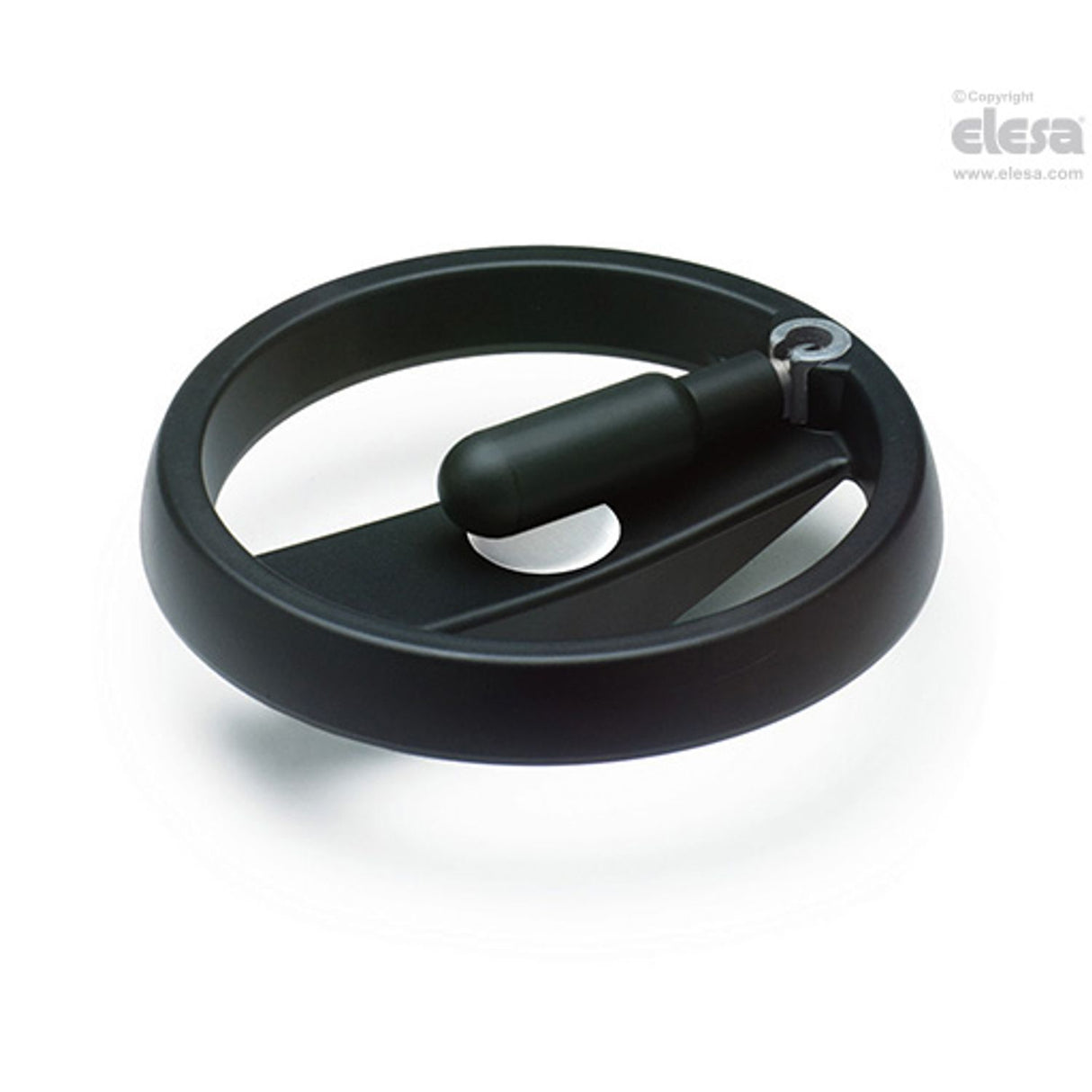

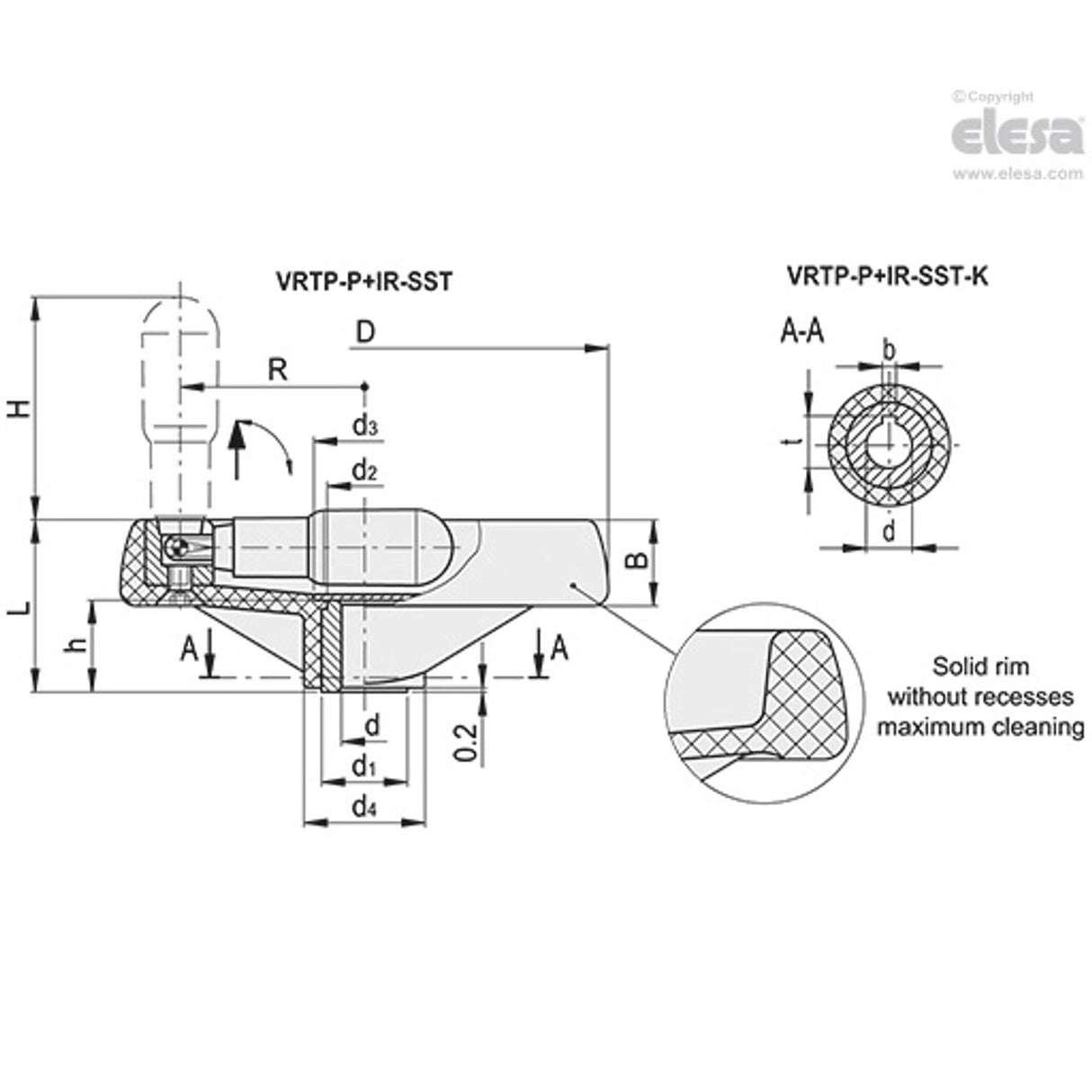

VRTP-P-SST Spoked handwheels with solid section, Technopolymer, Fold-away handle For product drawing and dimensions refer to pdf Item data sheet.
| d1 | 26 |
| MFR Part No. | VRTP.160-P+IR-SST-14-K |
| d(H9) | 14 |
| d4 | 40 |
| b | 5 |
| D | 160 |
| d2 | 24 |
| L | 51 |
| Diameter | 160mm |
| h | 27 |
| H | 73 |
| C# | 185Nm |
| d3 | 31 |
| Weight | 399g |
| L# | 15J |
| t | 16.3 |
| B | 25 |
| R | 65 |
