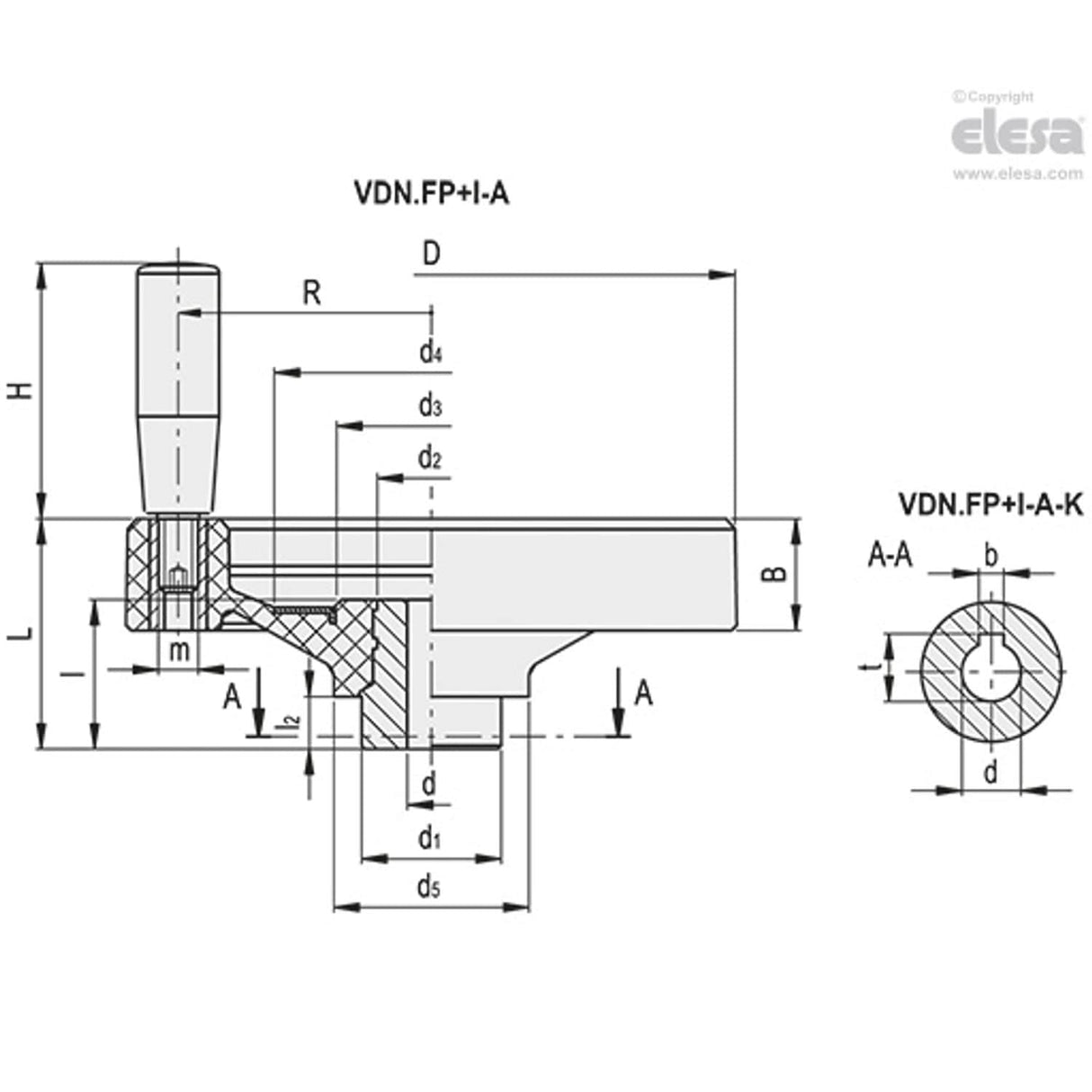

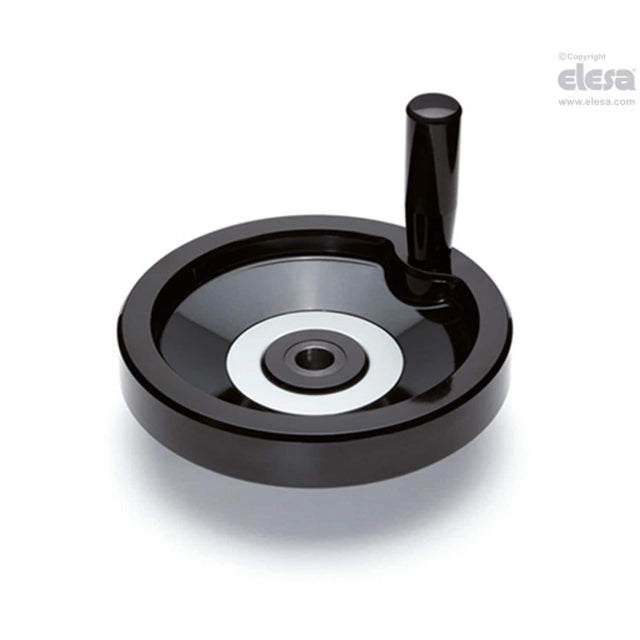

VDN.FP Solid handwheels, Duroplast, steel hub, Revolving handle, drilled hub For product drawing and dimensions refer to pdf Item data sheet.
| L | 46 |
| b | 3 |
| R | 39 |
| Diameter | 100mm |
| C# | 150Nm |
| d2 | 20 |
| H | 50 |
| d3 | 35 |
| d1 | 24 |
| l2 | 12 |
| d5 | 39 |
| l | 33.5 |
| d4 | 54 |
| Weight | 324g |
| B | 21 |
| m | M6 |
| MFR Part No. | VDN.100 FP+I-A10-K |
| t | 11.4 |
| d(H9) | 10 |
| L# | 6J |
| D | 100 |
