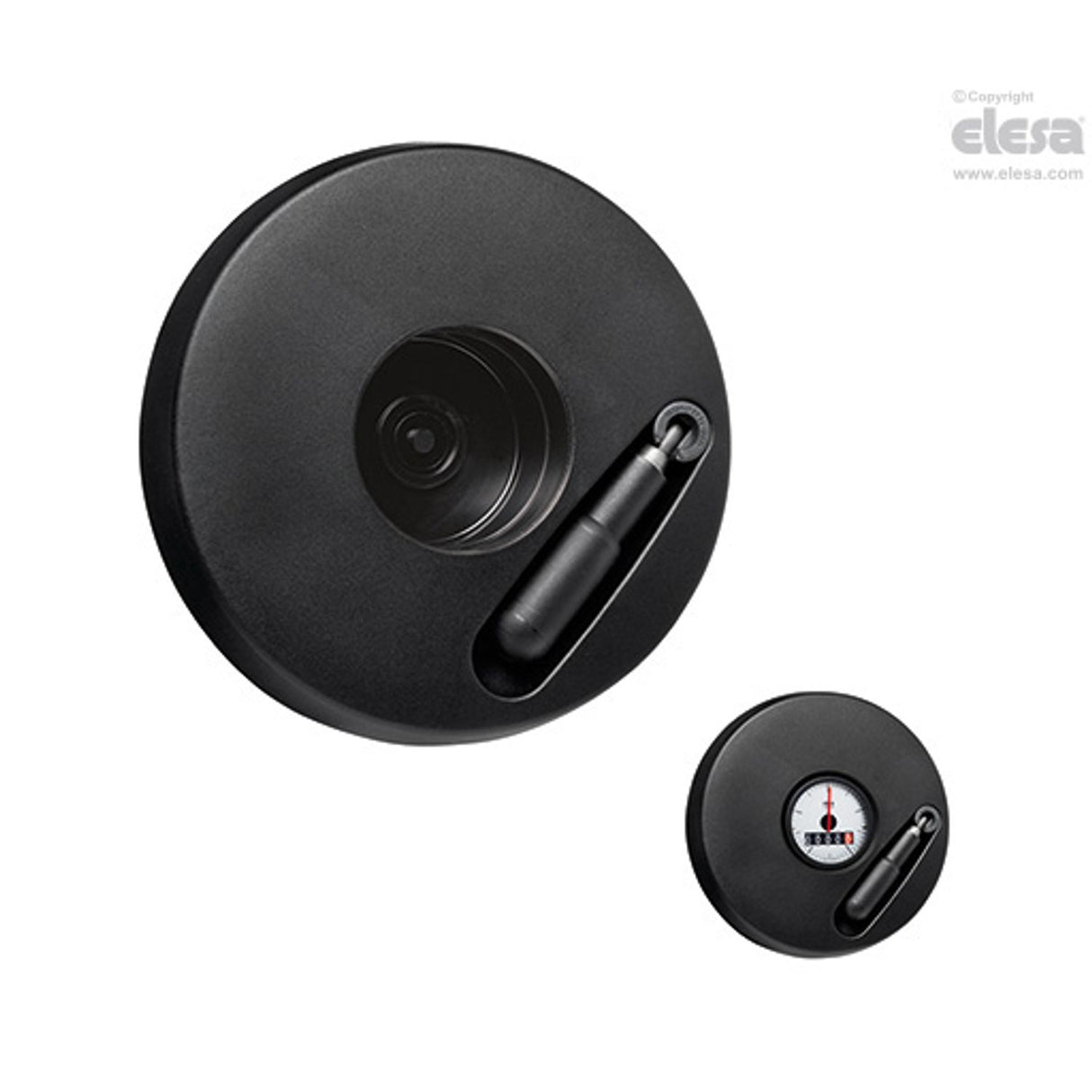

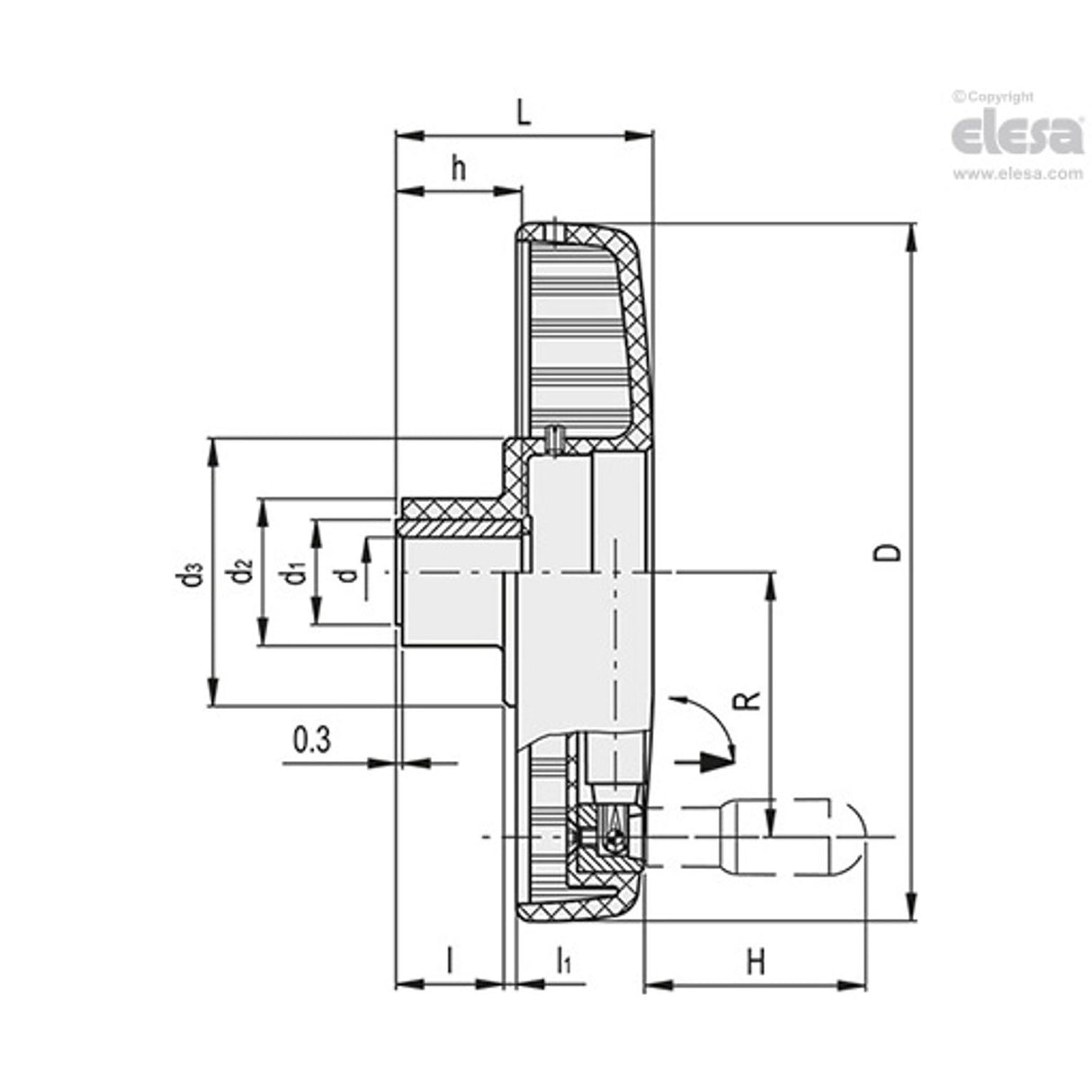

VDSC-XX Handwheels, for position indicators, technopolymer, Fold-away handle, black-oxide steel boss For product drawing and dimensions refer to pdf Item data sheet.
| d1 | 22 |
| D | 125 |
| d2 | 34 |
| h | 22 |
| l | 22 |
| Diameter | 125mm |
| d3 | 57.5 |
| d(H7) | 8 |
| R | 46 |
| MFR Part No. | VDSC.125-GXX1 A-8+IR |
| L | 59.5 |
| Weight | 290g |
| H | 45 |
| l1 | 11 |
