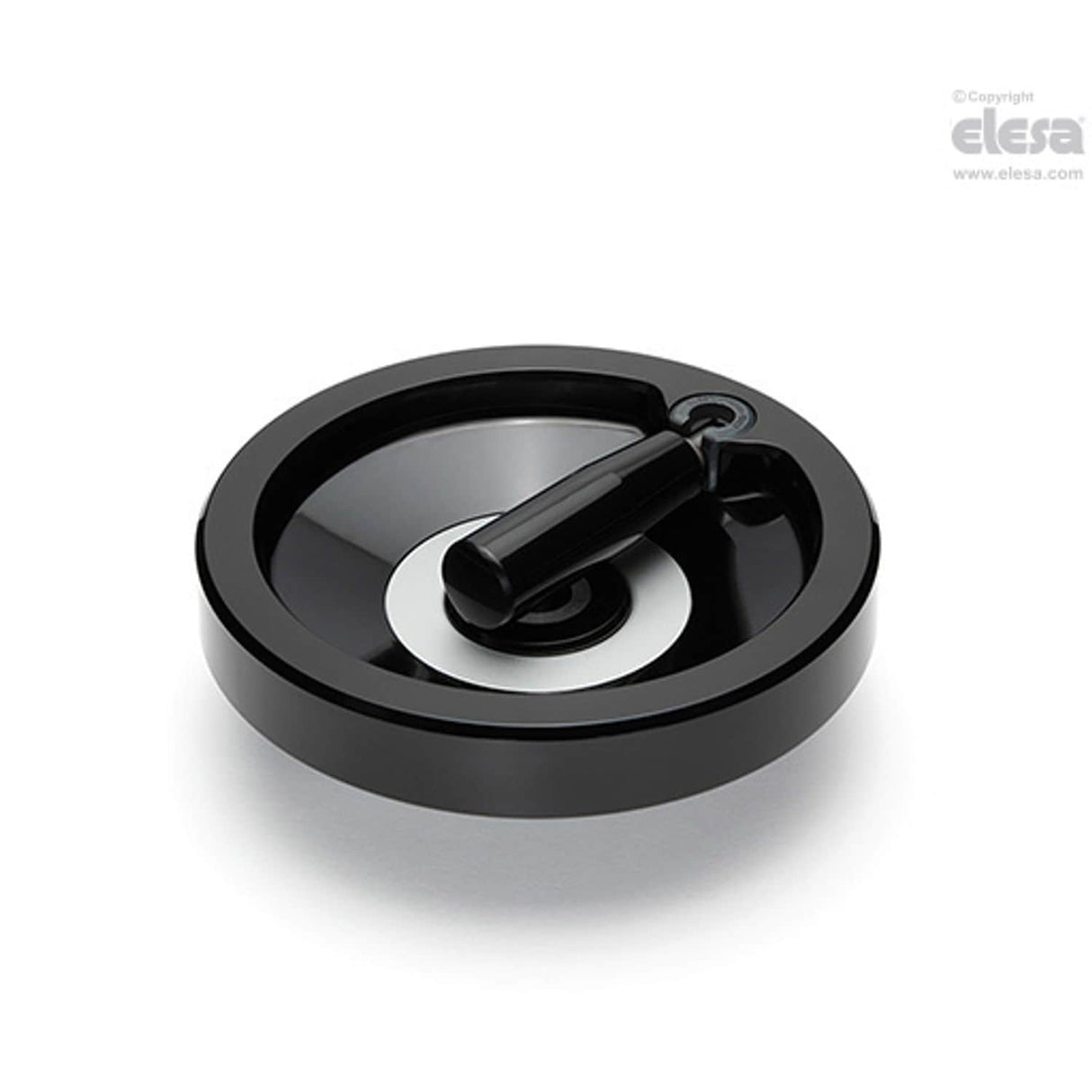

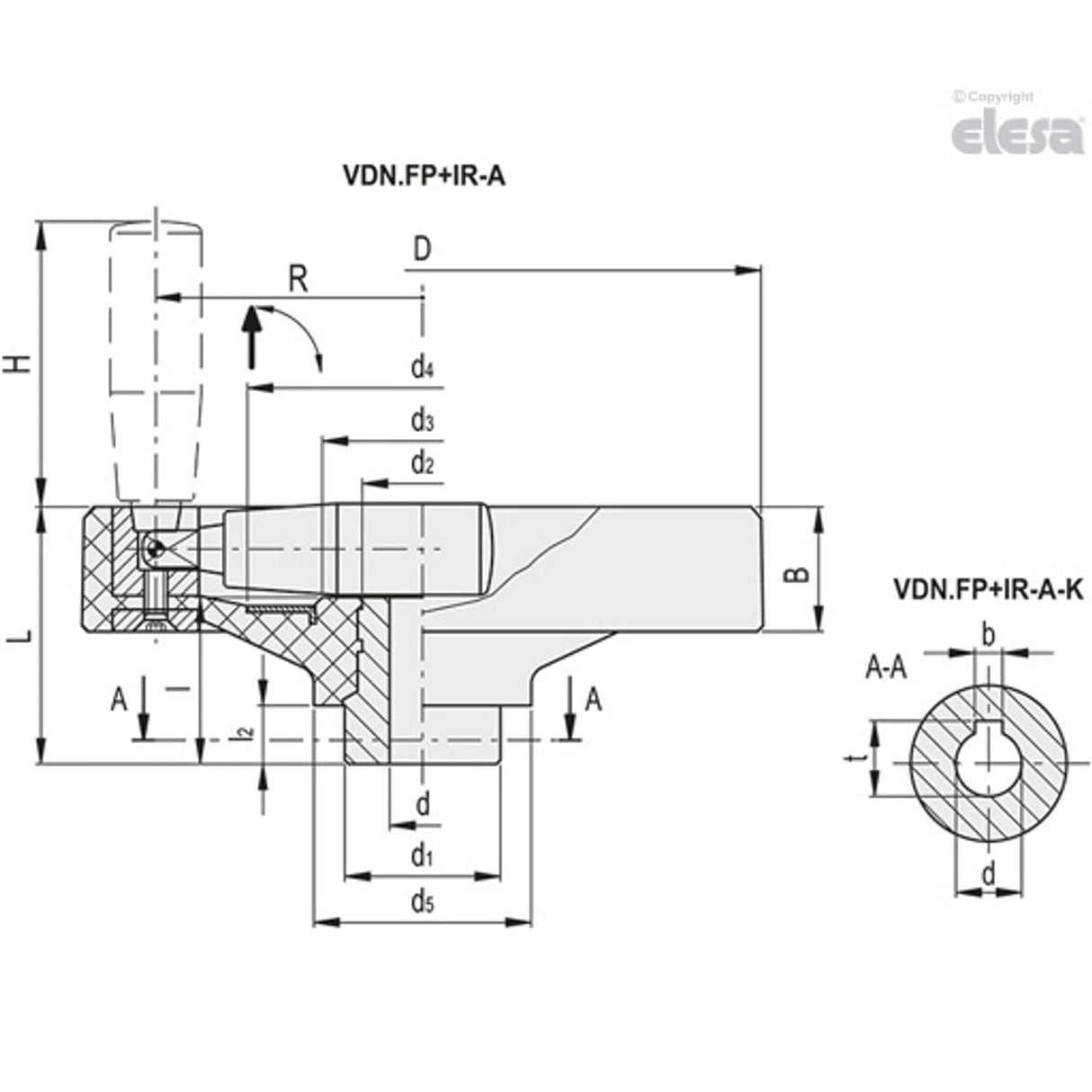

VDN.FP Solid handwheels, Duroplast, steel hub, Fold-away handle, drilled hub For product drawing and dimensions refer to pdf Item data sheet.
| l2 | 12 |
| d2 | 20 |
| D | 100 |
| L | 51 |
| d5 | 39 |
| R | 37 |
| C# | 150Nm |
| L# | 6J |
| MFR Part No. | VDN.100 FP+IR-A10 |
| Weight | 332g |
| B | 26 |
| l | 33.5 |
| d4 | 54 |
| H | 56 |
| d(H7) | 10 |
| d3 | 35 |
| Diameter | 100mm |
| d1 | 24 |
