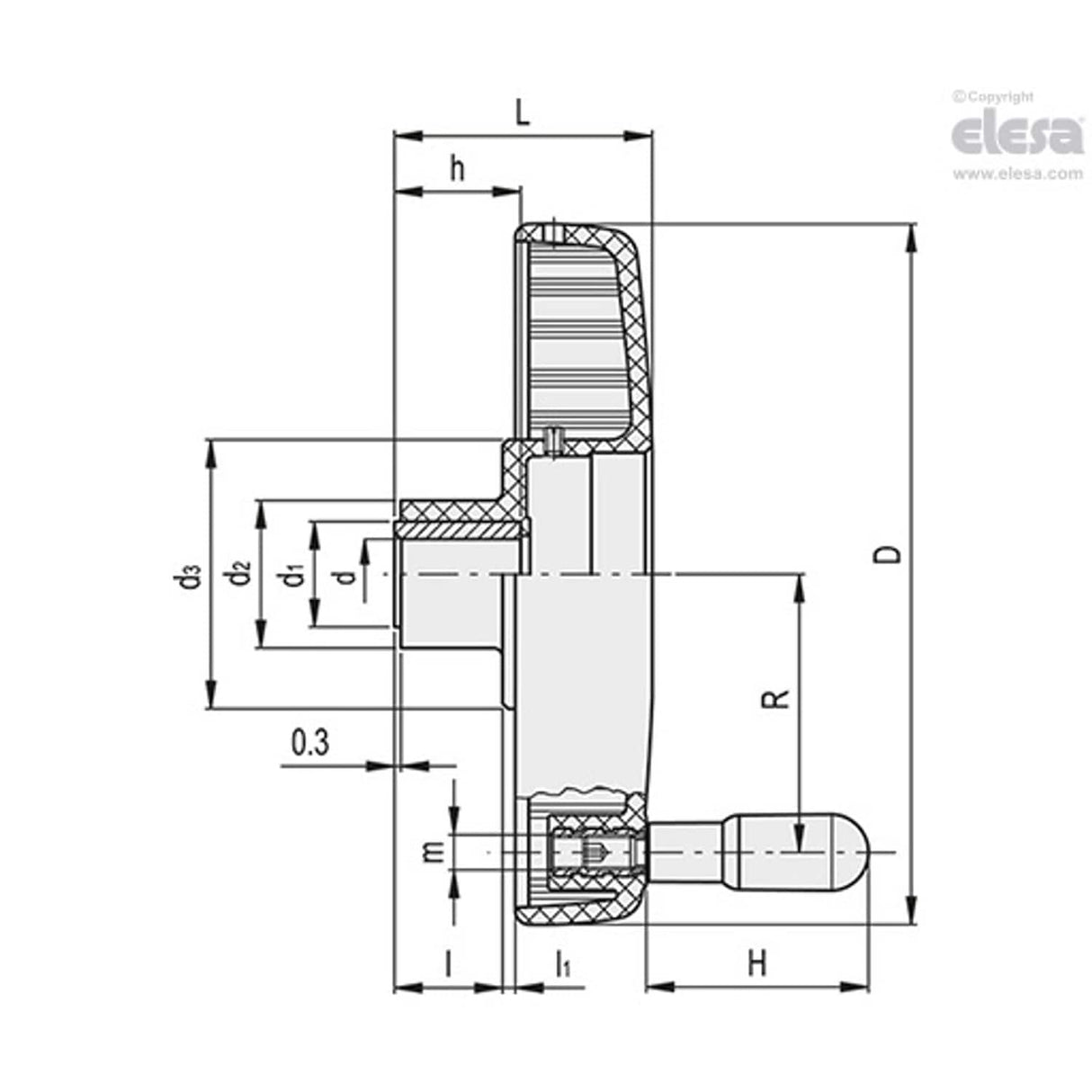

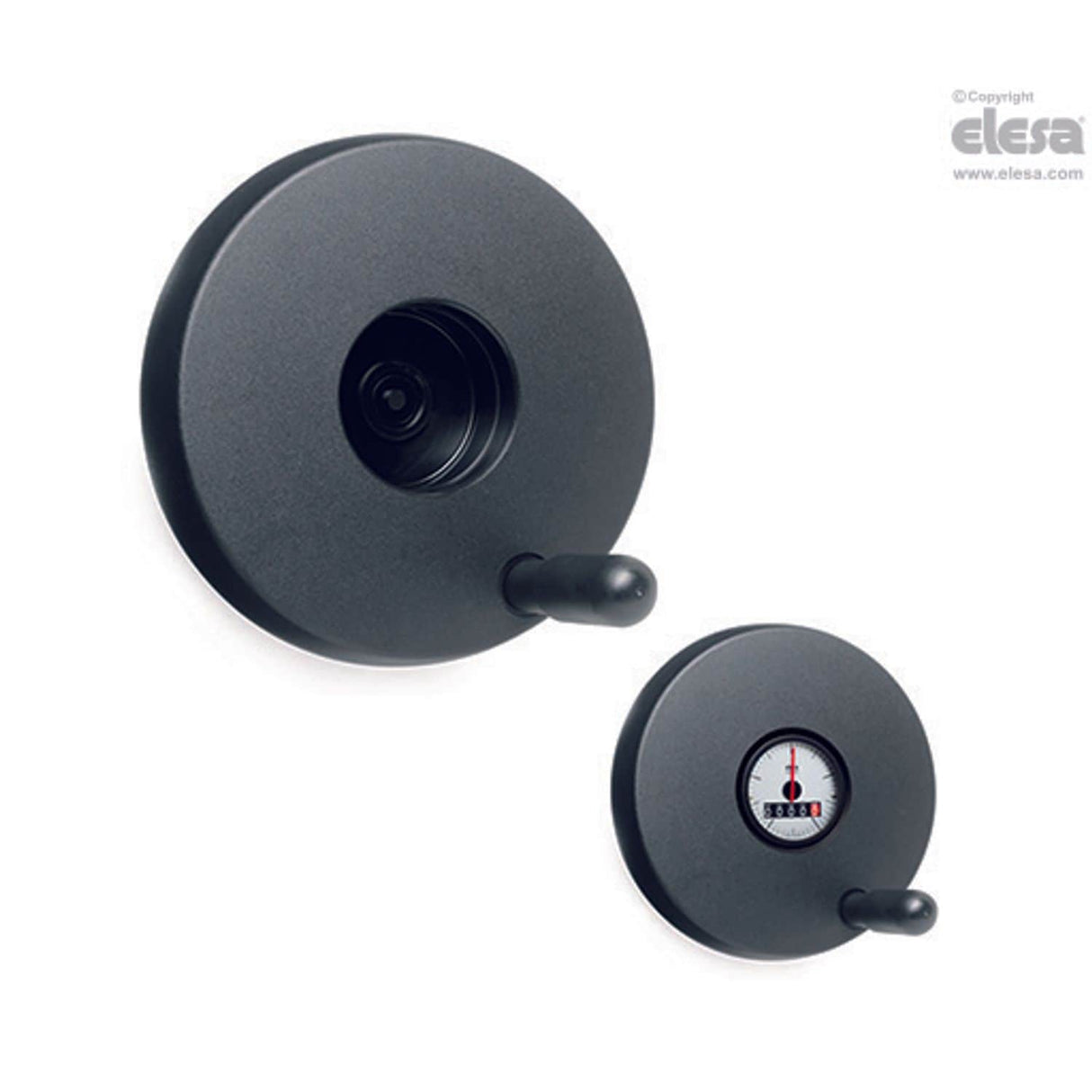

VDSC-XX Handwheels, for position indicators, technopolymer, With revolving handle, black-oxide steel boss For product drawing and dimensions refer to pdf Item data sheet.
| l1 | 14 |
| m | M8 |
| h | 22 |
| H | 65 |
| R | 48.5 |
| d3 | 76 |
| D | 125 |
| Weight | 334g |
| l | 22 |
| Diameter | 125mm |
| L | 63 |
| d(H7) | 8 |
| MFR Part No. | VDSC.125-GXX2 A-8+I |
| d2 | 35 |
| d1 | 22 |
