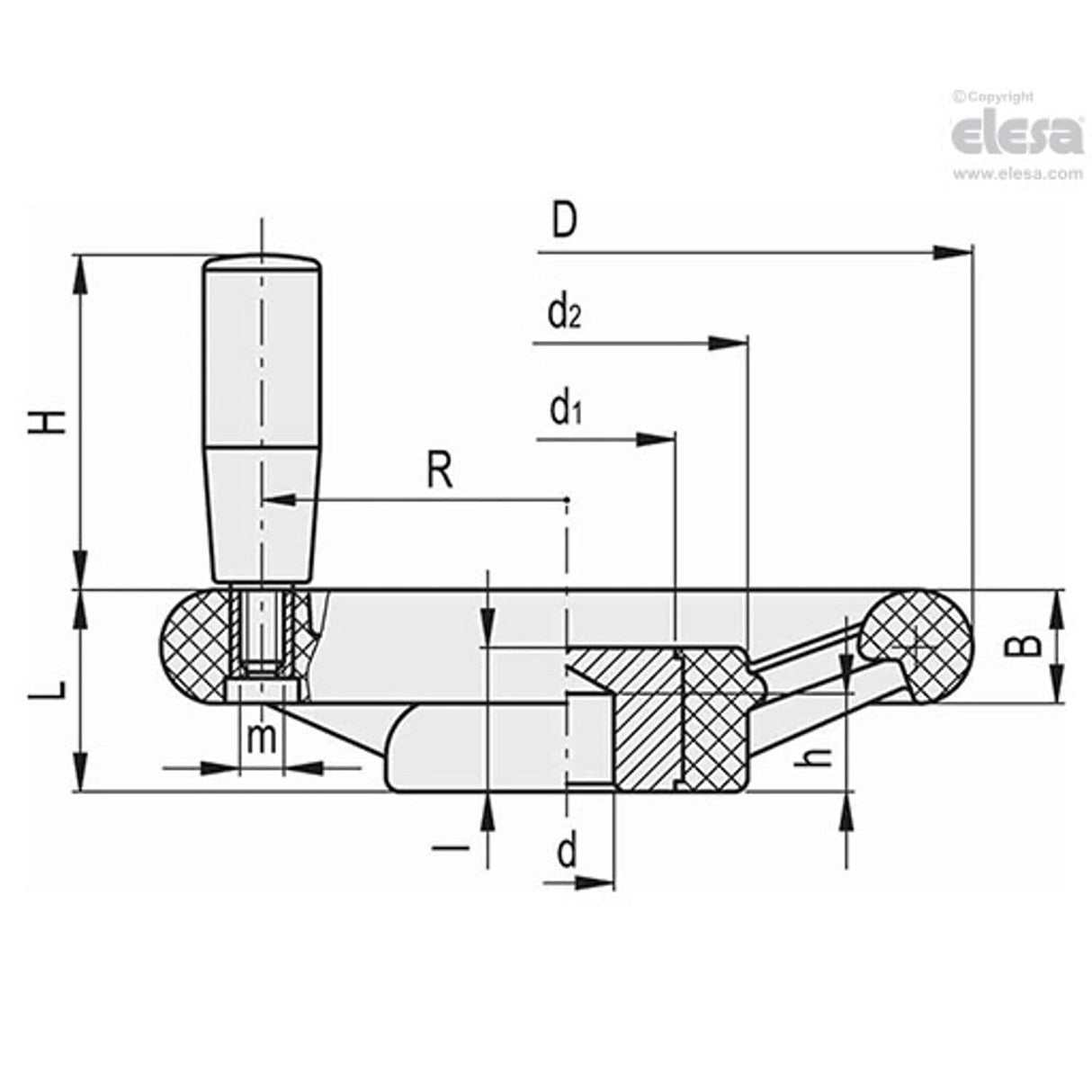

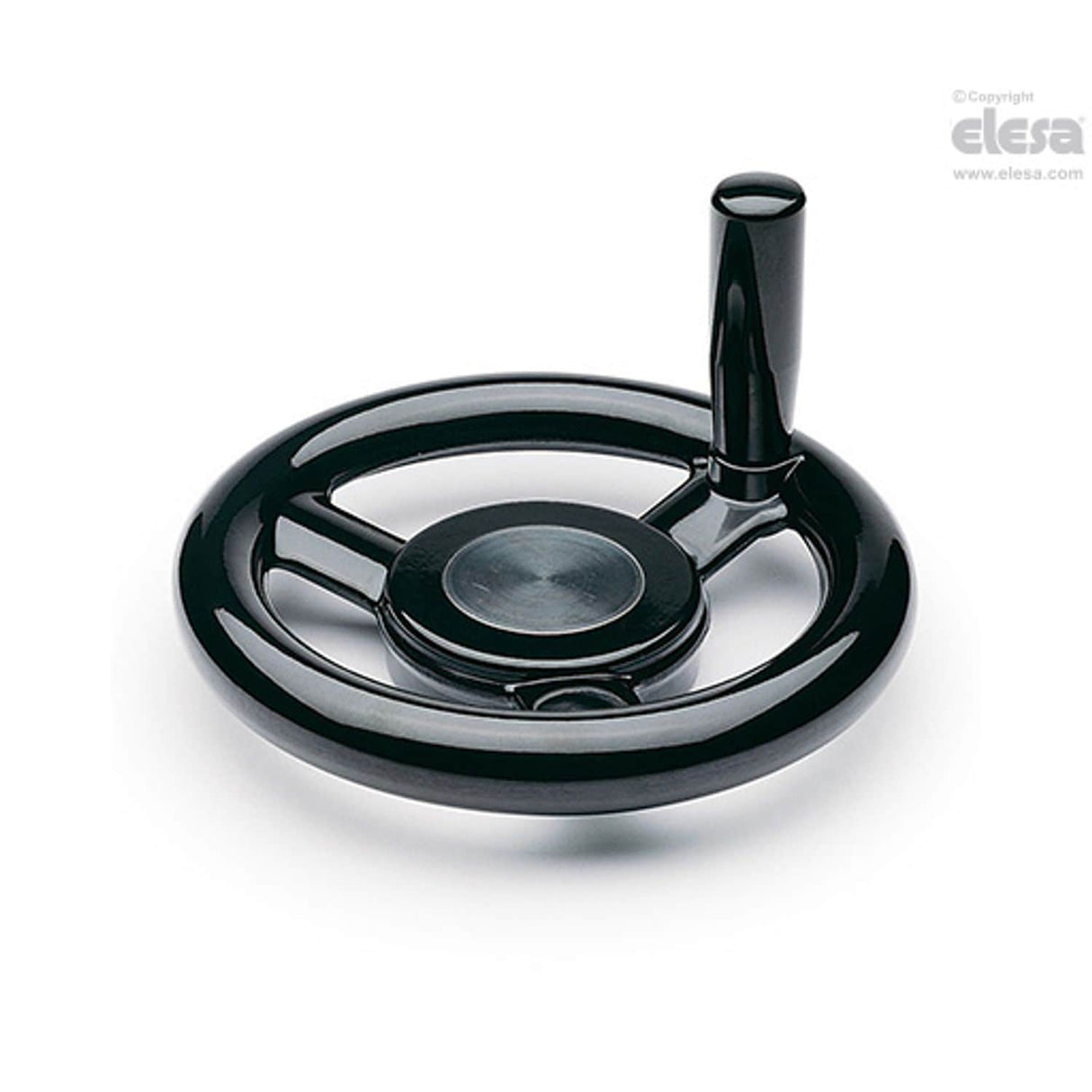

VRU. Spoked handwheels, Duroplast, large diameter hub, Revolving handle For product drawing and dimensions refer to pdf Item data sheet.
| D | 160 |
| B | 22 |
| d1 | 42 |
| l | 26 |
| Diameter | 160mm |
| m | M8 |
| L# | 13J |
| h | 17 |
| L | 35 |
| d2 | 70 |
| d(H9) | 10 |
| H | 65 |
| MFR Part No. | VRU.160+I |
| Weight | 664g |
| C# | 350Nm |
| R | 60 |
