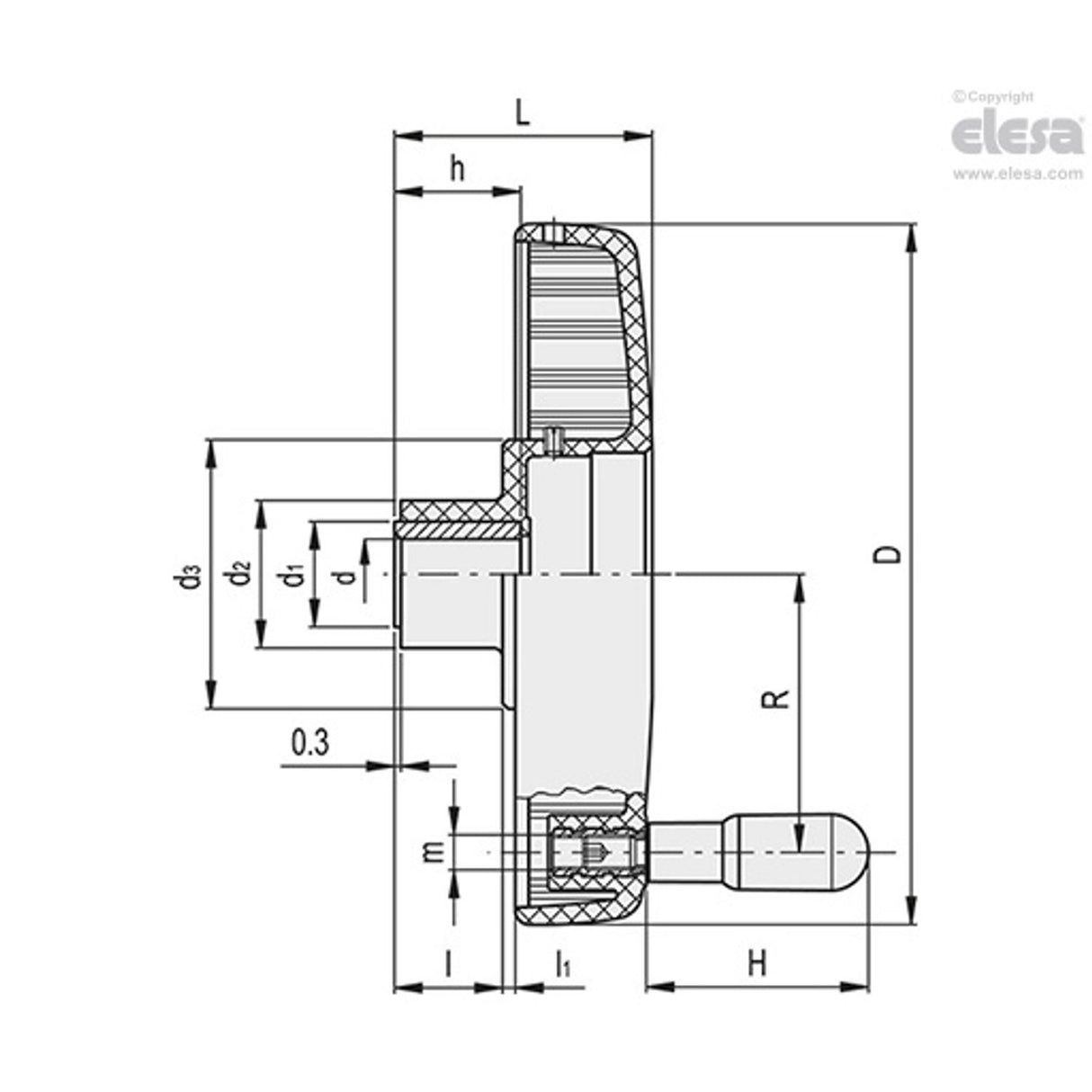

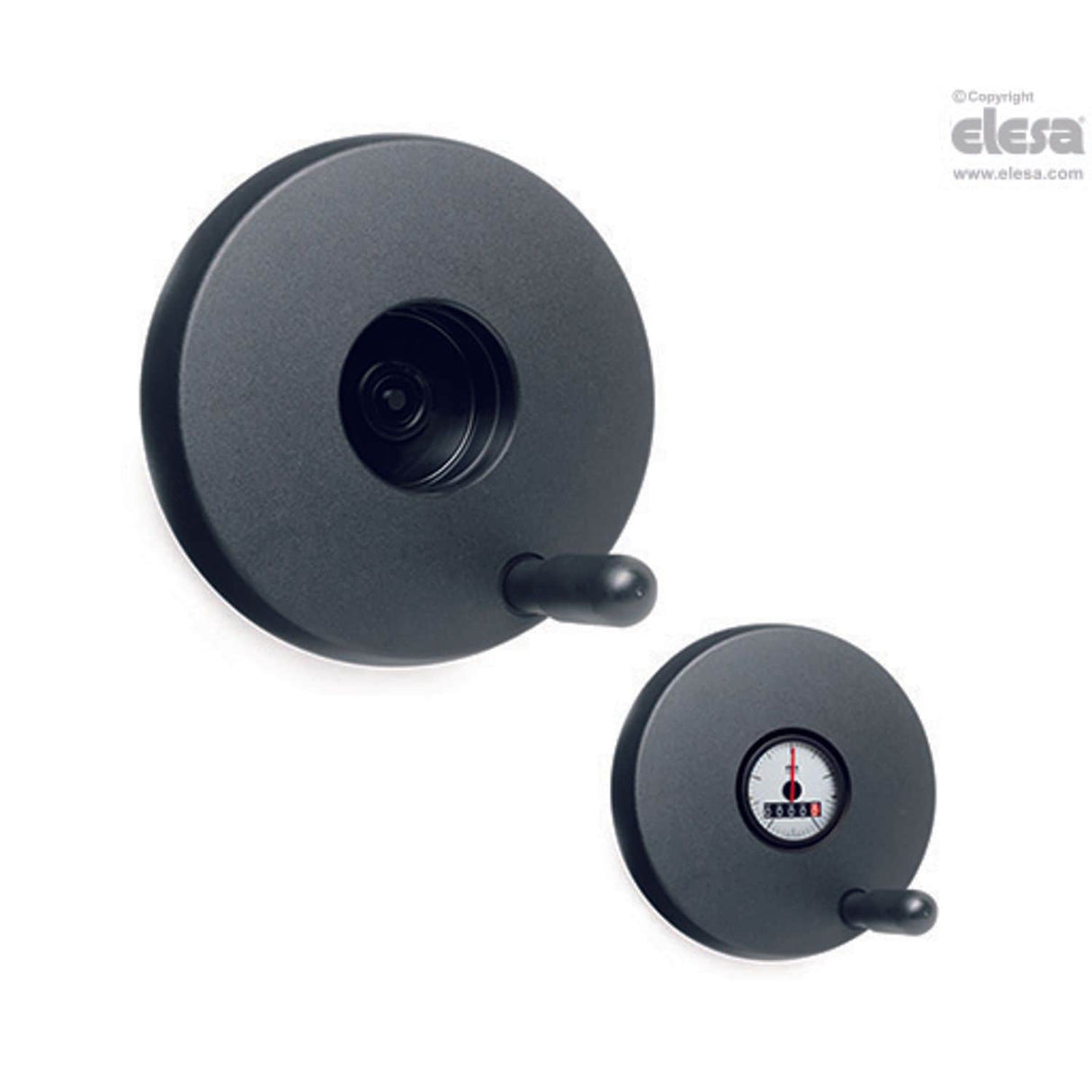

VDSC-XX Handwheels, for position indicators, technopolymer, With revolving handle, black-oxide steel boss For product drawing and dimensions refer to pdf Item data sheet.
| R | 80 |
| Diameter | 200mm |
| d(H7) | 16 |
| D | 200 |
| l | 30 |
| d3 | 76 |
| MFR Part No. | VDSC.200-GXX2 A-16+I |
| L | 70.5 |
| l1 | 2 |
| Weight | 680g |
| m | M10 |
| H | 90 |
| h | 34 |
| d2 | 42 |
| d1 | 30 |
