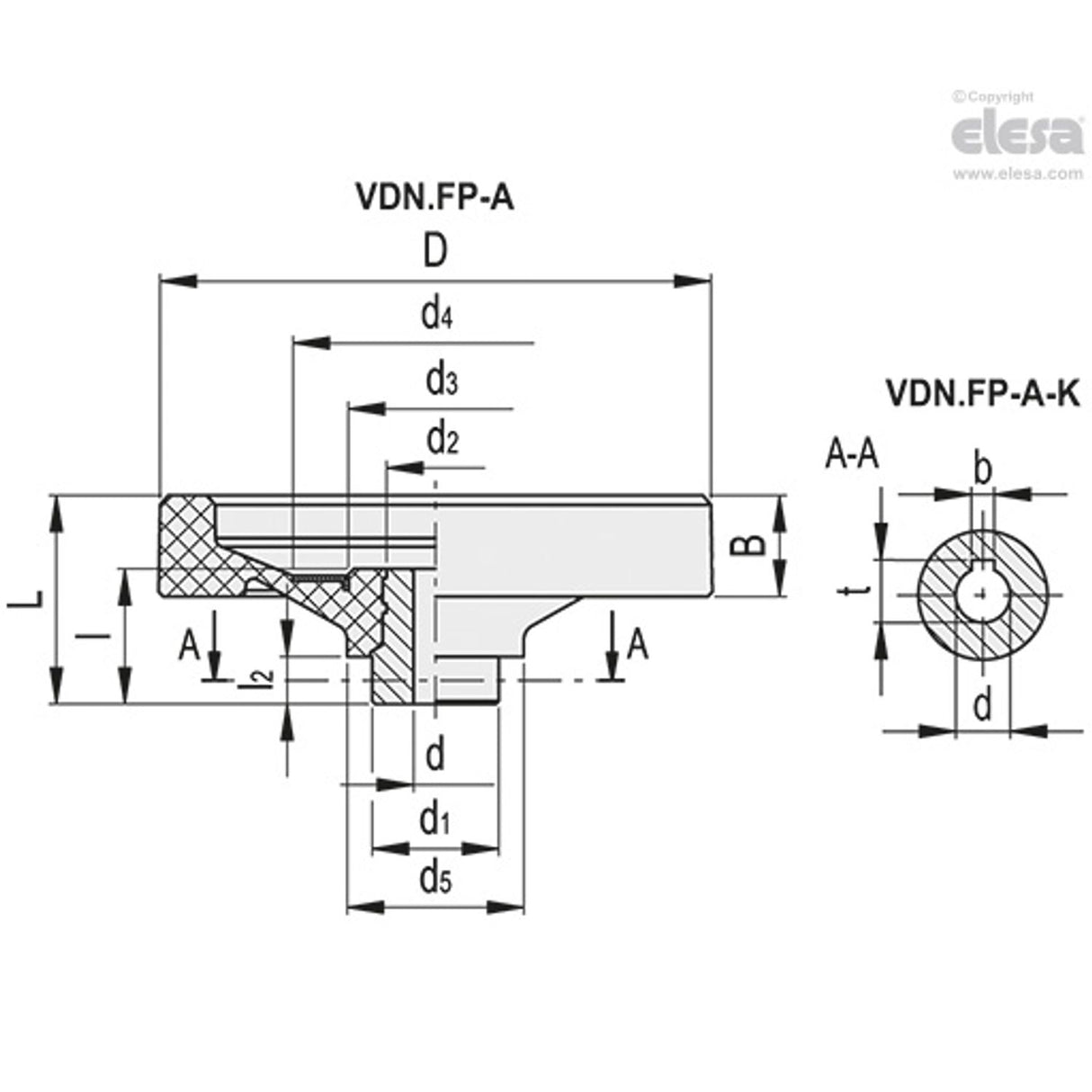

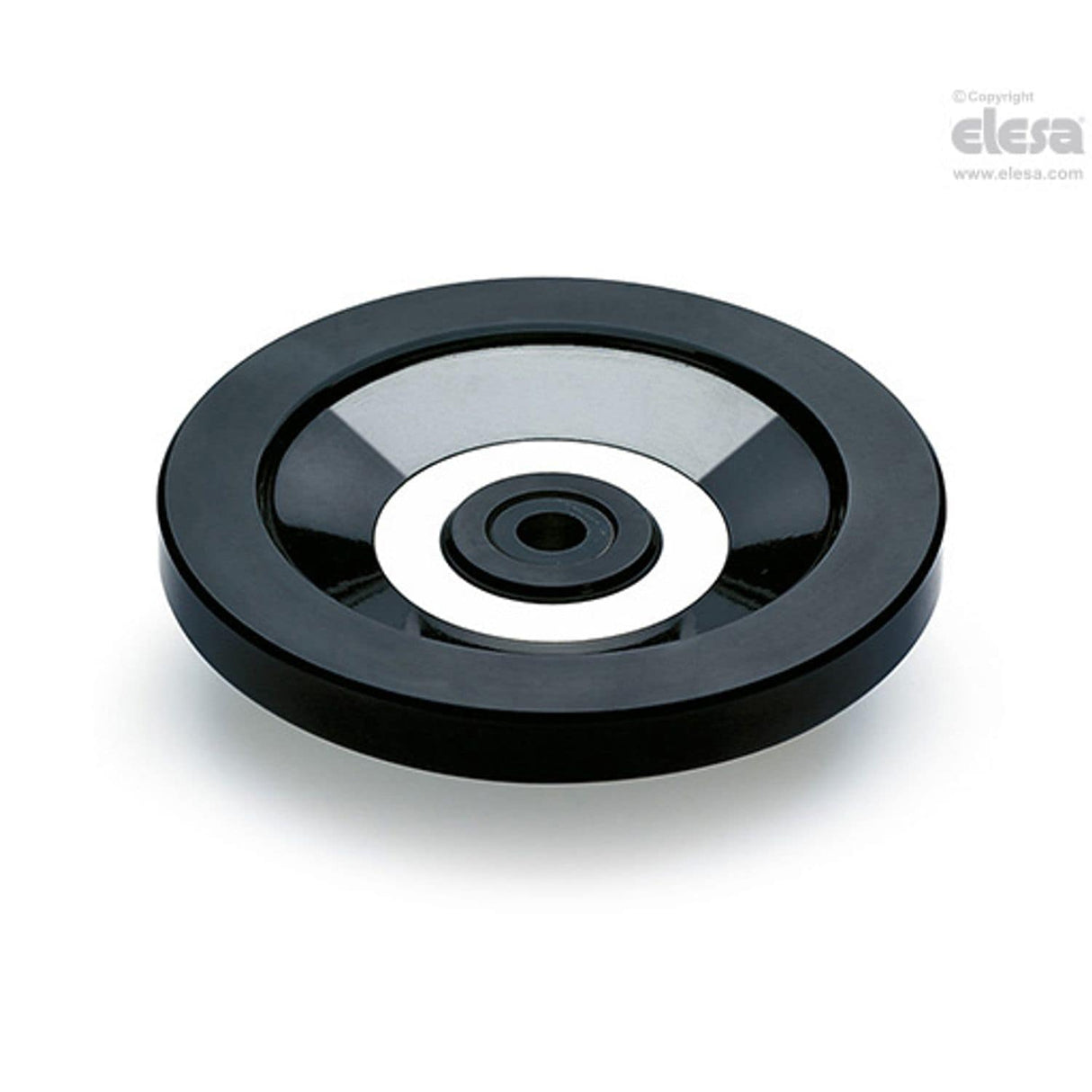

VDN.FP Solid handwheels, Duroplast, steel hub, Without handle, drilled hub For product drawing and dimensions refer to pdf Item data sheet.
| l2 | 15 |
| L# | 8J |
| l | 38 |
| d5 | 46 |
| C# | 300Nm |
| d1 | 32 |
| d3 | 44 |
| L | 44 |
| d2 | 26.5 |
| MFR Part No. | VDN.125 FP-A14 |
| B | 15 |
| D | 125 |
| d(H7) | 14 |
| Diameter | 125mm |
| d4 | 70 |
| Weight | 355g |
