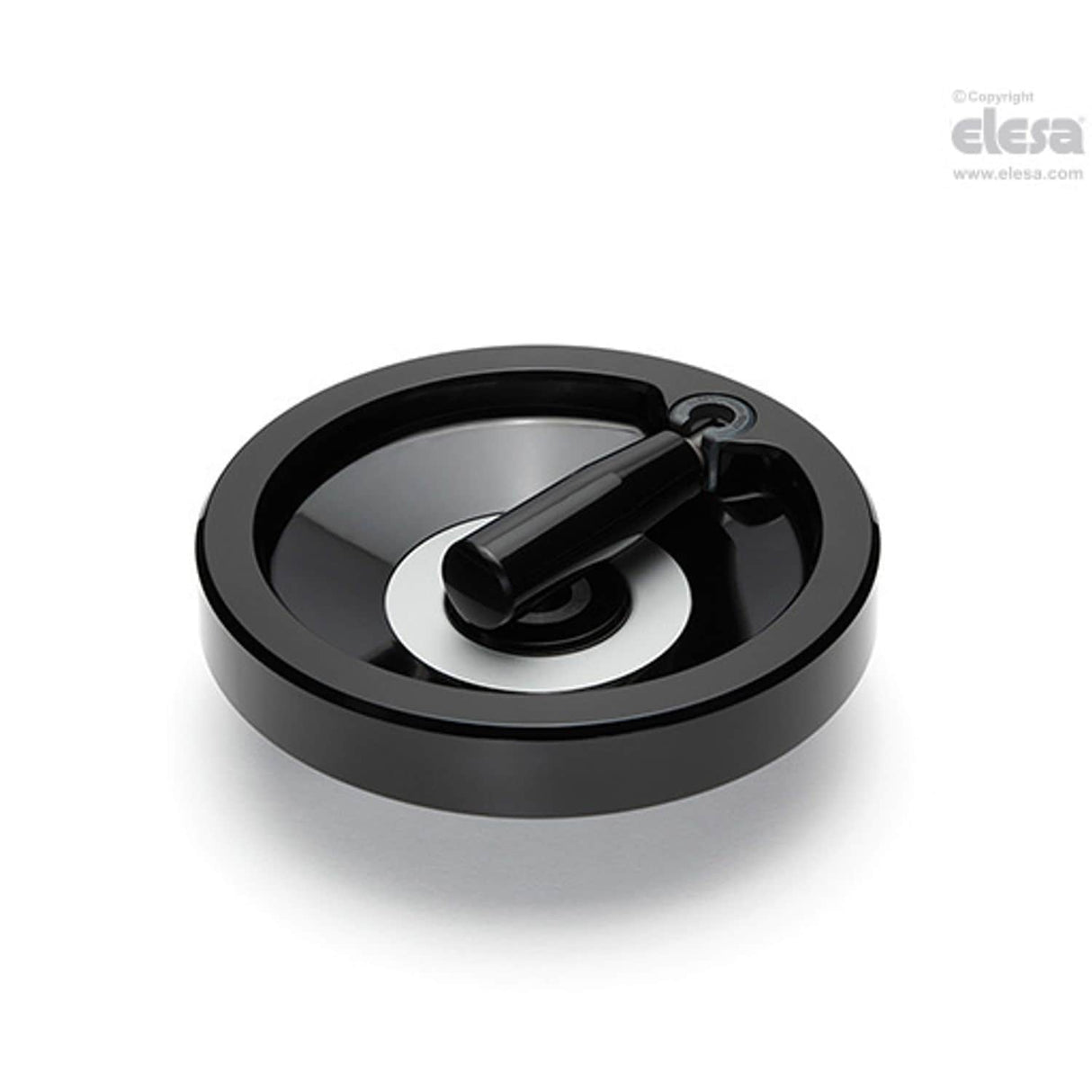

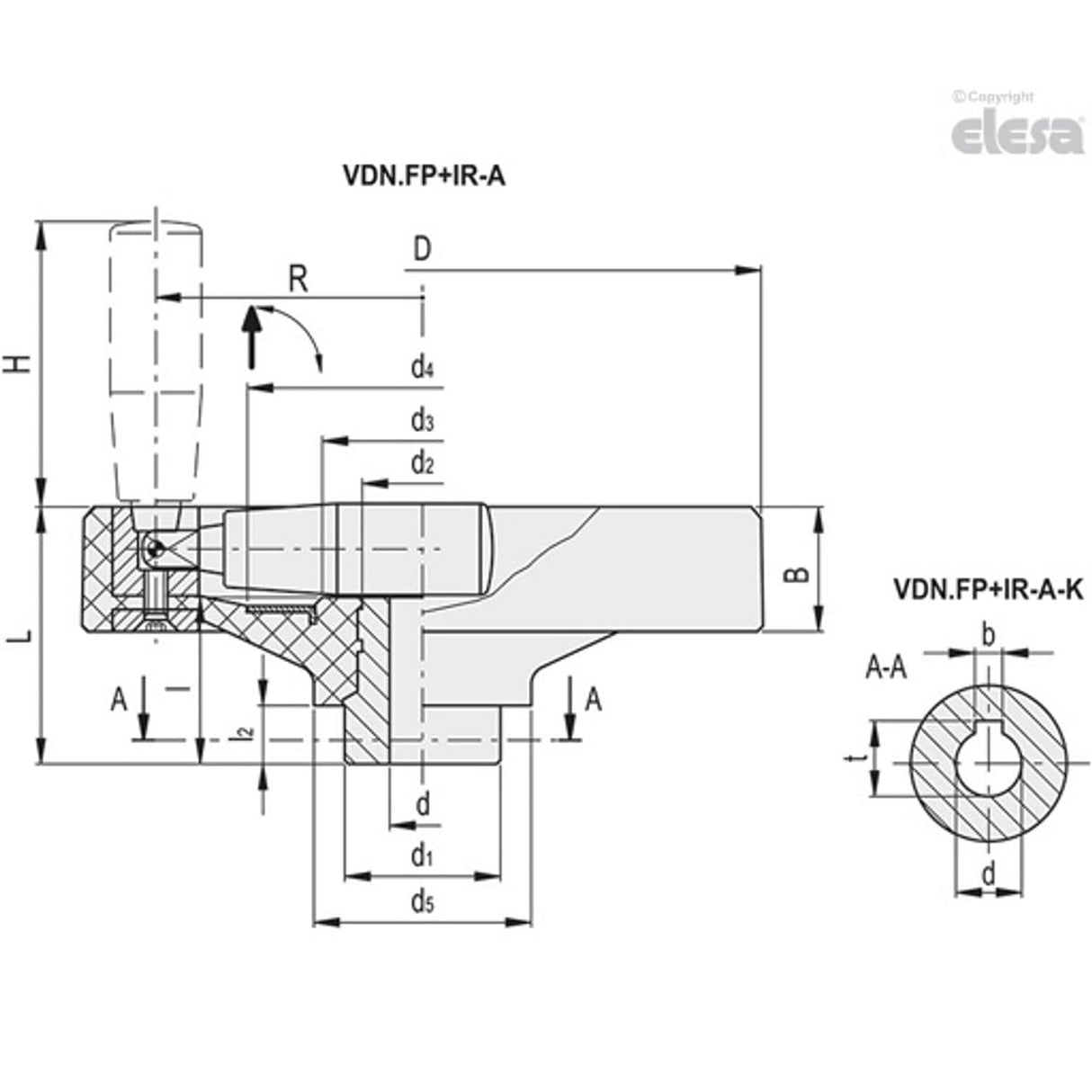

VDN.FP Solid handwheels, Duroplast, steel hub, Fold-away handle, drilled hub For product drawing and dimensions refer to pdf Item data sheet.
| d5 | 48 |
| D | 150 |
| d1 | 32 |
| t | 16.3 |
| d3 | 50 |
| L# | 14J |
| Diameter | 150mm |
| l | 38 |
| l2 | 15 |
| B | 30 |
| d2 | 26.5 |
| R | 57 |
| C# | 400Nm |
| b | 5 |
| H | 65 |
| L | 61 |
| d(H9) | 14 |
| d4 | 80 |
| MFR Part No. | VDN.150 FP+IR-A14-K |
| Weight | 695g |
