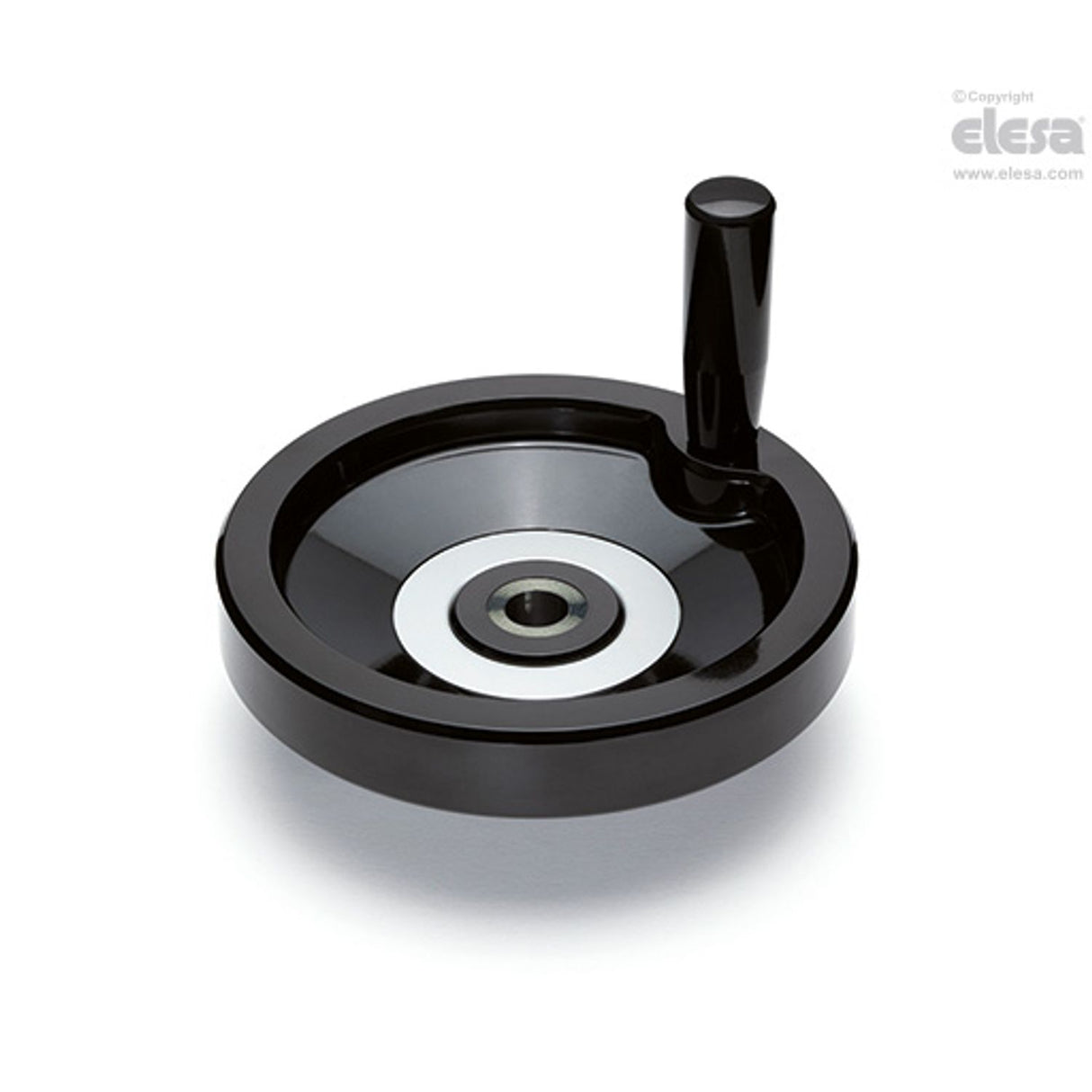

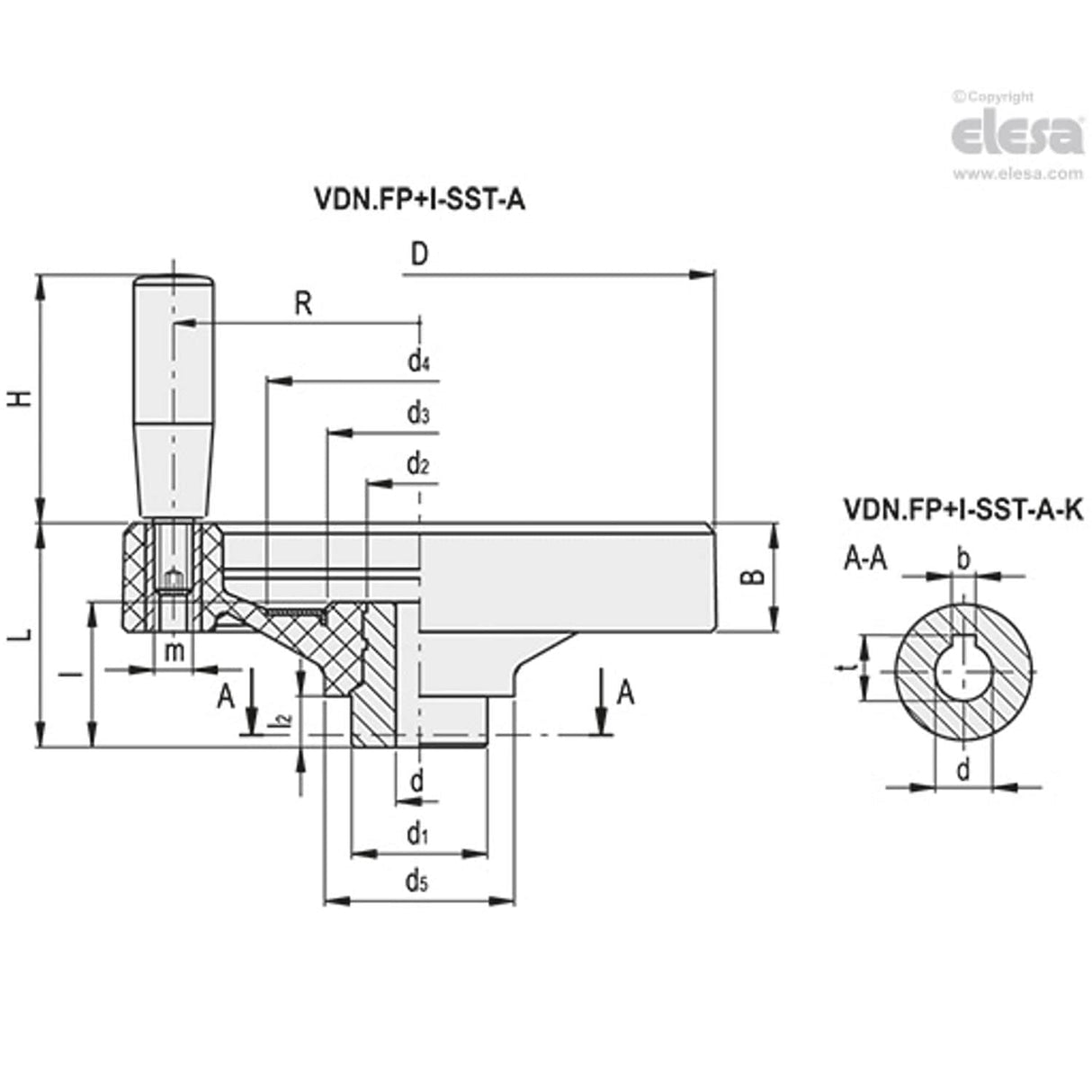

VDN.FP-SST Solid handwheels, Duroplast, stainless steel hub, Revolving handle, drilled hub For product drawing and dimensions refer to pdf Item data sheet.
| d(H9) | 16 |
| D | 150 |
| d4 | 80 |
| d3 | 50 |
| l2 | 15 |
| d2 | 26.5 |
| H | 65 |
| Diameter | 150mm |
| C# | 400Nm |
| d5 | 48 |
| Weight | 343g |
| B | 30 |
| t | 18.3 |
| MFR Part No. | VDN.150 FP+I-SST-A16-K |
| L# | 14J |
| L | 61 |
| m | M8 |
| d1 | 32 |
| l | 38 |
| R | 62 |
| b | 5 |
