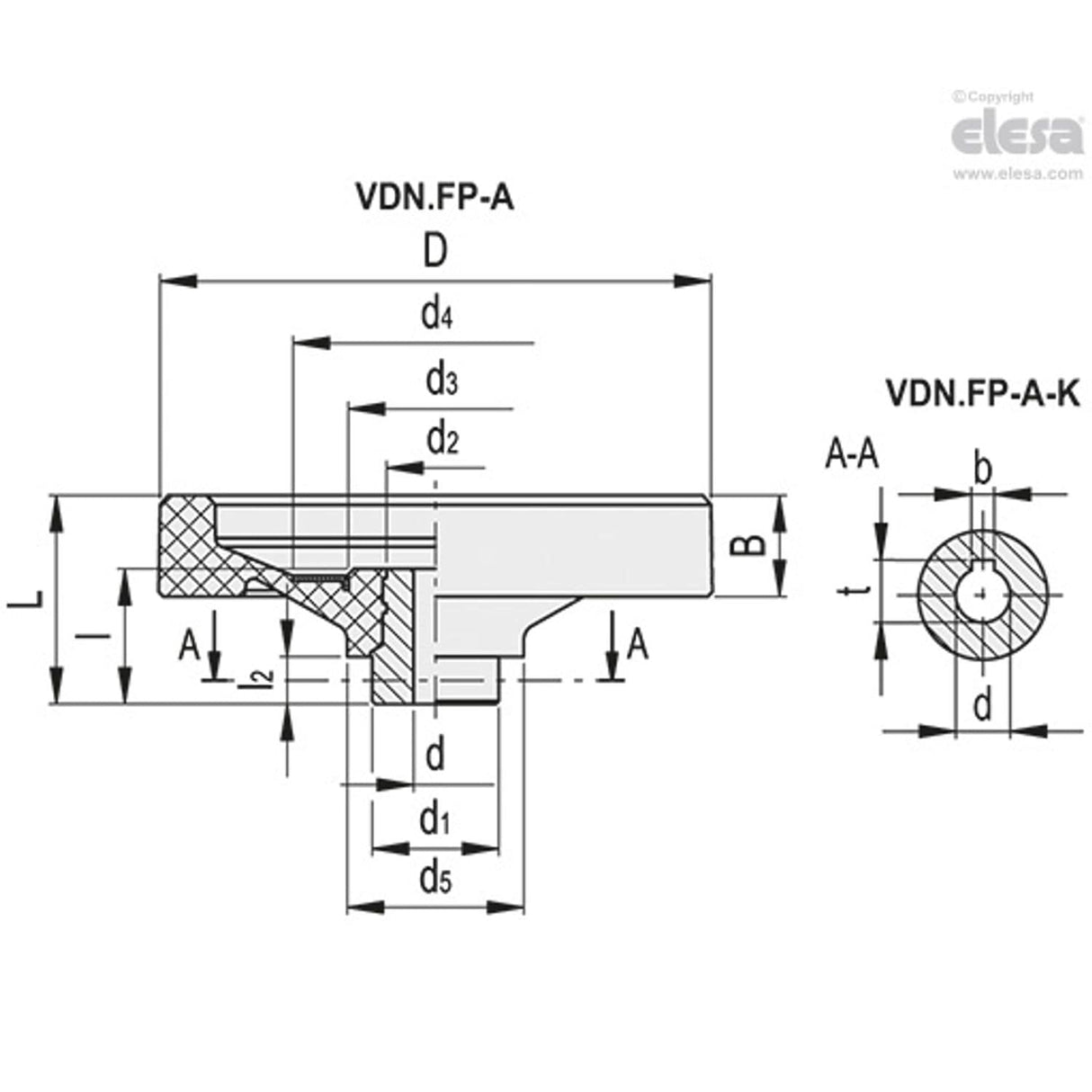

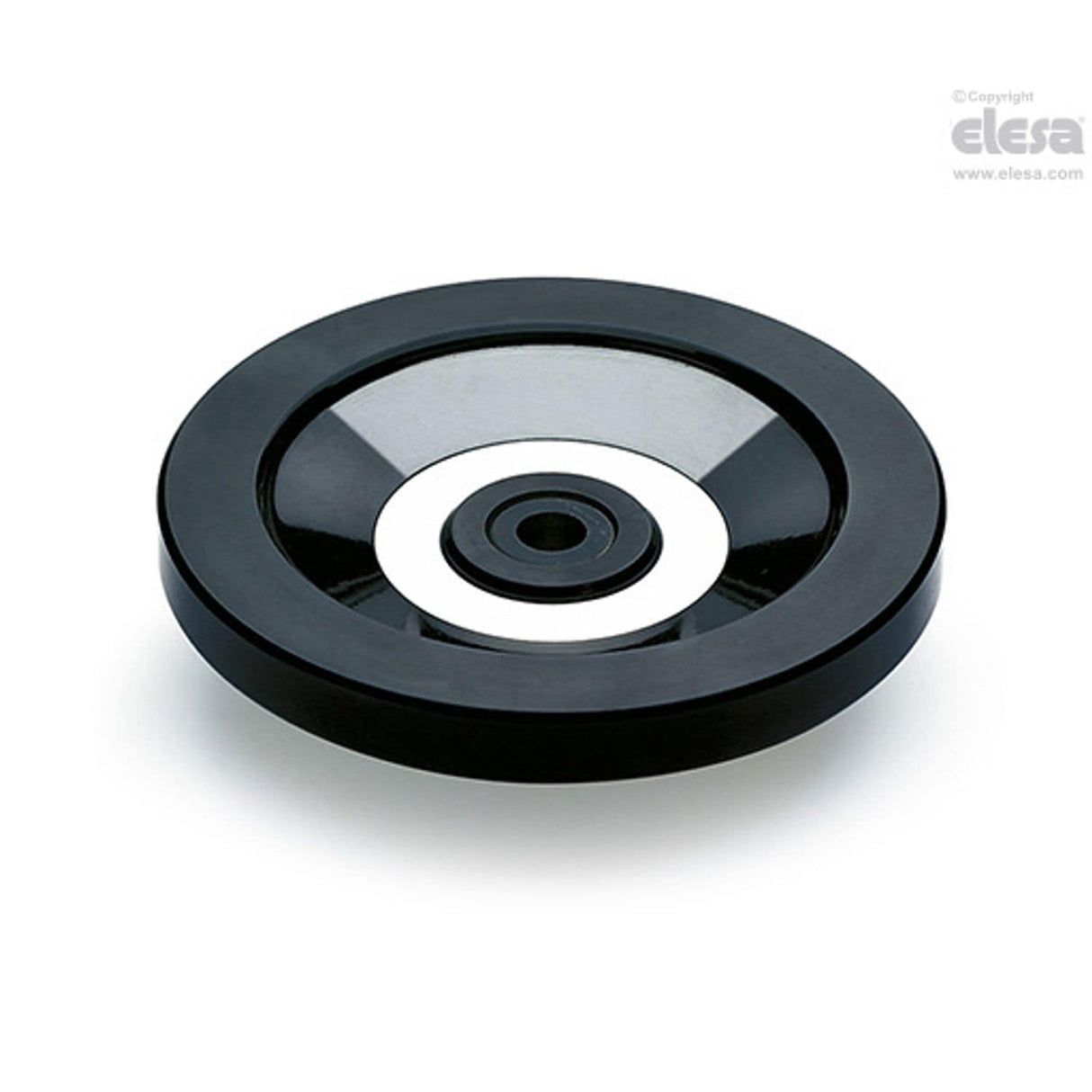

VDN.FP Solid handwheels, Duroplast, steel hub, Without handle, drilled hub For product drawing and dimensions refer to pdf Item data sheet.
| d5 | 56 |
| L# | 16J |
| Diameter | 175mm |
| MFR Part No. | VDN.175 FP-A18 |
| D | 175 |
| d2 | 33 |
| d4 | 90 |
| Weight | 776g |
| C# | 500Nm |
| l2 | 15 |
| d3 | 55 |
| d1 | 40 |
| B | 19 |
| l | 43 |
| d(H7) | 18 |
| L | 54 |
