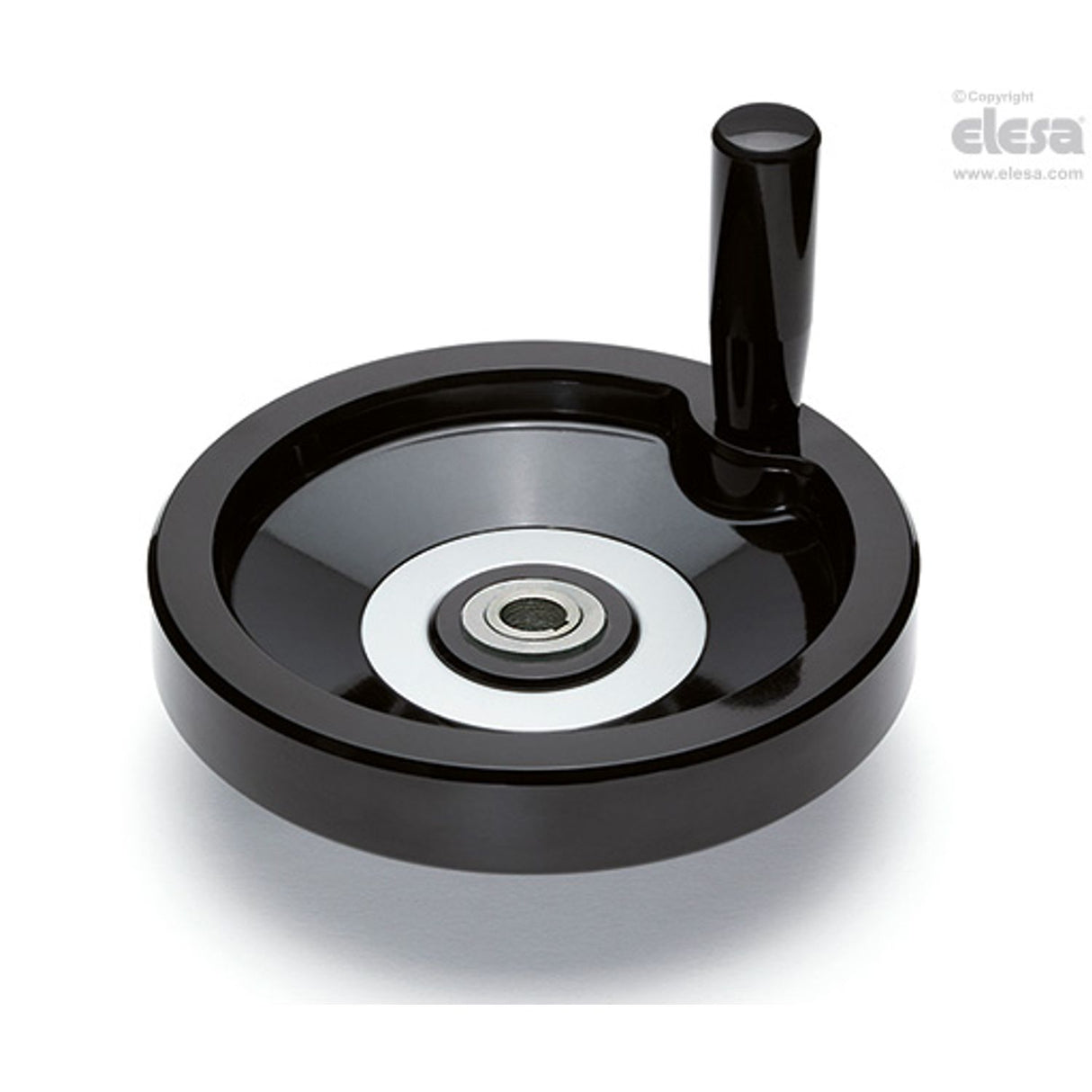

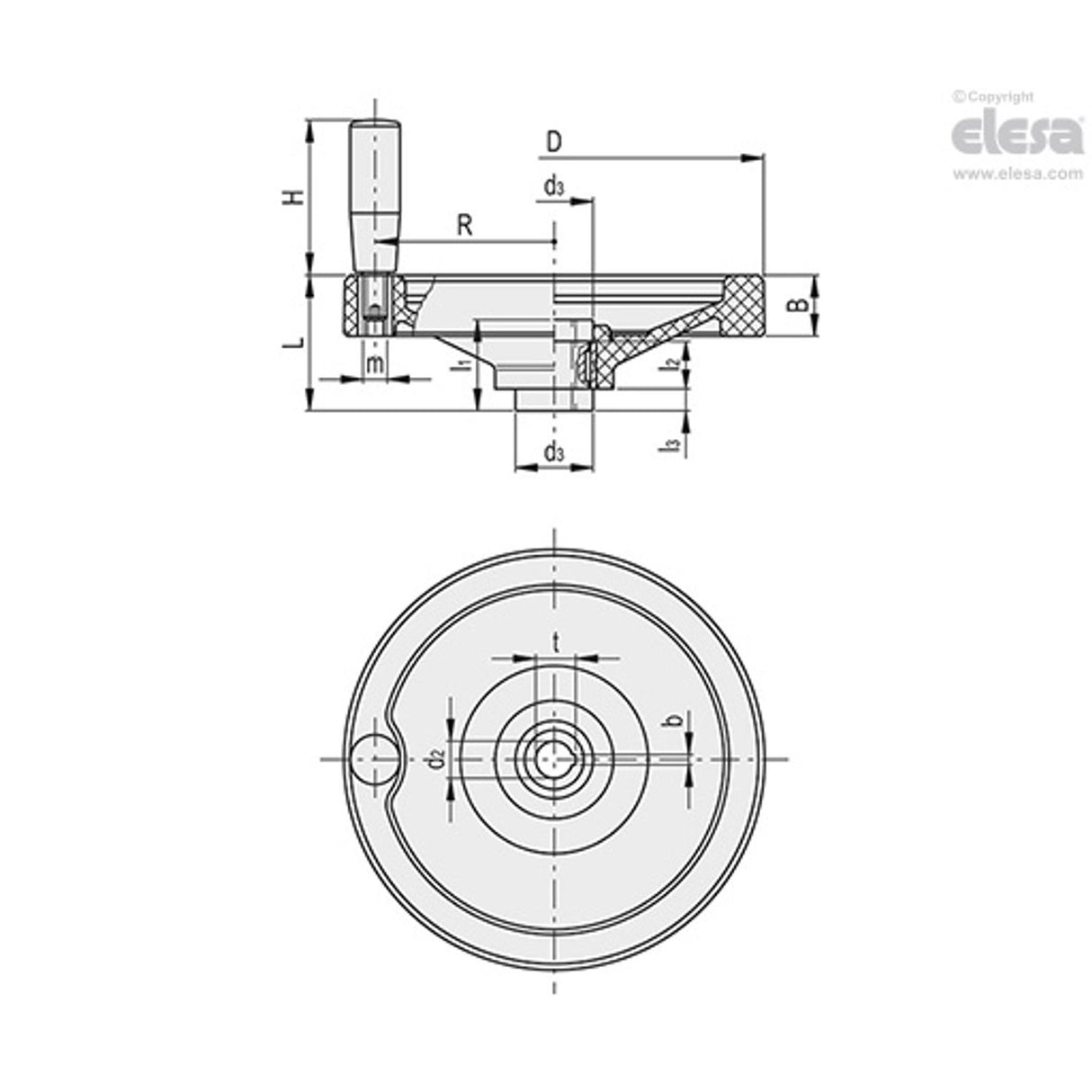

VDN.FP+I+ST Safety solid handwheels, Duroplast For product drawing and dimensions refer to pdf Item data sheet.
| MFR Part No. | VDN.175 FP+I+ST14 |
| w min | 4 |
| l3 | 14 |
| d3 | 33 |
| H | 80 |
| l1 | 48 |
| D | 175 |
| m | M10 |
| B | 32 |
| b | 5 |
| Weight | 918g |
| d4 max | 21 |
| L | 69 |
| d2 H7 | 14 |
| R | 72.5 |
| Diameter | 175mm |
| d6 | 29 -0.05 |
| t | 15.3 |
