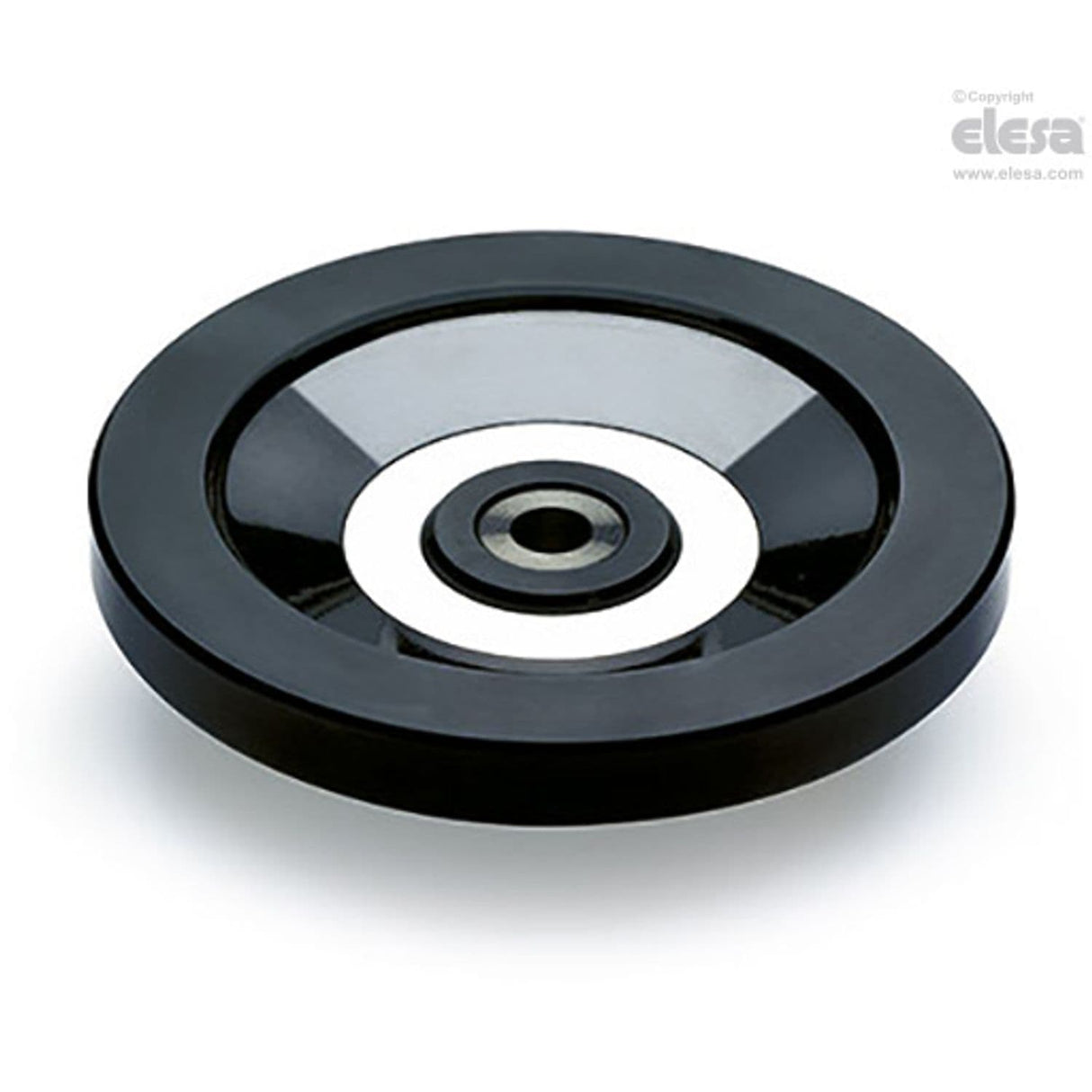

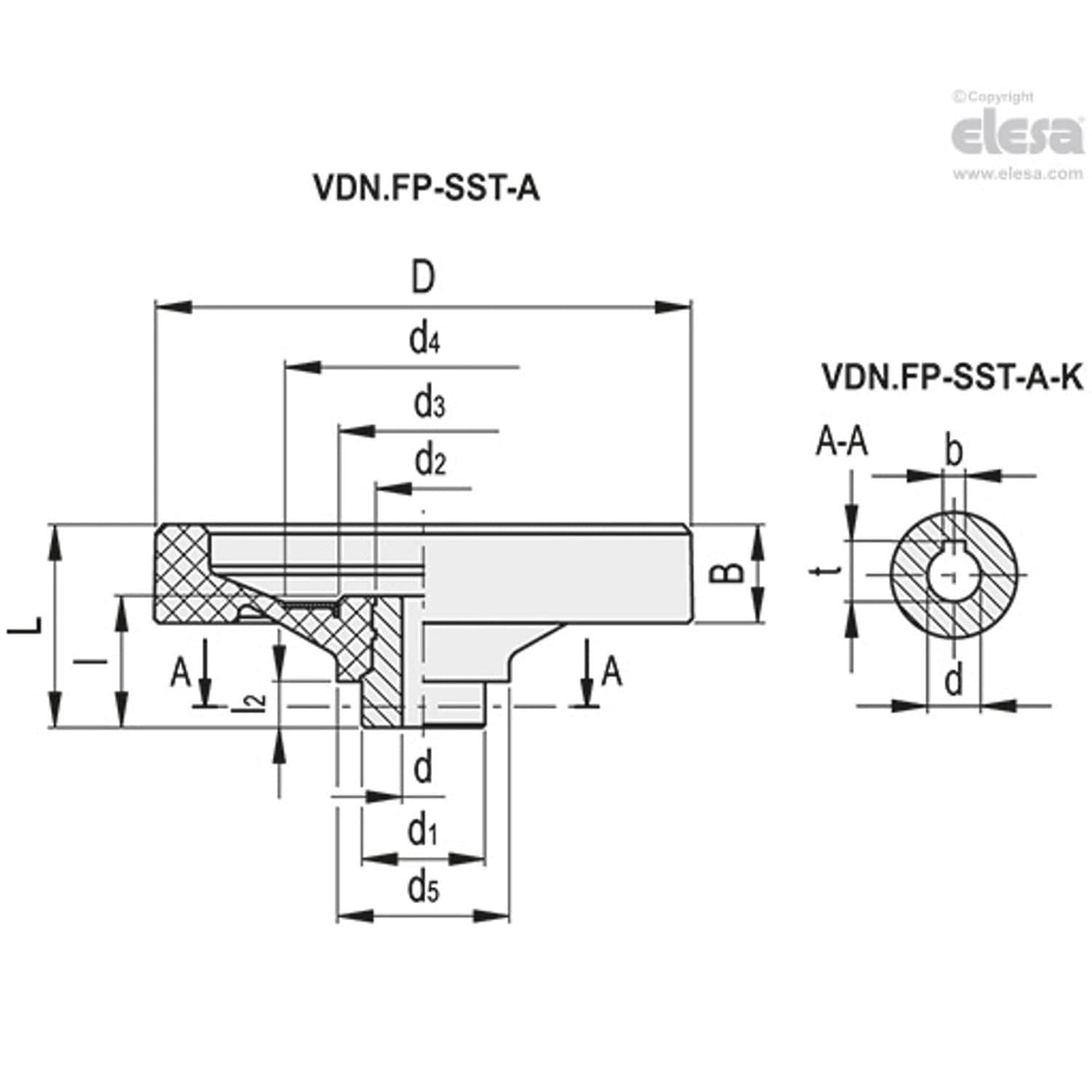

VDN.FP-SST Solid handwheels, Duroplast, stainless steel hub, Without handle, drilled hub For product drawing and dimensions refer to pdf Item data sheet.
| MFR Part No. | VDN.200 FP-SST-A18 |
| Weight | 989g |
| d5 | 60 |
| d2 | 33 |
| D | 200 |
| d4 | 90 |
| L# | 18J |
| Diameter | 200mm |
| b | 6 |
| t | 24.8 |
| d1 | 40 |
| l | 43 |
| L | 58 |
| C# | 600Nm |
| d3 | 55 |
| l2 | 15 |
| B | 22 |
| d(H7) | 18 |
