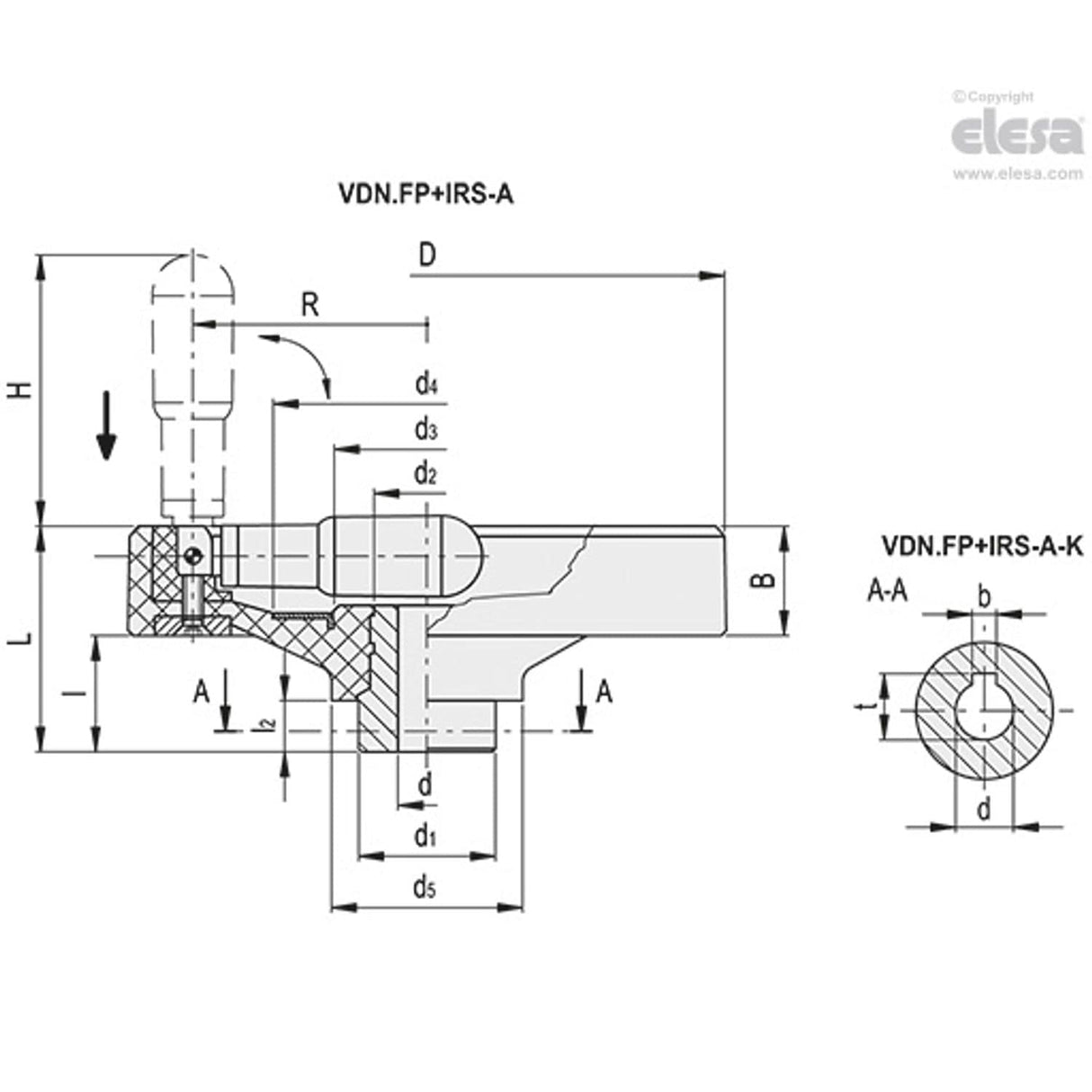

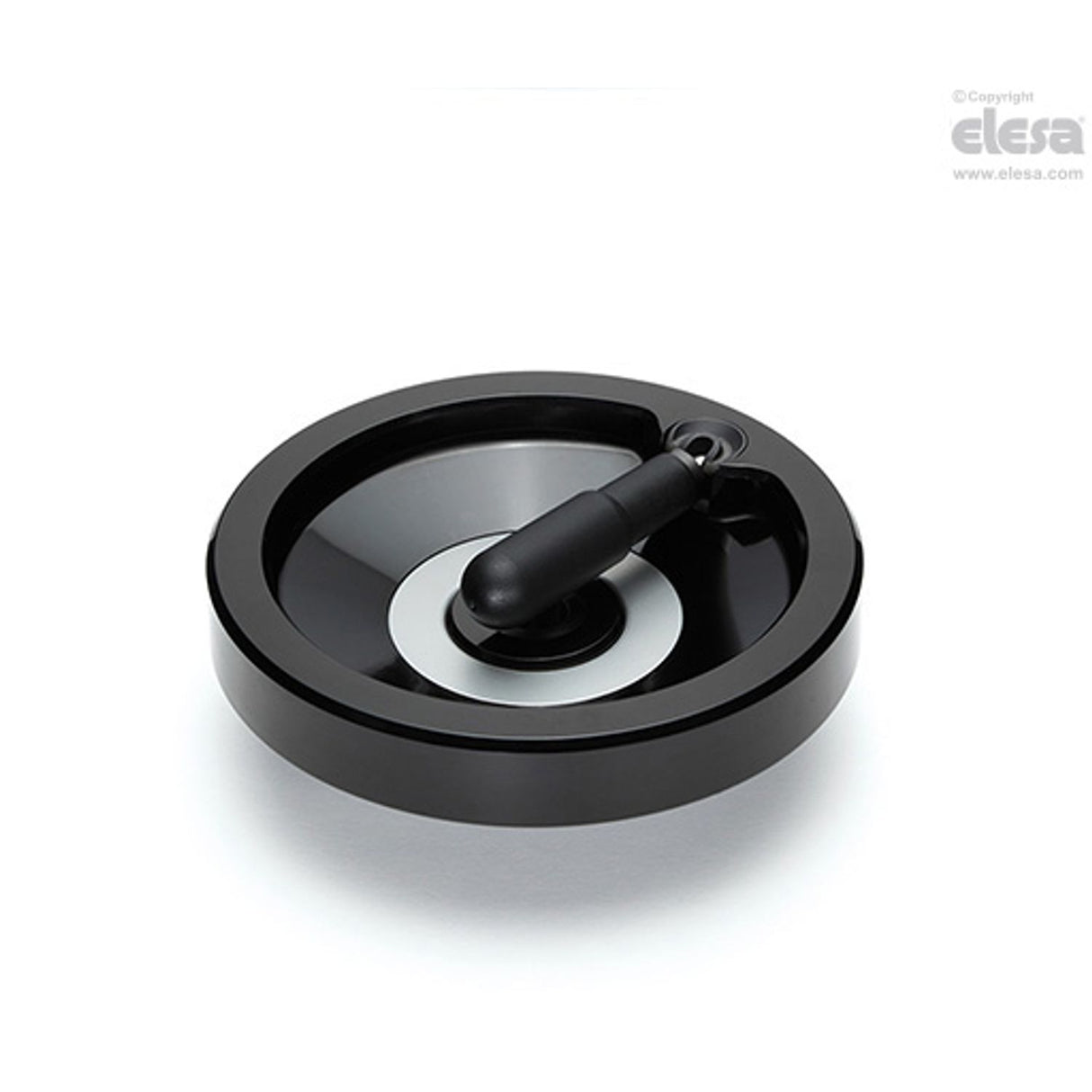

VDN.FP Solid handwheels, Duroplast, steel hub, Safety fold-away handle, drilled hub For product drawing and dimensions refer to pdf Item data sheet.
| MFR Part No. | VDN.225 FP+IRS-A20-K |
| d5 | 66 |
| L# | 25J |
| d3 | 66 |
| d2 | 40 |
| B | 33 |
| C# | 900Nm |
| L | 71 |
| d(H9) | 20 |
| l2 | 15 |
| D | 225 |
| Diameter | 225mm |
| b | 6 |
| l | 44.5 |
| t | 22.8 |
| H | 90 |
| R | 86 |
| d1 | 49 |
| Weight | 1680g |
| d4 | 110 |
