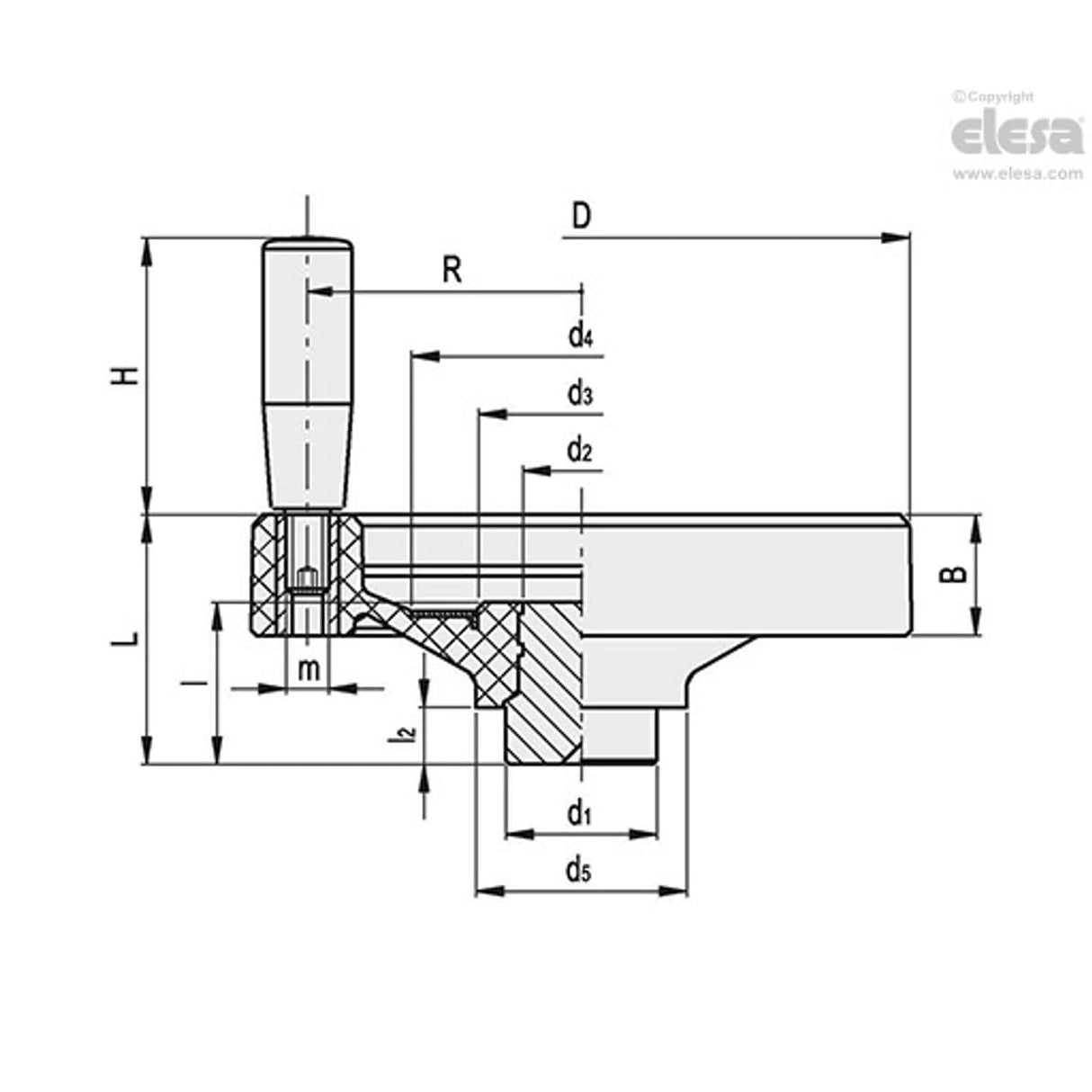

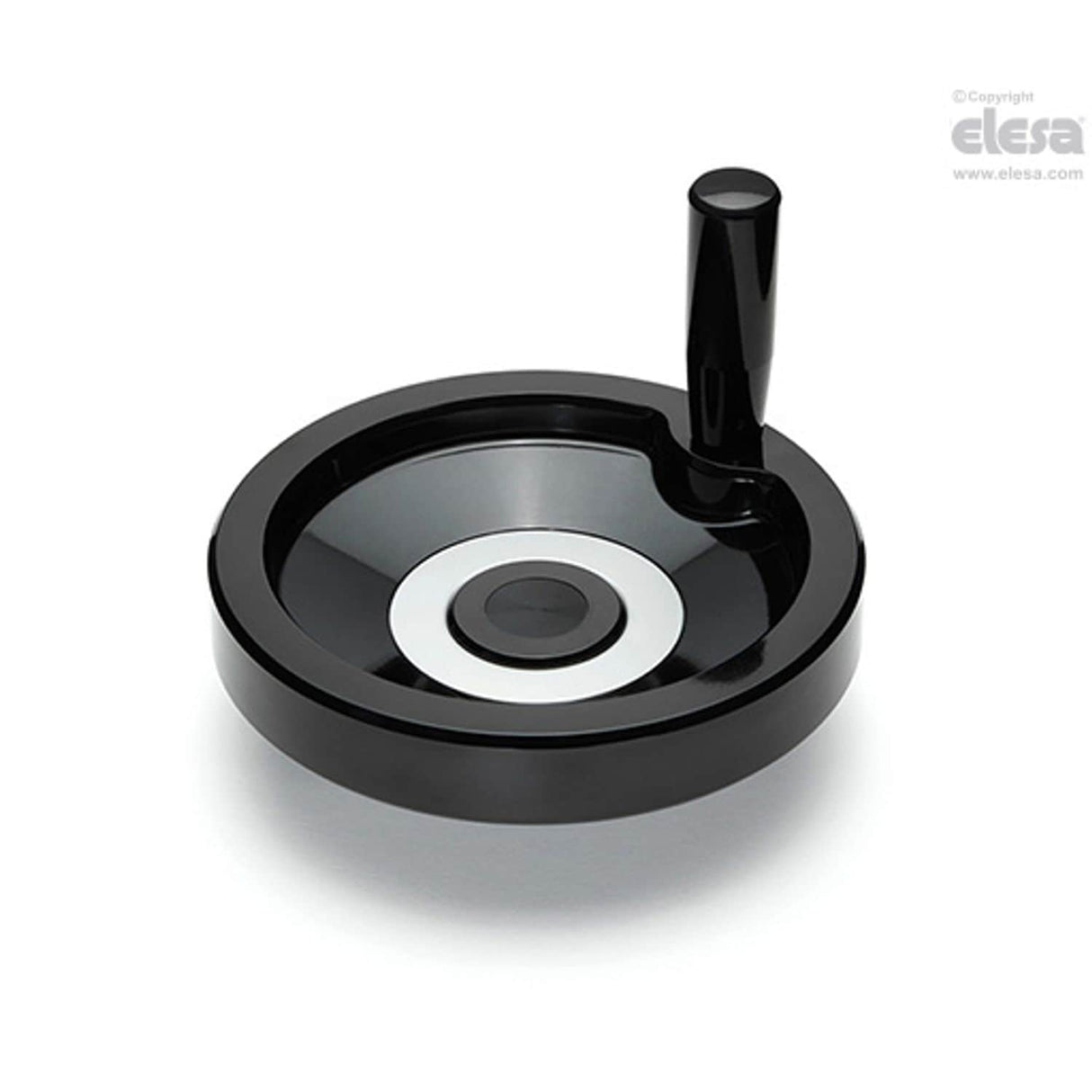

VDN.FP Solid handwheels, Duroplast, steel hub, Revolving handle, solid hub For product drawing and dimensions refer to pdf Item data sheet.
| MFR Part No. | VDN.250 FP+I |
| H | 90 |
| d1 | 49 |
| d3 | 66 |
| d4 | 110 |
| L | 76 |
| L# | 28J |
| d2 | 40 |
| d5 | 70 |
| D | 249 |
| m | M10 |
| R | 106 |
| l | 44.5 |
| Weight | 2128g |
| Diameter | 249mm |
| C# | 1000Nm |
| B | 36 |
| l2 | 15 |
