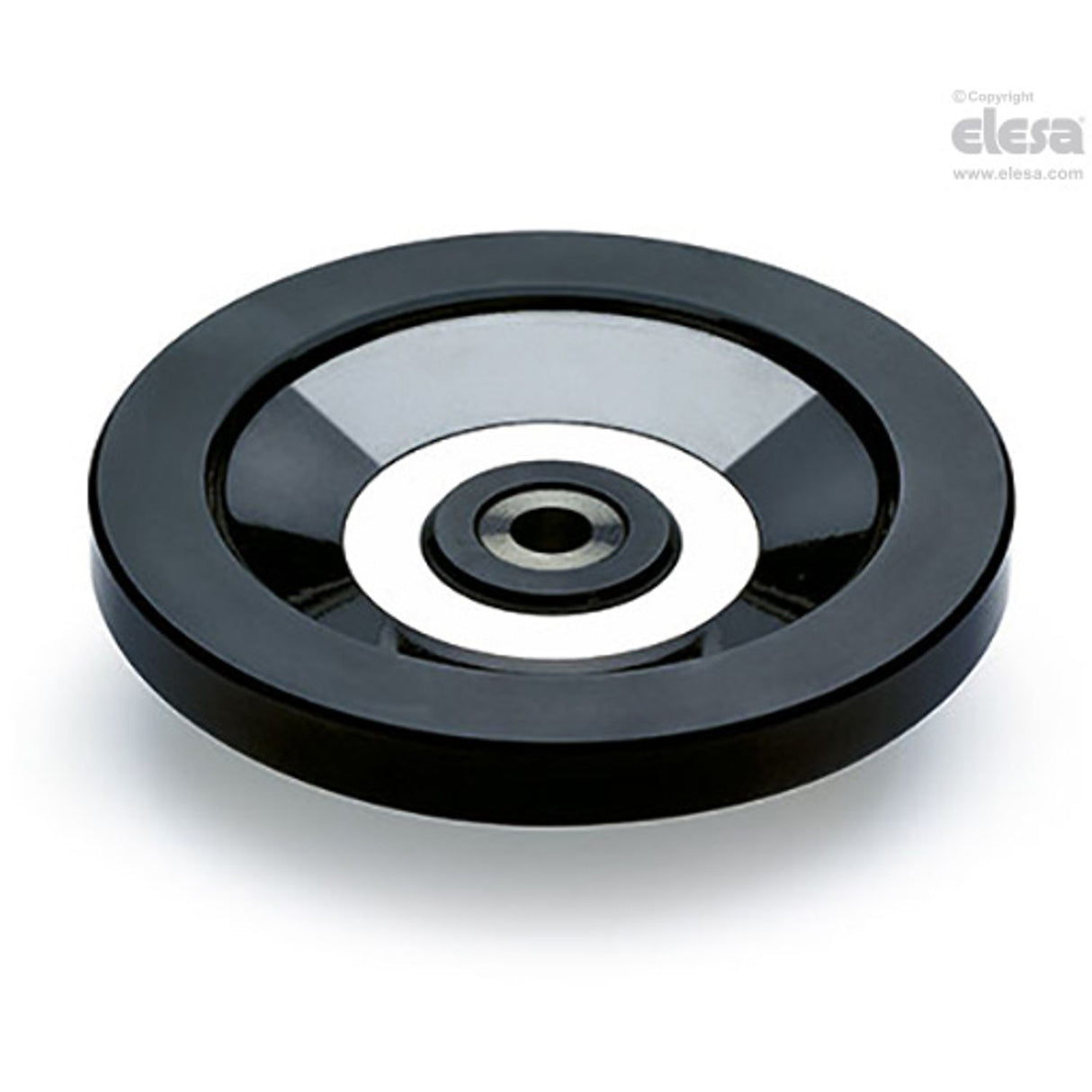

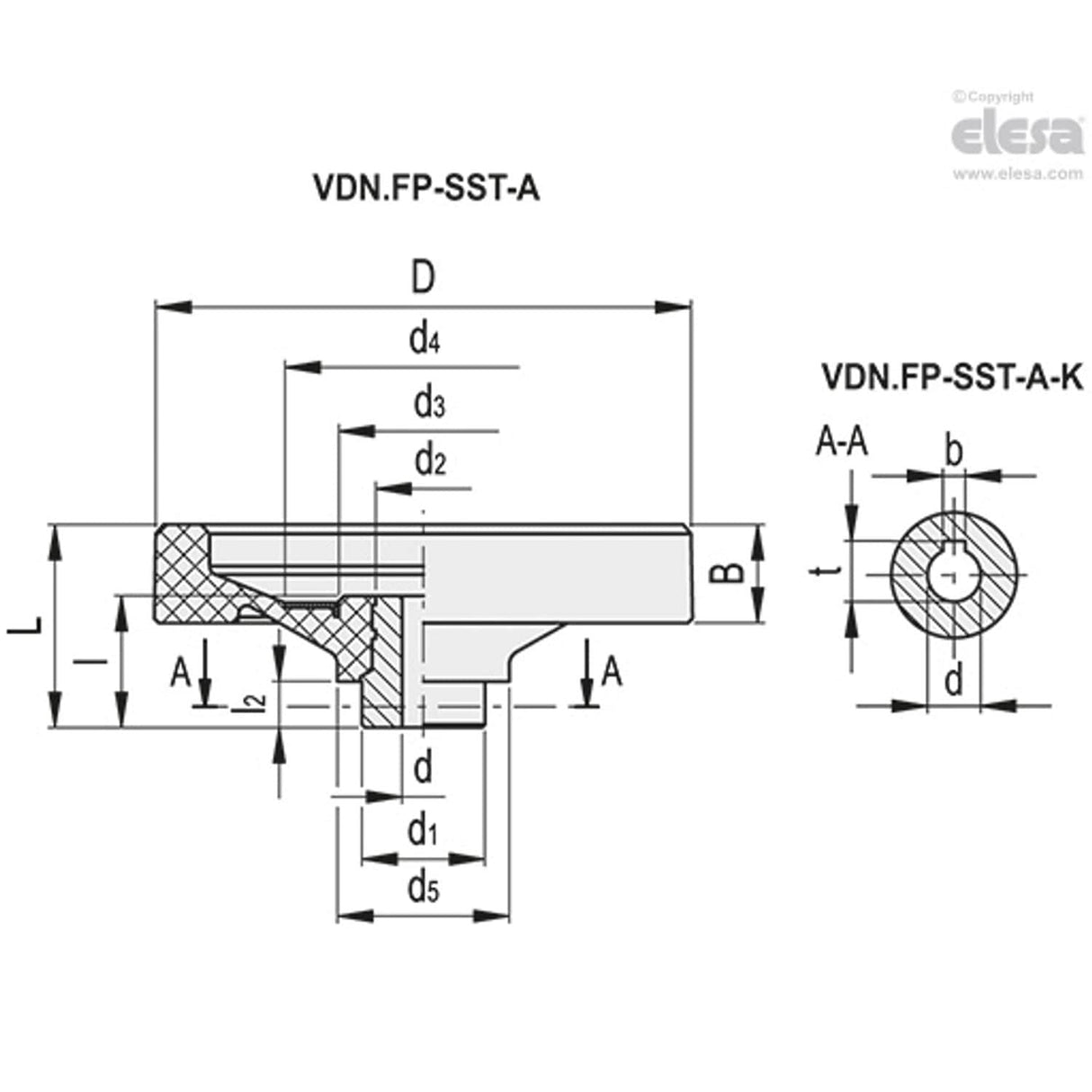

VDN.FP-SST Solid handwheels, Duroplast, stainless steel hub, Without handle, drilled hub For product drawing and dimensions refer to pdf Item data sheet.
| d2 | 40 |
| d5 | 70 |
| Weight | 1560g |
| D | 249 |
| Diameter | 249mm |
| L | 65 |
| d1 | 49 |
| l2 | 15 |
| d(H9) | 22 |
| B | 25 |
| l | 44 |
| b | 6 |
| d4 | 110 |
| t | 24.8 |
| C# | 1000Nm |
| d3 | 66 |
| L# | 28J |
| MFR Part No. | VDN.250 FP-SST-A22-K |
