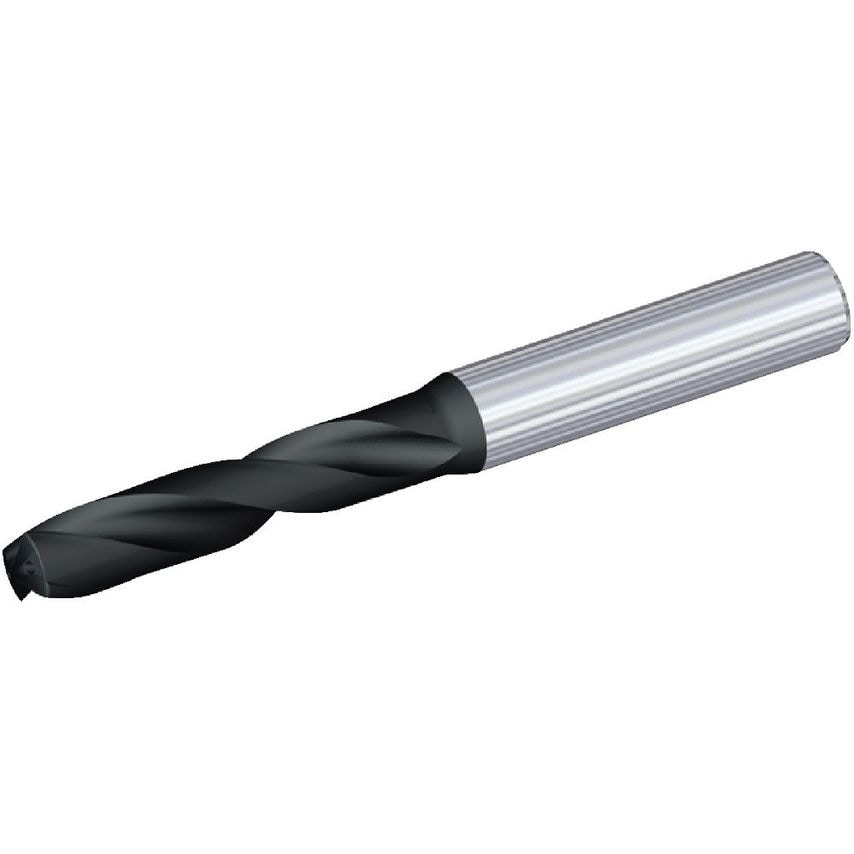

Y-TECH Drills Difficult-to-Machine Materials Through CoolantHigh-Performance Solid Carbide Drills
| Assembly Length | 97.91mm |
| Helix Type | Right Hand Helix/Flute |
| Adapter Style | Straight-Cylindrical |
| MFR Part No. | 3640797 |
| Coolant Diameter | 2.2400mm (0.0409in) |
| Clamping Length | 48mm |
| Drill Diameter | 16.5000mm |
| Helix Angle | 27.401 |
| Unit Measured | Metric |
| Drill Diameter Tolerance | 0.007000 to 0.025000mm |
| Shank Length | 48.0000mm |
| Material | Carbide |
| Primary Material | Stainless Steel |
| Number of Flutes | 2 |
| Coolant Supplied | Yes |
| Overall Length | 143mm | 143.0000mm |
| Flute Construction | Helical Flute |
| Finish/Coating | AlTiN |
| Flute Length | 93mm | 93.0000mm |
| Adapter / Shank / Bore Diameter | 18.0000mm |
| Hand Preference | Right |
| Functional Length | 139.9100mm |
| Coolant Delivery | Concentric Axial Coolant;Off-center Axial Coolant |
| Adapter Type | Cylindrical |
| Drill Point | 3.09mm |
| Drill Depth | 71mm | 71.0000mm |
