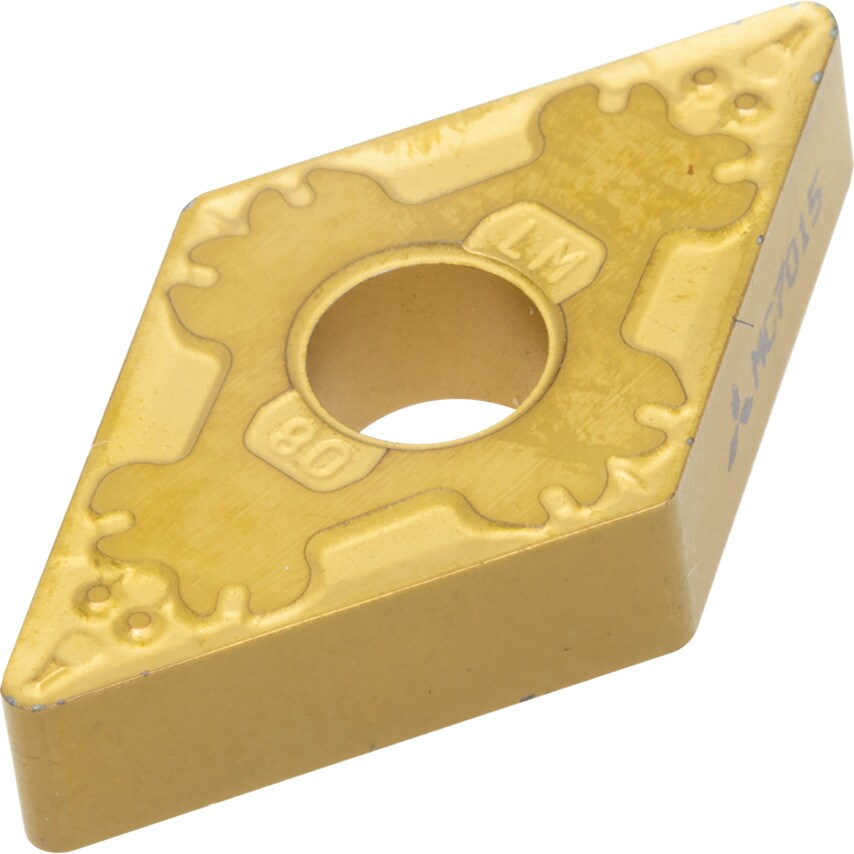

DNMG Turning Inserts
55 Rhombic Insert
MC7015 - ISO M05 - M15 CVD coated grade for high efficiency turning of austenitic stainless steels. Excellent wear resistance in high speed cutting conditions. TiCN and micro grain Al2O3 coating delivers balanced wear and chipping resistance. Specially engineered carbide substrate provides excellent resistance to plastic deformation. Specifically designed for 300 series stainless steel applications.
| Manufacturer Grade | MC7015 |
| ISO Designation | DNMG 150408-LM |
| Cutting Edge Length | 15mm |
| Insert Style | DNMG |
| ISO Category Grade | M |
| Chipbreaker | LM |
| Cutting Direction | Neutral |
| Shape | 55\u00b0 Rhombic |
| Pack Quantity | 1 |
| Product Type | Inserts |
| Finish/Coating | Al2O3+TiCN+TiC |
| Thickness | 4.76mm |
| Material Application | Stainless Steels |
| Insert Size | 150408 |
| Material | Carbide |
| ISO Category | M |
| Clearance Angle | 0\u00b0 |
| Corner Radius | 0.8 |
| ISO Cut | M05 to M15 |
| MFR Part No. | 90031478 |
| Inscribed Circle | 12.7mm |
