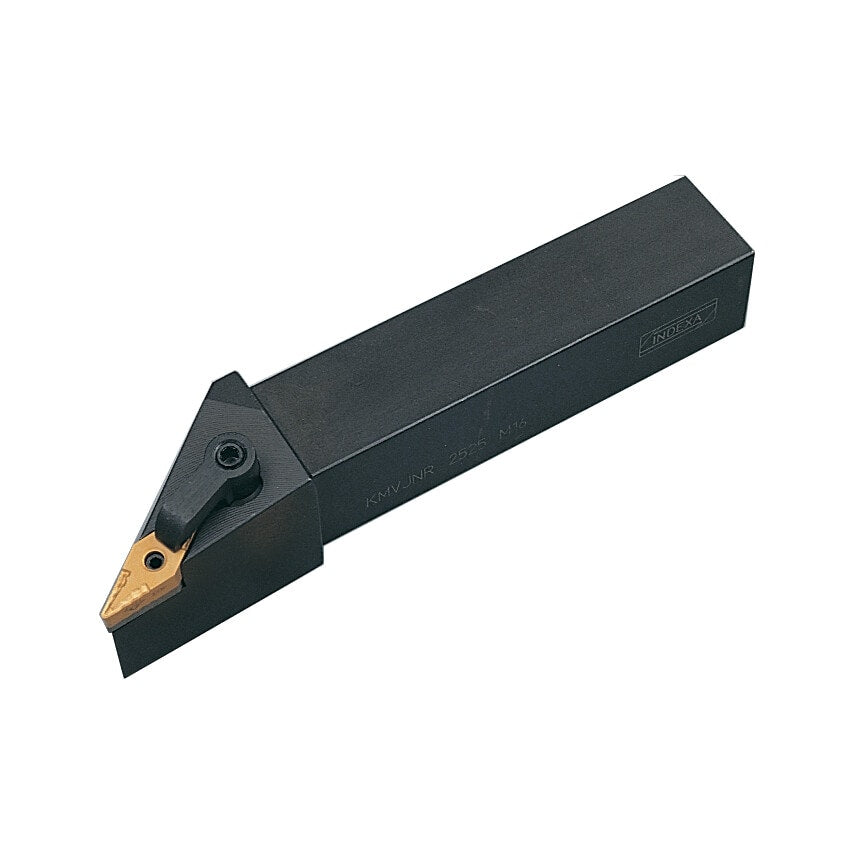

93 approach for negative 35 rhombic inserts.
| Toolholder Style | MVJN |
| Coolant Delivery | External |

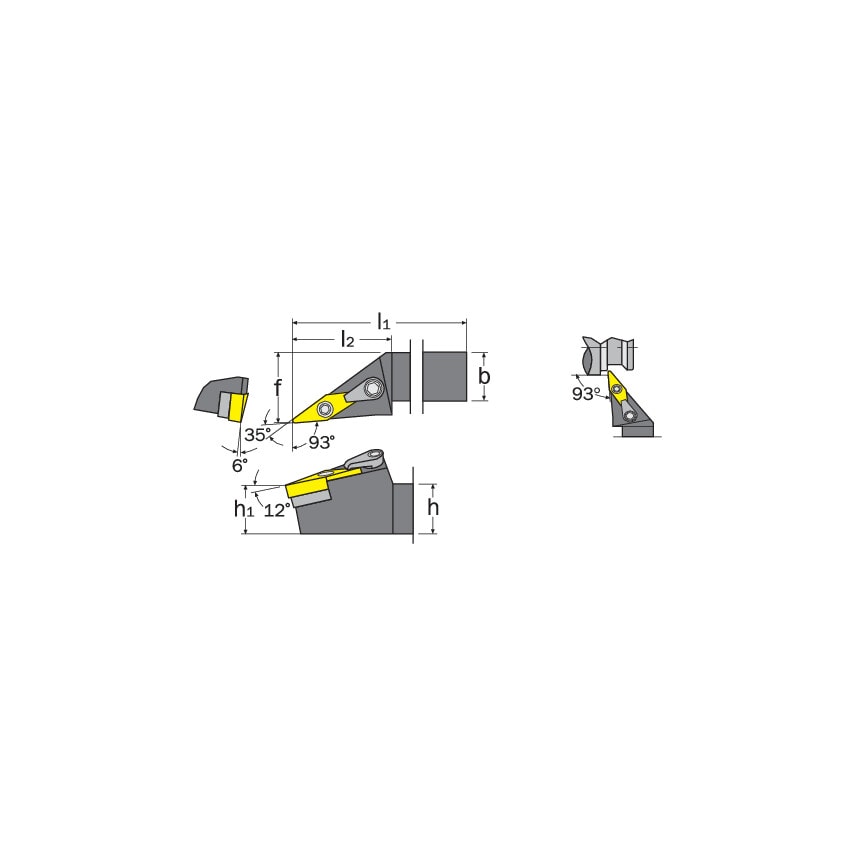

| Head Length (l2) | 37mm |
| Overall Length (l1) | 150mm |
| Cutting Direction | Right Hand |
| Shank Height (h) | 25mm |
| Shank Style | Offset |

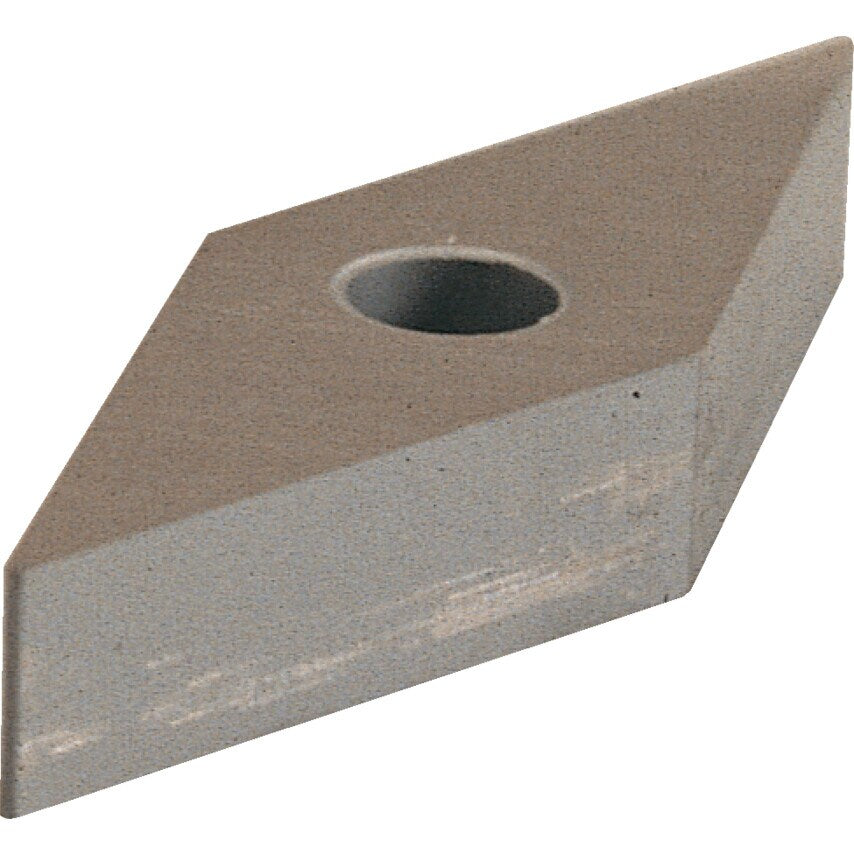

| Insert Shape | 35\u00b0 Rhombic\u00b0 |
| Insert Style | VN_A |
| Shank Material | Steel |
| Shank Width (b) | 25mm |
| MFR Part No. | MVJNR2525M16-K |
| Side to Cutting Tip (f) | 32mm |
| Approach Angle | 93\u00b0 |
| Clearance Angle | 0\u00b0 |
| ISO Designation | MVJNR 2525M16 |
| Insert Cutting Edge Length | 16mm |
| Insert Holding Type | Top Clamp & Pin Lock |
| Insert Inscribed Circle | 9.52mm |
| Insert Size | 1604 |
| Cutting Height (h1) | 20mm |
