93 approach.

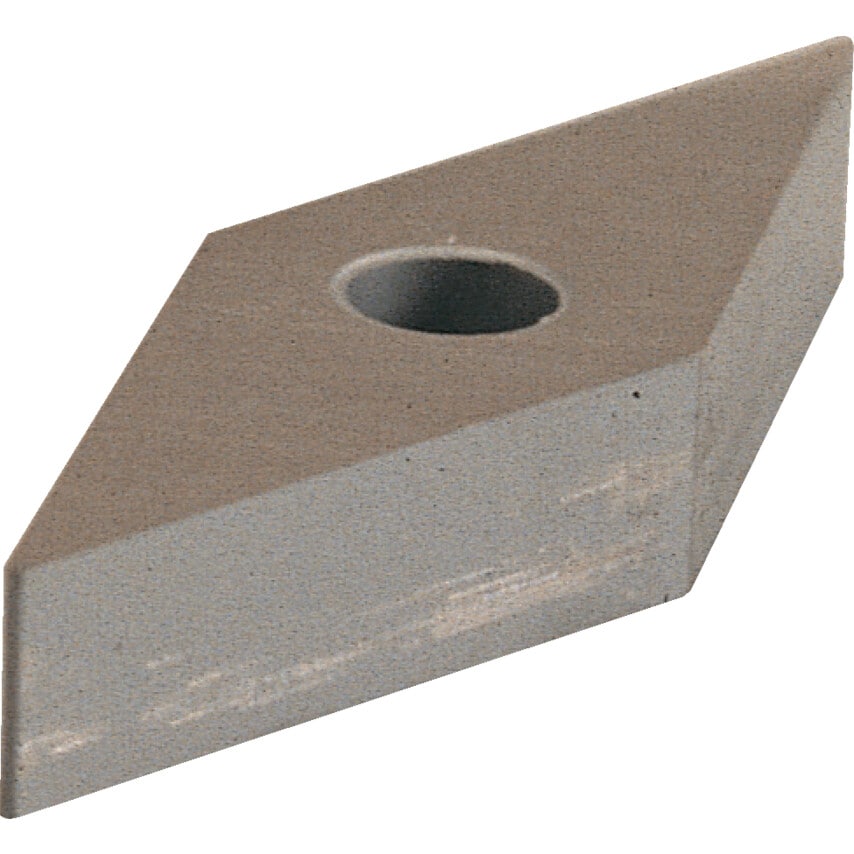

Uses VN_A and VN_G inserts.
Tool supplied complete with 10 Carbide inserts, in a choice of P Grade for steels and general use, or K Grade for cast iron and non-ferrous applications. Inserts supplied will vary according to availability.

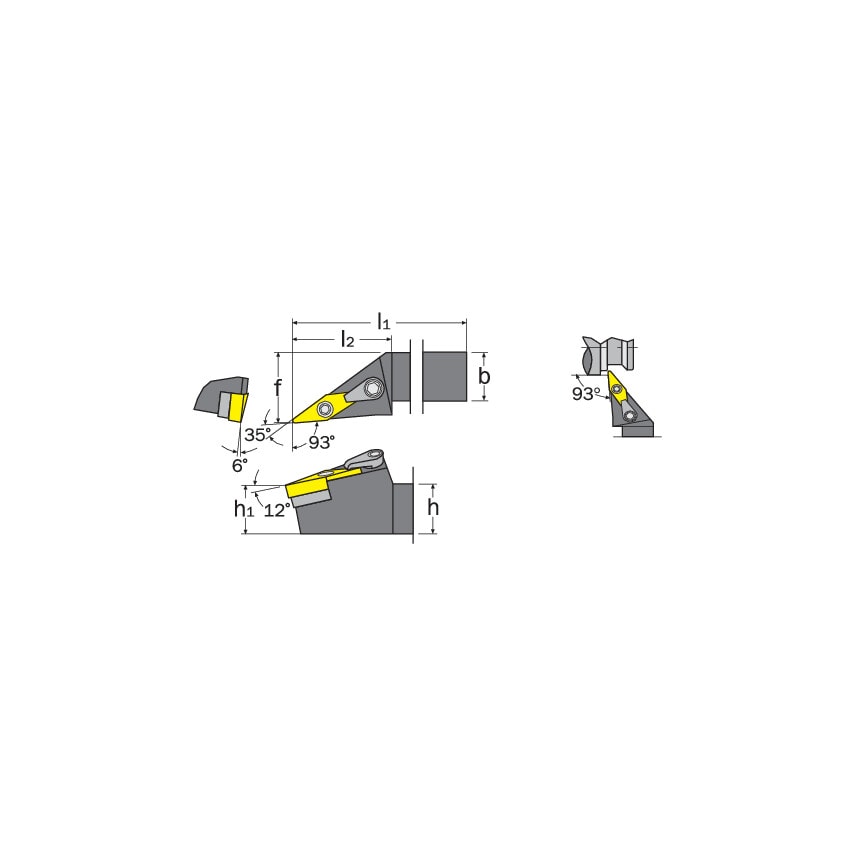

| MFR Part No. | MVJNR2020K16-K |
| Overall Length (l1) | 125mm |
| ISO Designation | MVJNR 2020K16 |

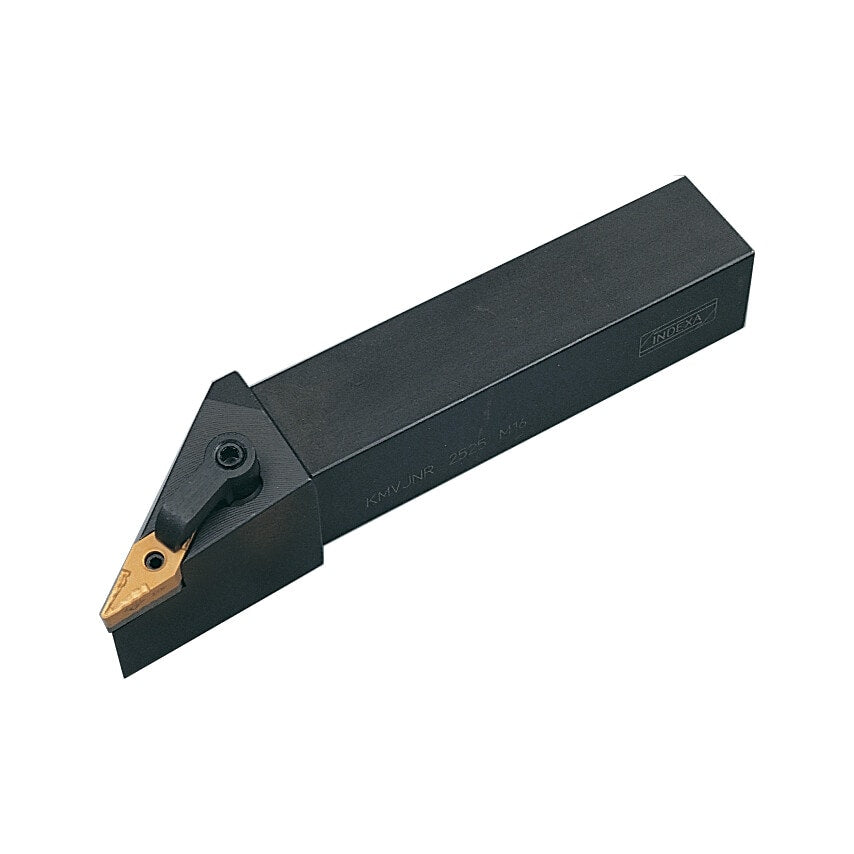

| Product Type | External Toolholder |
| Shank Style | Offset |
| Coolant Delivery | External |
| Insert Cutting Edge Length | 16.00mm |
| Approach Angle | 93\u00b0 |
| Insert Size | 1604 |
| Shank Width (b) | 20mm |
| Shank Material | Steel |
| Head Length (l2) | 37mm |
| Cutting Direction | Right Hand |
| Insert Style | VN_A | VN_G |
| Shank Height (h) | 20mm |
| Insert Holding Type | Top Clamp & Pin Lock |
| Clearance Angle | 0\u00b0 |
| Insert Inscribed Circle | 9.52mm |
| Insert Shape | 35\u00b0 Rhombic\u00b0 |
| Cutting Height (h1) | 20mm |
| Toolholder Style | MVJN |
| Side to Cutting Tip (f) | 25mm |
