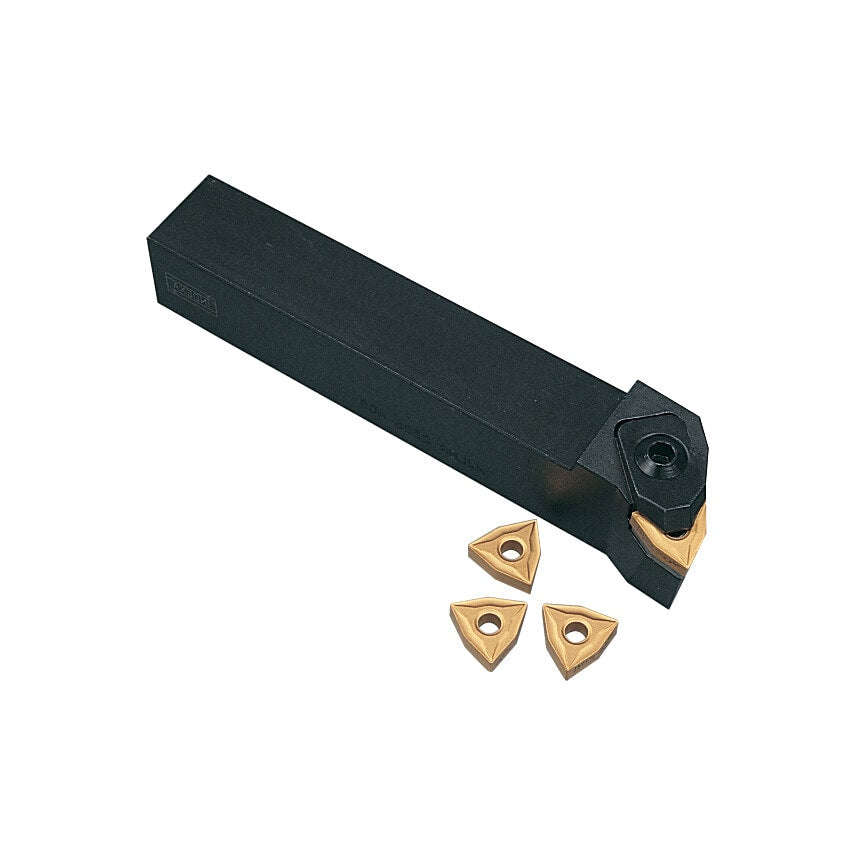

95 approach for negative 80 trigon inserts.
| Coolant Delivery | External |
| Cutting Height (h1) | 20mm |
| Insert Shape | Trigon |
| Insert Size | 804 |
| Toolholder Style | MWLN |
| Cutting Direction | Left Hand |
| Shank Width (b) | 20mm |
| Shank Height (h) | 20mm |
| Insert Inscribed Circle | 12.70mm |
| Insert Style | WN_A | WN_G | WN_M |
| Insert Cutting Edge Length | 8.00mm |
| Insert Holding Type | Top Clamp & Pin Lock |
| Side to Cutting Tip (f) | 25mm |
| Shank Style | Straight |
| Approach Angle | 95\u00b0 |
| Shank Material | Steel |
| MFR Part No. | MWLNL2020K08 |
| ISO Designation | MWLNL 2020K08 |
| Head Length (l2) | 34mm |
| Clearance Angle | 0\u00b0 |
| Overall Length (l1) | 125mm |
